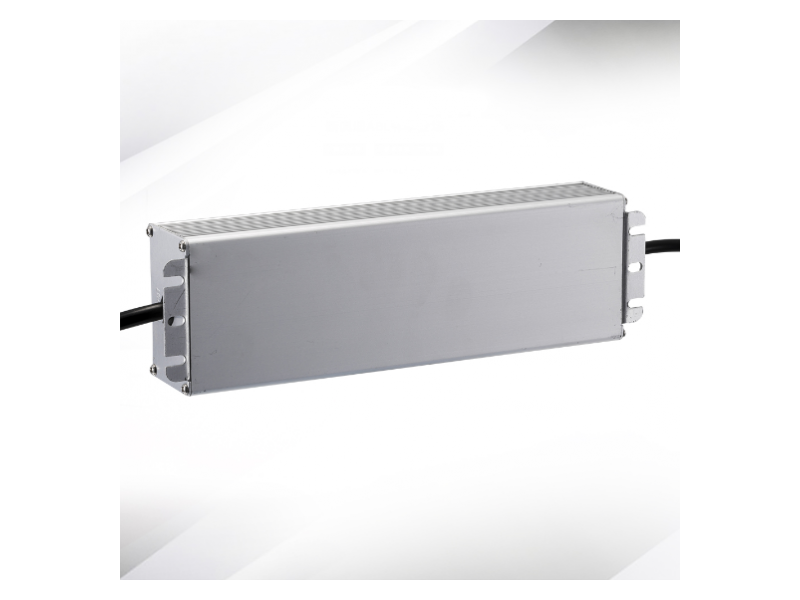

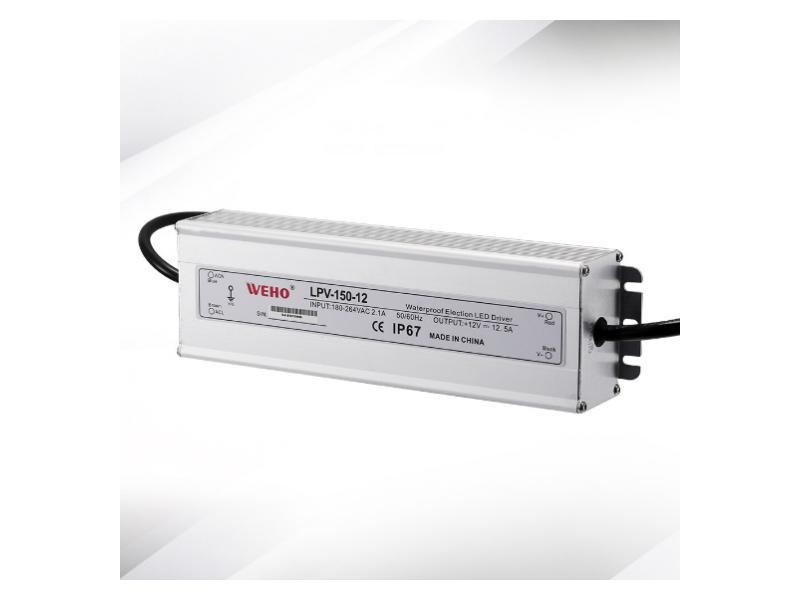

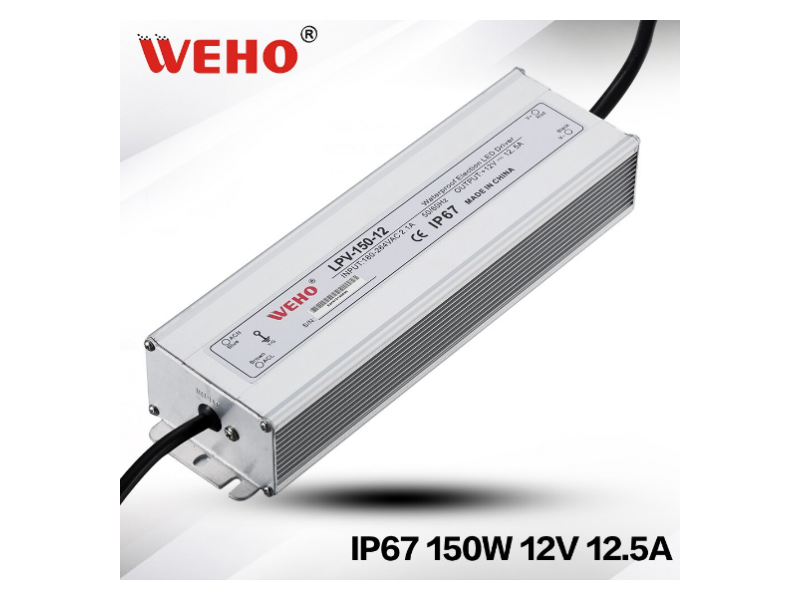

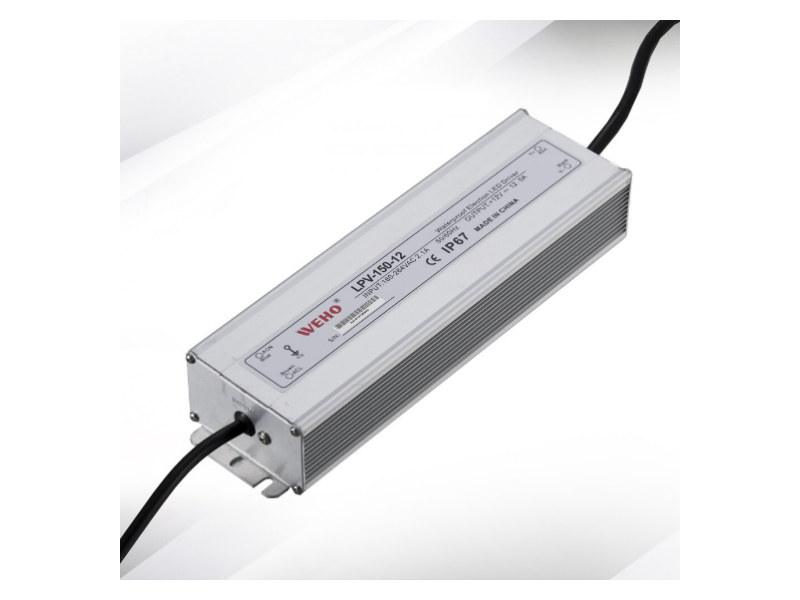

WEHO LPV-150-12

LED napajanje LPV-150-12 , izlazne snage 150W, izlazni napon 12 V u IP67 izvedbi Odlike : Stabilisan napon Ulazni naponski nivo 86-264V naizmeničnog napona Izdržljiv...

Brand: WEHO
Šifra: LPV-150-12
Dostupnost: Proveriti dostupnost

Trenutno nema na stanju
LED napajanje LPV-150-12 , izlazne snage 150W, izlazni napon 12 V u IP67 izvedbi

Odlike :

  • Stabilisan napon
  • Ulazni naponski nivo 86-264V naizmeničnog napona
  • Izdržljiv na napon od 300VAC u intervalu od 5 sekundi
  • Zaštita od kratkog spoja, preopterećenja , prenapona
  • Visoka pouzdanost i efikasnost
  • Prirodno hlađenje vazduhom
  • IP67 izvedba
  • Pogodan za napajanje LED rasvete
  • 2 godine garancije

model

LPV-150-12 LPV-150-24 LPV-150-36
output

Dc output voltage

12V 24V 36V

Output voltage tolerance

±3% ±3% ±3%

Rated output current

12.5A 6.5A 4.2A

Output current range

0~12.5A 0~6.5A 0~4.2A

Output power

150W 151W 151W

Ripple and the noise

120mVp-p 150mVp-p 180mVp-p

Dc voltage adjustable scope

±10% ±10% ±10%

Start, rise, keep time

1000ms,30ms,24ms/230VAC

input

Input voltage range

180~264VAC 47~63Hz,254~370VDC

Exchange input current

1.8A/230VAC

efficiency

82% 84% 85%

Impulse current

Cold start current 40A/230VAC

Leakage current

<2.5mA/240VAC

Protection characteristics

Overload protection

Protection way: hiccups mode, load abnormal conditions can be removed recovery

environment

Working temperature, humidity

-10℃~+60℃;20%~90%RH(Please refer to reduce the specified number load curve )

Keep temperature, humidity

-20℃~+85℃;10%~95%RH No condensation

Vibrate resistance

10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis

security

Compression sex

Between input and output :1.5KVAC

Insulation resistance

Between input and output :100M Ohms/500VDC

security

Safety standards

Accord with UL1012

EMC standard

Accord with EN55022,CLASSA

other

weight

2.5kg 233*122*60mm(L*W*H)

packaging

2.5kg/9pcs/22.5kg
