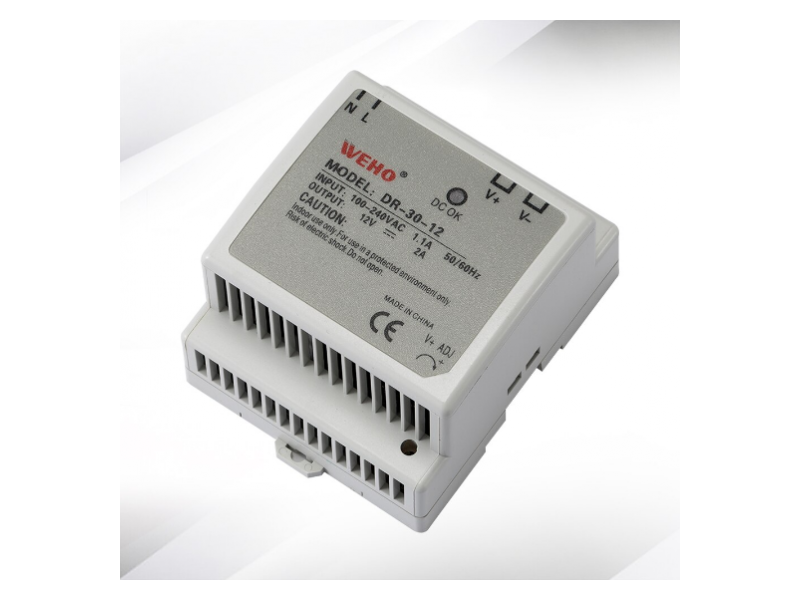

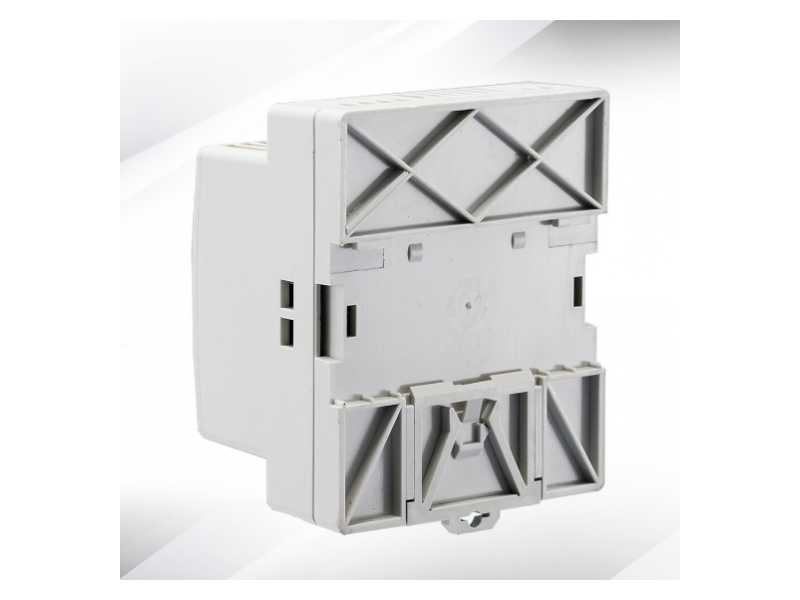

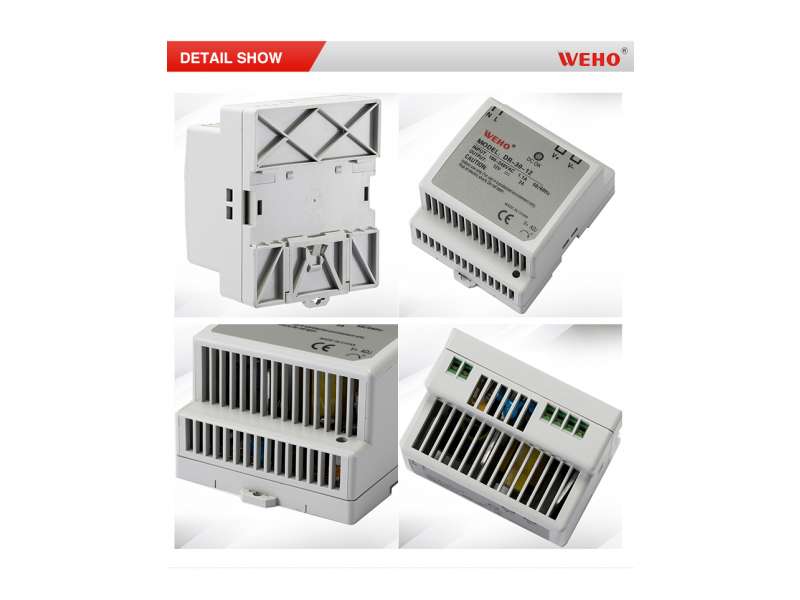

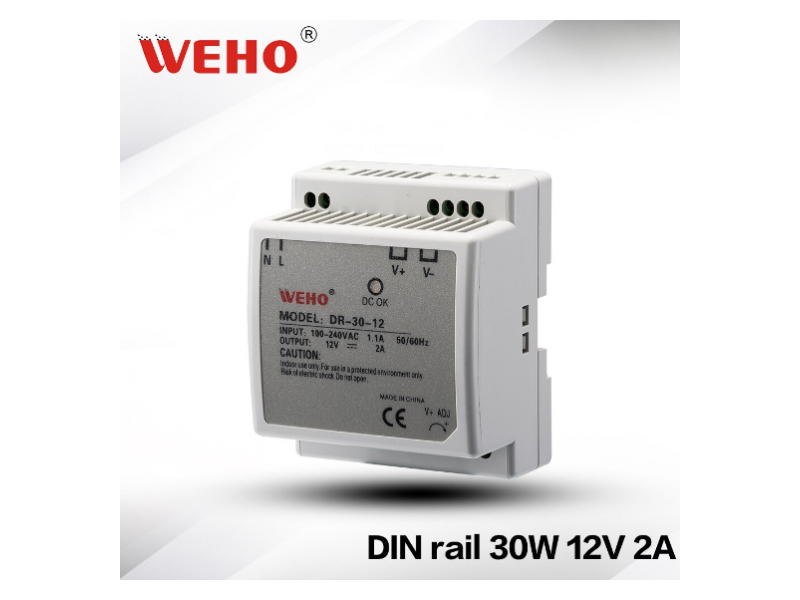

MODEL

DR-30-5

DR-30-12

DR-30-15

DR-30-24

OUTPUT

DC VOLTAGE

5V

12V

15V

24V

RATED CURRENT

3A

2A

2A

1.5A

CURRENT RANGE

0 ~ 3A

0 ~ 2A

0 ~2A

0 ~ 1.5A

RATED POWER

15W

24W

30W

36W

RIPPLE & NOISE (max.)

80mVp-p

120mVp-p

120mVp-p

150mVp-p

VOLTAGE ADJ.RANGE

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5 ~ 16.5V

21.6 ~ 26.4V

VOLTAGE TOLERANCE

±2.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±1.0%

±1.0%

±1.0%

±1.0%

LOAD REGULATION

±1.0%

±1.0%

±1.0%

±1.0%

SETUP, RISE TIME

100ms, 30ms/230VAC 100ms, 30ms/115VAC at full load

HOLD TIME(Typ.)

100ms/230VAC 30ms/115VAC at full load

INPUT

VOLTAGE RANGE

85 ~ 264VAC 120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

74%

81%

82%

83%

AC CURRENT

0.88A/115VAC 0.48A/230VAC

INRUSH CURRENT(max.)

COLD START 15A/115VAC 30A/230VAC

PROTECTION

OVERLOAD

105 ~ 160% rated output power

Protection type : Constant current limiting,recovers automatically after fault condition is removed

OVER VOLTAGE

5.75 ~ 6.75V

13.8 ~ 16.2V

17.25 ~ 20.25V

27.6 ~ 32.4V

Protection type : Shut down o/p voltage,re-power on to recover

ENVIRONMENT

WORKING TEMP.

-20 ~ +60ºC (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85ºC , 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/ºC (0 ~ 50ºC)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS

Design refer to UL60950-1,TUV EN60950-1,EN50178

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Compliance to EN55022 (CISPR22) Class B

HARMONIC CURRENT

Compliance to EN61000-3-2,-3

EMS IMMUNITY

Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, Light industry level, criteria A

OTHERS

MTBF

441.5K hrs min. MIL-HDBK-217F (25ºC)

DIMENSION

78*93*56mm (L*W*H)

PACKING

0.27Kg; 45pcs/12.2Kg/1.02CUFT
