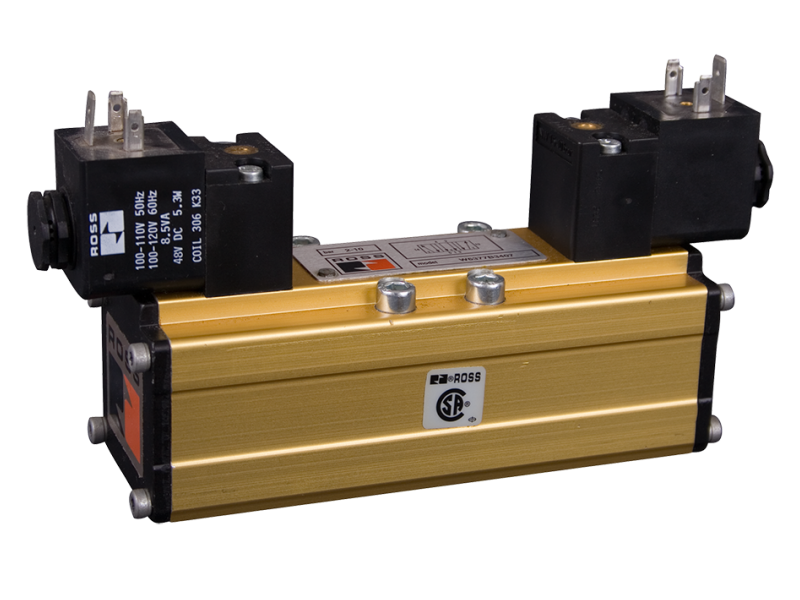

ROSS EUROPA Solenoid Controlled Spool & Sleeve Valve 5/3 Double ; W6077B4934W

Spool and sleeve ISO Size 1, 2, and 3 5/2 or 5/3 options Single base and manifold base mounting DIN Plug connectors...

Brand: ROSS EUROPA
Šifra: W6077B4934W
Dostupnost: Proveriti dostupnost
Cena na upit
  • Spool and sleeve
  • ISO Size 1, 2, and 3
  • 5/2 or 5/3 options
  • Single base and manifold base mounting
  • DIN Plug connectors
ISO SIZE 3
BASE PORT SIZE 1/2 - 3/4
FUNCTION 5/3 Double
CENTER POSITION Power Center
VOLTAGE 24 VDC
CONSTRUCTION Spool & Sleeve
ACTUATION Solenoid Controlled
AVG CV 3.8
MANUAL OVERRIDE Non-Locking
MOUNTING Base Mounted
FLOW MEDIA Filtered Air
APPLICATION Standard Temp
INLET PRESSURE RANGE VACUUM to 150 PSIG (VACUUM to 10 BAR)
AMBIENT TEMPERATURE RANGE 40 to 120 F (4 to 50 C)
MEDIA TEMPERATURE RANGE 40 to 175 F (4 to 80 C)
WEIGHT: 4.0 lbs (1.81 kg)
  • ROSS Pneumatic ISO 5599-1 Valves W60 Series

    ROSS Pneumatic ISO 5599-1 Valves W60 Series

  • Valve Installation User Manual UM-331

    Valve Installation User Manual UM-331

  • ROSS W60 Series ISO 5599-1 Valves Installation Instruction

    ROSS W60 Series ISO 5599-1 Valves Installation Instruction
