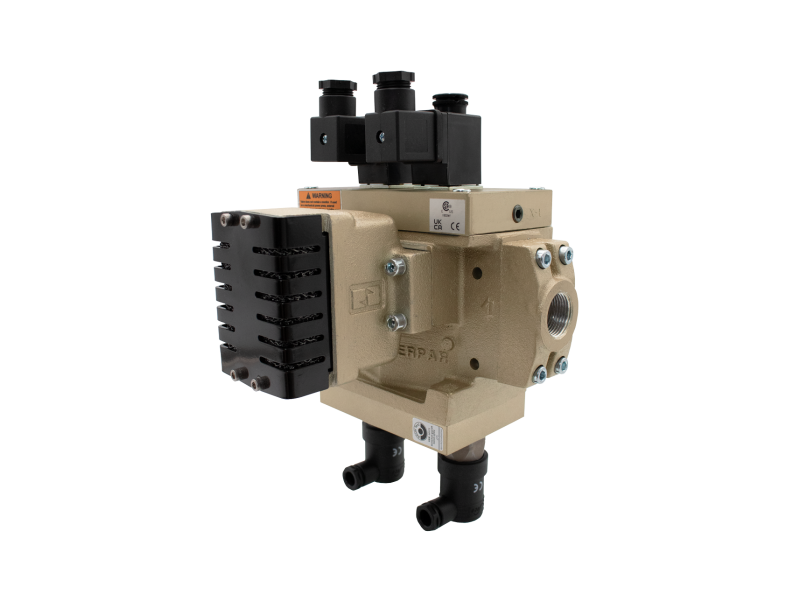

ROSS EUROPA Double Valves with Pressure Switches, Ports 1, V=24VDC; D3573D6632W
D3573D6632W Double Valves with Pressure Switches, Ports 3/8 to 1-1/2 Designed to enable users to comply with current safety regulations Can be integrated with external...
Cena na upit
D3573D6632W Double Valves with Pressure Switches, Ports 3/8 to 1-1/2
- Designed to enable users to comply with current safety regulations
- Can be integrated with external monitoring systems to provide for lockout and inhibiting further machine operation until the controls system is reset
- Default to de-energized position upon fault condition
| Port Size (In) | 1" |
| Port Size (Out) | 1" |
| Port Size (Exhaust) | Built in Silencer |
| Port Thread | BSPP |
| Cv (Exhaust) | 19 |
| Cv (In-Out) | 8.5 |
| Voltage | 24 VDC |
| Mounting Type | In-line |
| Inlet Side | Left Side |
| Status Indicator | Pressure Switch |
| Monitor Type | Externally Monitored |
| Override | Without Override |
| Reset Type | N/A |
| Input to Main Solenoid | Independent |
| Switches for External Monitoring | Pressure Switches Included |
| Solenoid Connection | DIN |
| Status Indicator Connection | N/A |
-
35 Series Press Control Cluch-Brake Double Valves ROSS SERPAR LG
-
SERPAR Double Valves with L-G Monitor User Manual 8-12-30 SM-362
-
ROSS 35 Series SERPAR Double Valves CSA Installation Instructions SS284
-
ROSS 35 Series SERPAR Double Valves Installation Instructions SS094
