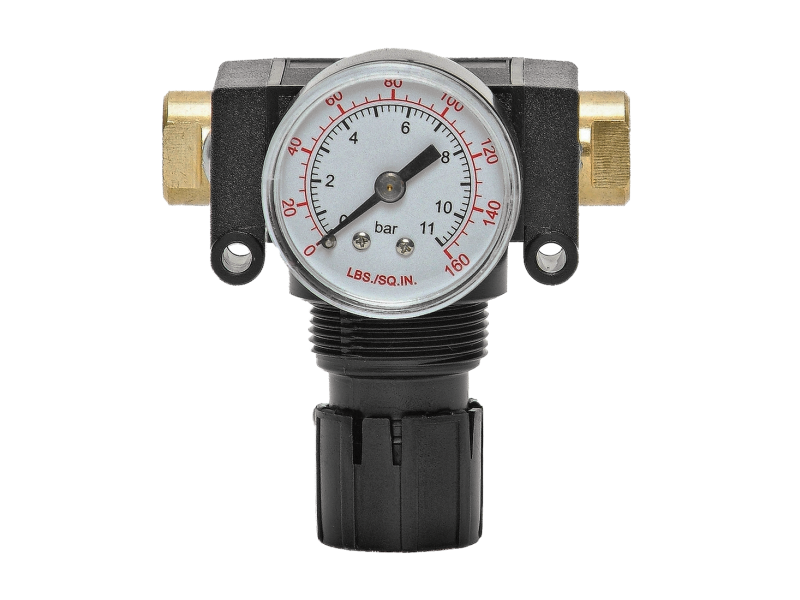

ROSS EUROPA C5B02C0060 G1/4 REGULATOR MINI
C5B02C0060 G1/4 REGULATOR MINI Regulator Bantam Series, Diaphragm, Self-relieving, Standard Flow, 0-125 (0-8.6) Pressure Range, Knob Adjustment, 0-160 (0-11) Gauge,...
Cena na upit
C5B02C0060 G1/4 REGULATOR MINI
Regulator Bantam Series, Diaphragm, Self-relieving, Standard Flow, 0-125 (0-8.6) Pressure Range, Knob Adjustment, 0-160 (0-11) Gauge, Port 1 Threaded 1/4", Port 2 Threaded 1/4", BSPP
Regulator Bantam Series, Diaphragm, Self-relieving, Standard Flow, 0-125 (0-8.6) Pressure Range, Knob Adjustment, 0-160 (0-11) Gauge, Port 1 Threaded 1/4", Port 2 Threaded 1/4", BSPP
- Modular mounting
- Piston or diaphragm construction
- Self-relieving
- Threaded ports or quick connect tube fittings
| PORT SIZE | 1/4 |
| PORT THREAD | BSPP |
| RELIEVING | Self-relieving |
| FLOW OPTIONS | Standard |
| ADJUSTMENT | Knob |
| GAUGE psig (bar) | 0 - 160 (0 -11) |
| CONSTRUCTION | Diaphragm |
| MOUNTING | Modular |
| PORT TYPE | Threaded Ports |
| PANEL MOUNT NUT | Not Included |
| MAXIMUM FLOW | 23 scfm |
| FLOW MEDIA | Compressed Air |
| INLET PRESSURE RANGE | Up to 150 psig (10 bar) |
| REGULATED PRESSURE RANGE psig (bar) | 0-125 (0-8.6) |
| MEDIA TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
| AMBIENT TEMPERATURE RANGE | 40 to 125 F (4 to 52 C) |
-
FRL Pressure Regulators ROSS
