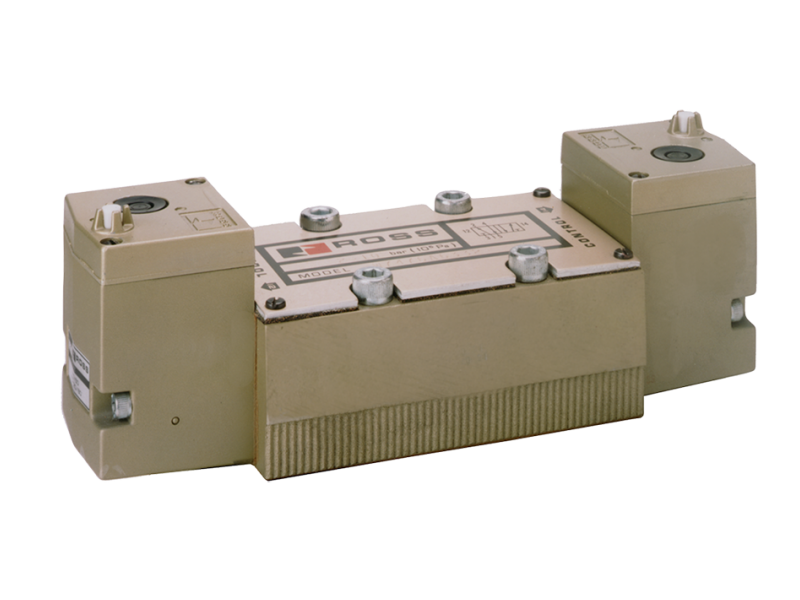

ROSS EUROPA 5/3-W SIZE 2O SOL CL CTR; W7077C8331W
5/3-W SIZE 2O SOL CL CTR; W7077C8331W ANSI Size 20, W70 Series, 5/3 Closed Center Solenoid Valve, Spool & Sleeve, 24 VDC Poppet and Spool & Sleeve Options...
Cena na upit
5/3-W SIZE 2O SOL CL CTR; W7077C8331W
ANSI Size 20, W70 Series, 5/3 Closed Center Solenoid Valve, Spool & Sleeve, 24 VDC
ANSI Size 20, W70 Series, 5/3 Closed Center Solenoid Valve, Spool & Sleeve, 24 VDC
- Poppet and Spool & Sleeve Options
- Pilot operation provides high shifting force with low power consumption
- Non-locking manual override
- Individual sub-base or manifold base mounting
- Suitable for vacuum service (with external pilot supply)
- ANSI Size 1, 2.5, 4, 10, and 20
- 2- and 3-position, 5-ported 4-way solenoid pilot or pressure controlled valves
| Valve Type | Directional Control |
| Usage Models | W70 |
| Valve Standard | ANSI |
| Application | General |
| Actuation | Electrical |
| Function | 5/3-Way, Double Solenoid |
| Default Position | Normally Closed |
| Center Position | Closed |
| Return | Detented |
| Construction | Spool and Sleeve |
| Mounting | Base Mount |
| Connection | Hardwired |
| Pilot Type | Internal/External |
| Manual Override | Non-locking |
| Size | 20 |
| Avg Cv | 22.0 |
| Voltage | 24 VDC |
| Duty Rating | Continuous Duty |
| Power Consumption | 20 watts |
| Ambient Temperature | 40 to 120 F (4 to 50 C) |
| Ambient Temperature (Celcius) | 4 to 50 |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Media Temperature (Celcius) | 4 to 80 |
| Fluid Media | Filtered air |
| Operating Pressure | Vacuum to 150 psig (10 bar) |
| Operating Pressure (bar) | Vacuum to 10 |
| Pilot Supply Minimum | Equal to or greater than inlet pressure |
| Length | 5.57 in (141 mm) |
| Length (mm) | 141 |
| Width | 16.42 in (417 mm) |
| Width (mm) | 417 |
| Height | 4.08 in (104 mm) |
| Height (mm) | 104 |
| Weight | 15.3 lb (6.9 kg) |
| Weight (kg) | 6.9 |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Stainless Steel |
| Seal Material | Buna-N |
-
ANSI Valves W70 W74 Series ROSS-ANSI EN
-
ROSS W70 Series ANSI Valves Installation Instructions
-
ROSS W74 Series ANSI Valves Installation Instructions
