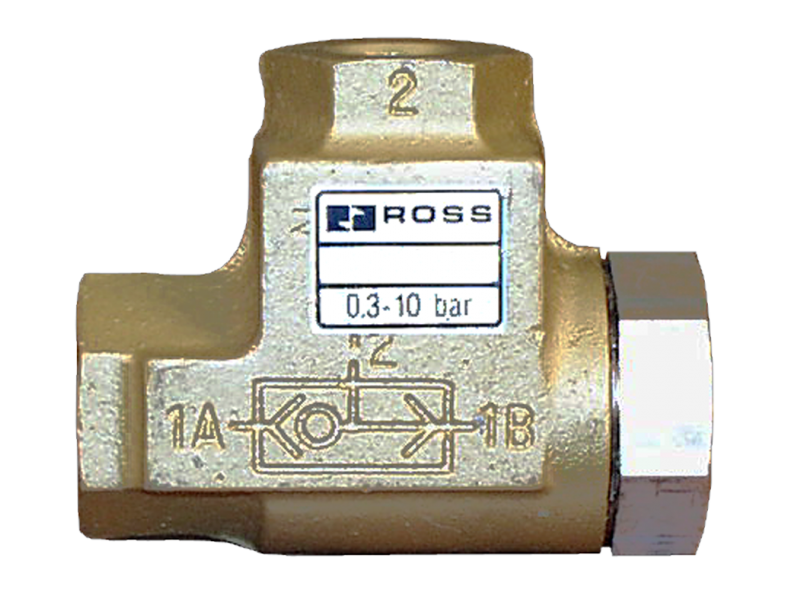

ROSS EUROPA 19 Series Shuttle Valve, High Flow, G 1/4; D1968D2003
G1/4 SHUTTLE VALVE weight: 0,3000 kg / 0,3000 kg commodity code: 84812090 country of origin: US 19 Series Shuttle Valve, High Flow, G 1/4; D1968D2003 Two Inlets...
Cena na upit
G1/4 SHUTTLE VALVE weight: 0,3000 kg / 0,3000 kg commodity code: 84812090 country of origin: US
19 Series Shuttle Valve, High Flow, G 1/4; D1968D2003
19 Series Shuttle Valve, High Flow, G 1/4; D1968D2003
- Two Inlets & One Outlet
- Poppet construction
- Low Maintenance
- Tolerant of Dirty Air
| Valve Type | Shuttle Valve |
| Series | 19 |
| Application | High Flow |
| Actuation | Pneumatic |
| Function | 2/2 |
| Thread Type | G |
| Inlet Pipe Size | 1/4" |
| Outlet Pipe Size | 1/4" |
| Construction | Poppet |
| Mounting | Inline |
| Avg Cv | 2 |
| Ambient Temperature | -40 to 175 F (-40 to 80 C) |
| Media Temperature | -40 to 175 F (-40 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Length | 2.64 in (67 mm) |
| Width | 1.25 in (32 mm) |
| Height | 2.13 in (54 mm) |
| Weight | 0.8 lb (0.4 kg) |
| Valve Body Material | Cast Aluminum |
-
ROSS 19 18 Series Valves for Air Flow Control Installation Instructions SS110-1
-
Shuttle Valves ROSS-AFC-SH EN-1
