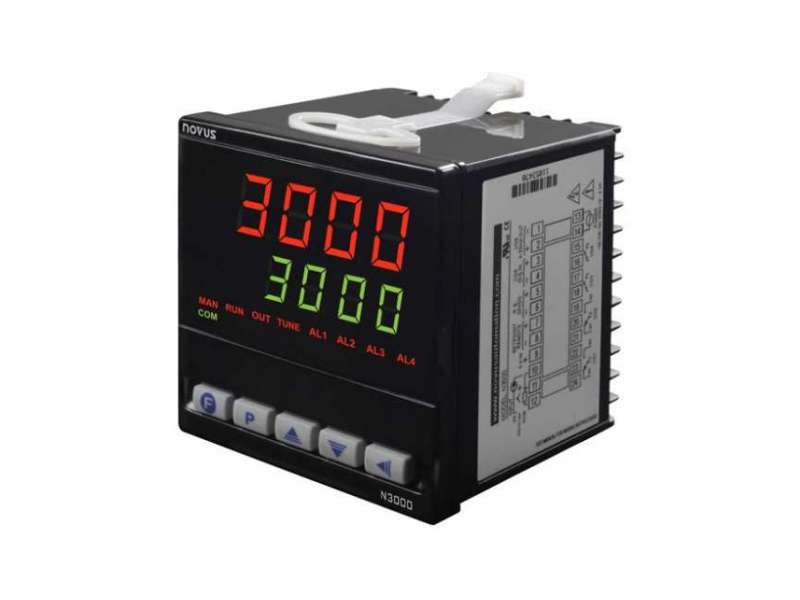

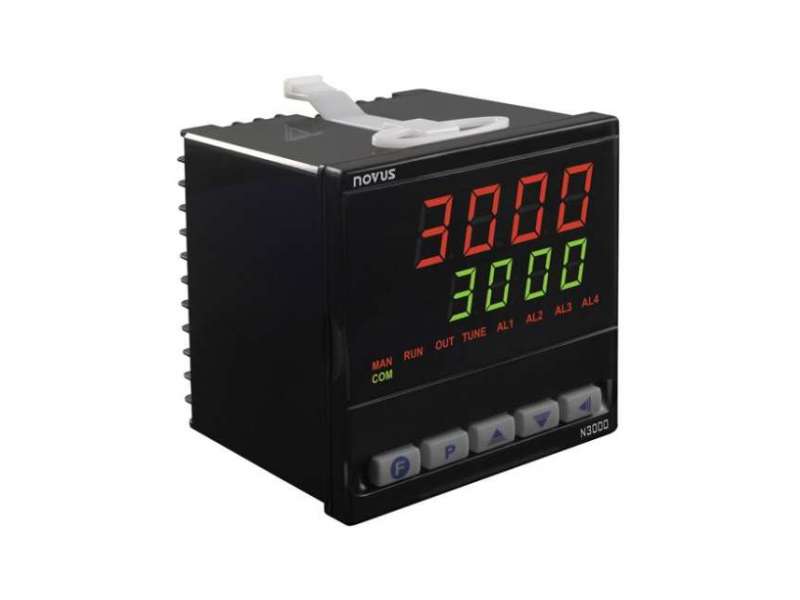

NOVUS N3000 USB 24V Process controller, 4 relays, 96x96 mm; 8300200134

N3000 USB 24V Process controller, 4 relays, 96x96 mm; 8300200134...

Brand: NOVUS
Šifra: 8300200134
Dostupnost: Proveriti dostupnost
Cena bez pdv-a: 17.634,75
Cena sa pdv-om: 21.161,70
 N3000 USB 24V Process controller, 4 relays, 96x96 mm; 8300200134

- Double LED display: red for PV (18 mm) and green for SV (13 mm)
- Accepts thermocouples type J, K, T, N, R, S; Pt100 RTD, linear 4-20 mA, 0-50 mV, 0-5 Vdc
- Sampling rate: 4 measurements per second
- Measured value resolution: 12,000 levels
- One digital input for dry contact with 5 programmable functions
- Remote setpoint input for 4-20 mAdc signal
- Dual SPST 3 A / 250 Vac relays and dual SPDT 5 A / 250 Vac relays can be individually programmed for control or alarm
- Isolated 4-20 mA output with 1500-level resolution, maximum 550 ohm load for control or PV/SV retransmission. It can also be configured for digital input or output (10 Vdc / 20 mA)
- Auto tuning PID control. Auto/Manual mode, bumpless transfer
- Programmable Soft start up to 9999 seconds
- Ramp and Soak: 7 programs of up to 7 segments each. Can be linked to create longer programs of up to 49 segments

- Control output update: 250 ms
- Up to four configurable relays, two timer alarms
- Alarm functions: LO, HI, differential, differential LO, differential HI, sensor break and event
- Alarm initial blocking function
- Power: 100 to 240 Vac, 50/60 Hz; optional 24 Vdc/ac
- Maximum consumption: 3 VA
- 24 Vdc / 30 mA supply output for remote transmitter excitation
- RS485 comm with Modbus RTU protocol (optional)
- Front panel: IP65, Polycarbonate UL94 V-2
- Back panel: IP20, ABS + PC UL94 V-0
- Enclosure: IP20
- Circuitry can be removed from the front panel
- Operating environment: 0 to 55 ºC, 20 to 85 % RH
- Dimensions: 96 x 96 x 92 mm, 1/4 DIN
- Panel cutout: 93 x 93 mm
- Weight: 330 g


  • doc-n960-n3000

    doc-n960-n3000

  • manual-n3000-v30x-h-en

    manual-n3000-v30x-h-en

  • novus-selection-guide-controllers-en-230622-5

    novus-selection-guide-controllers-en-230622-5
