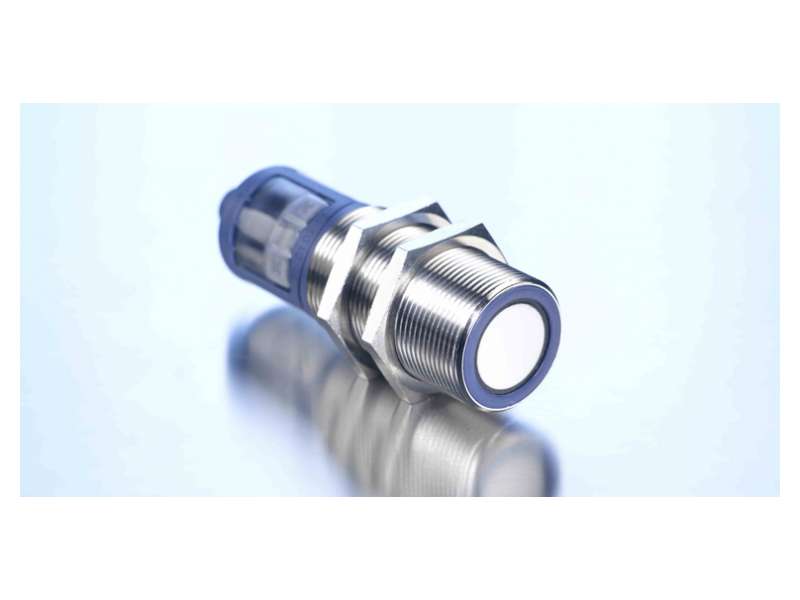

Microsonic Ultrazvučni senzor mic+130/IU/TC

Microsonic Ultrazvučni senzor mic+130/IU/TC - slika 1

Microsonic Ultrazvučni senzor mic+130/IU/TC - slika 2

Microsonic Ultrazvučni senzor mic+130/IU/TC - slika 3

Microsonic Ultrazvučni senzor mic+130/IU/TC - slika 4

Microsonic Ultrazvučni senzor mic+130/IU/TC

microsonic ultrazvučni senzor mic+130/IU/TC...

Brand: Microsonic
Šifra: mic+130/IU/TC
Dostupnost: Proveriti dostupnost

Cena na upit

microsonic ultrazvučni senzor mic+130/IU/TC

1 x analogue 4-20 mA + 0-10 V

2,000 mm

measuring range200 - 2.000 mm

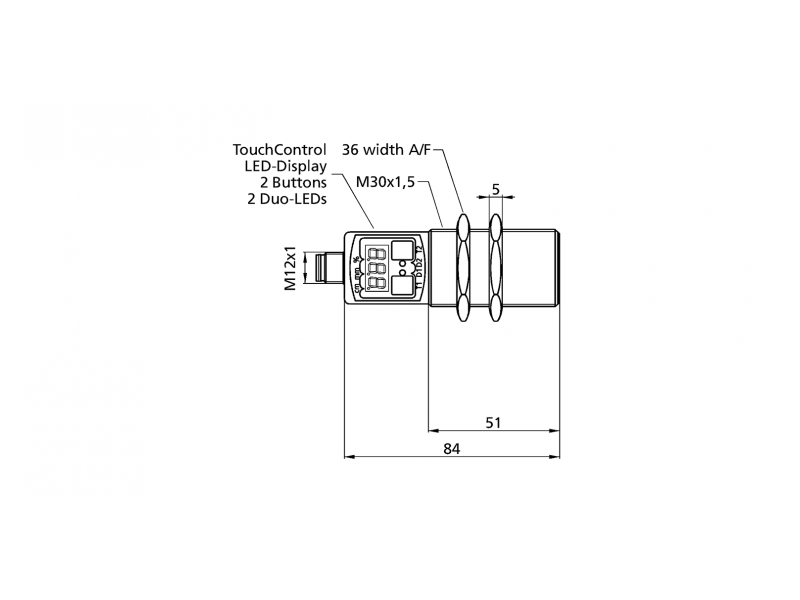

designcylindrical M30

operating modeanalogue distance measurements

particularitiesDisplay
UL Listed

ultrasonic-specific

means of measurementecho propagation time measurement

transducer frequency200 kHz

blind zone200 mm

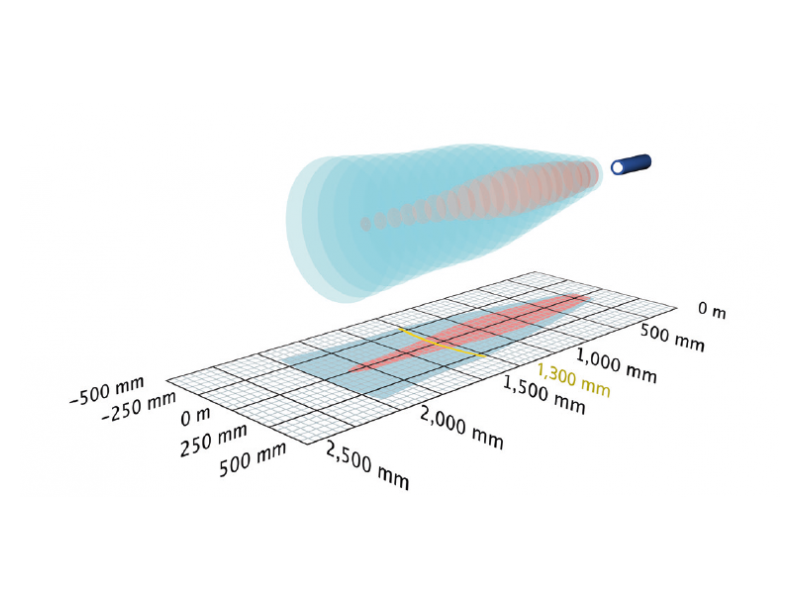

operating range1,300 mm

maximum range2,000 mm

resolution0.18 mm to 0.57 mm, depending on the analogue window

reproducibility± 0.15 %

accuracy± 1 % (temperature drift internally compensated)

electrical data

operating voltage U_B9 - 30 V d.c., reverse polarity protection

voltage ripple± 10 %

no-load current consumption≤ 80 mA

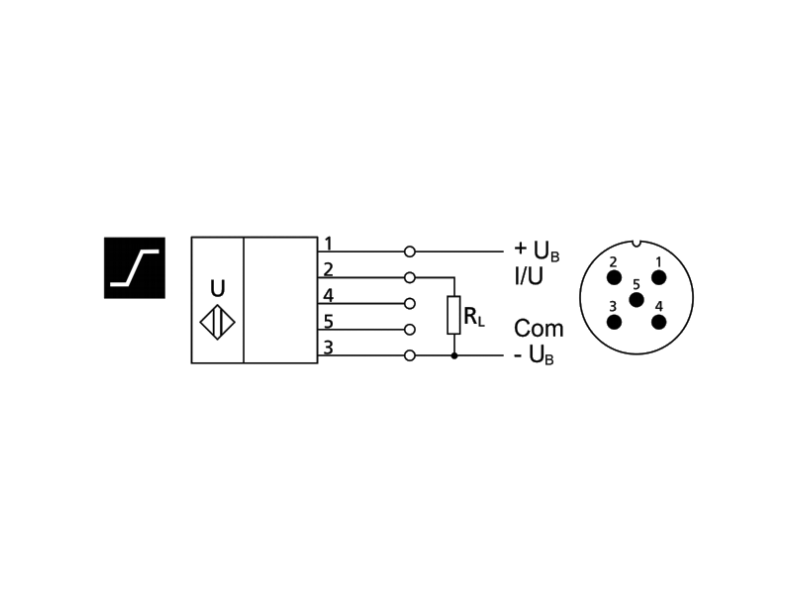

type of connection5-pin M12 initiator plug

output 1analogue output
current: 4-20 mA / voltage: 0-10 V (at U_B ≥ 15 V), short-circuit-proof
switchable rising/falling

response time92 ms

delay prior to availability< 300 ms

input 1com input
synchronisation input

materialbrass sleeve, nickel-plated, plastic parts, PBT, TPU

ultrasonic transducerpolyurethane foam, epoxy resin with glass contents

class of protection to EN 60529IP 67

operating temperature-25°C to +70°C

storage temperature-40°C to +85°C

weight150 g

further versionsstainless steel
cable connection (on request)

further versionsmic+130/IU/TC/E

technical features/characteristics

temperature compensationyes

controls2 push-buttons + LED display (TouchControl)

scope for settingsTeach-in and numeric configuration via TouchControl
LCA-2 with LinkControl

Synchronisationyes

multiplexyes

indicators3-digit LED display, 2 x three-colour LED

particularitiesDisplay
UL Listed

microsonic mic+130 IU TC
