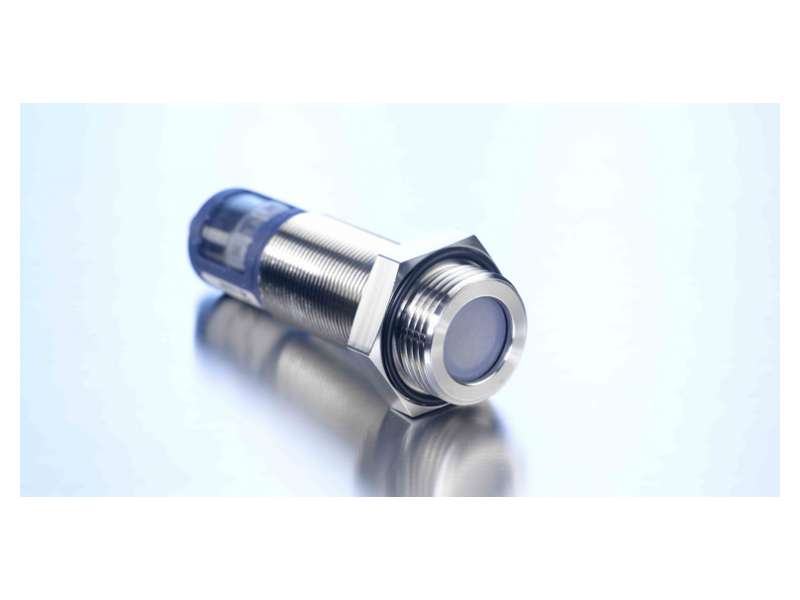

Microsonic Ultrazvučni senzor hps+130/DIU/TC/E/G1
microsonic ultrazvučni senzor hps+130/DIU/TC/E/G1...
Cena na upit
microsonic ultrazvučni senzor hps+130/DIU/TC/E/G1
-
1 x pnp + 1 x analogue 4-20 mA / 0-10 V
200 - 5.000 mm
process connection G1
proximity switch/reflective mode
reflective barrier
window mode
analogue distance measurement
reflective barrier
window mode
analogue distance measurement
druckfest bis 6 bar Überdruck
hohe Chemiebeständigkeit
Edelstahlausführung
Display
Prozessanschluss G1
UL Listed
hohe Chemiebeständigkeit
Edelstahlausführung
Display
Prozessanschluss G1
UL Listed
echo propagation time measurement
180 kHz

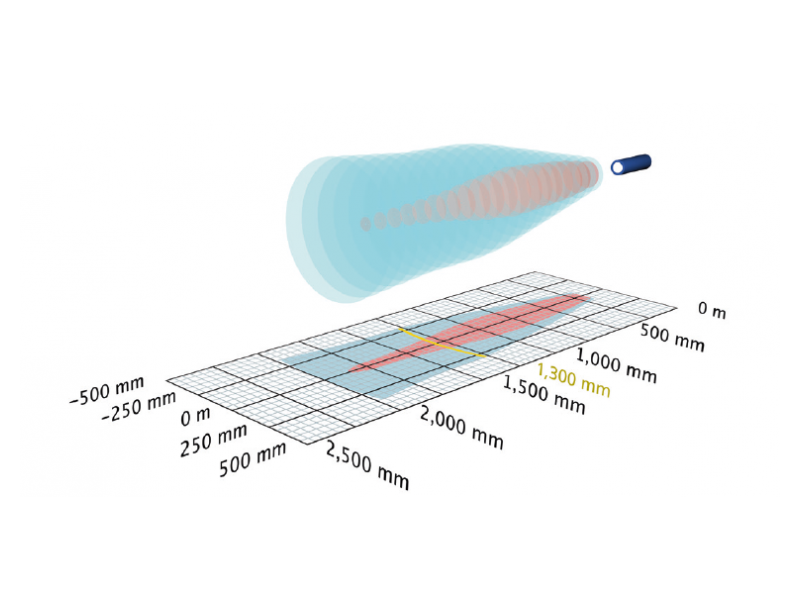

200 mm
1,300 mm
2000 mm
5000 mm
0.18 mm to 1.5 mm, depending on the analogue window
± 0.15 %
± 1 % (temperature drift internally compensated)
9 - 30 V d.c., reverse polarity protection
± 10 %
≤ 80 mA

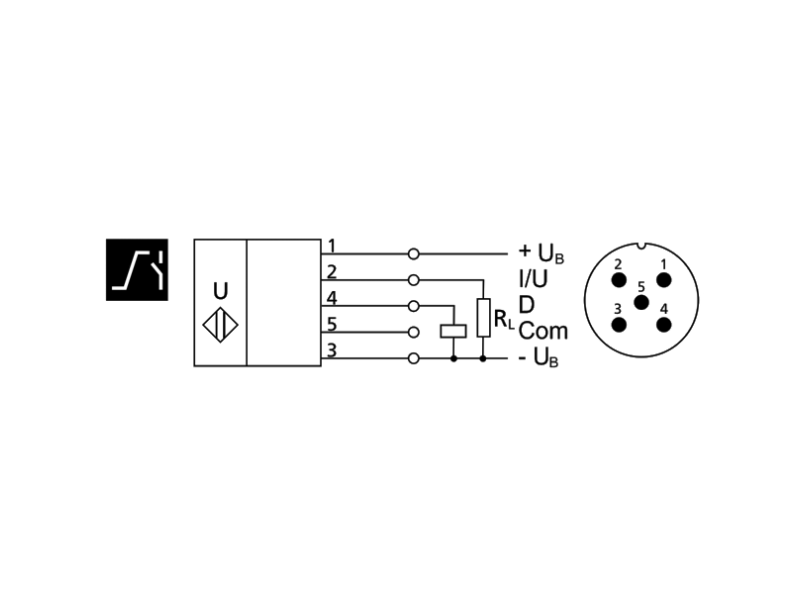

5-pin M12 initiator plug
analogue output
current: 4-20 mA / voltage: 0-10 V, short-circuit-proof
switchable rising/falling
current: 4-20 mA / voltage: 0-10 V, short-circuit-proof
switchable rising/falling
switching output
pnp: Imax = 200 mA (UB-2V)
NOC/NCC adjustable, short-circuit-proof
pnp: Imax = 200 mA (UB-2V)
NOC/NCC adjustable, short-circuit-proof
20 mm
5 Hz
160 ms
< 300 ms
com input
synchronisation input
synchronisation input
stainless steel, plastic parts: PBT, TPU
coated with PTFE film, FFKM O-ring
IP 67
-25°C to +70°C
-40°C to +85°C
210 g
yes
2 push-buttons + LED display (TouchControl)
Teach-in and numeric configuration via TouchControl
LCA-2 with LinkControl
LCA-2 with LinkControl
yes
yes
3-digit LED display, 2 x three-colour LED
druckfest bis 6 bar Überdruck
hohe Chemiebeständigkeit
Edelstahlausführung
Display
Prozessanschluss G1
UL Listed
hohe Chemiebeständigkeit
Edelstahlausführung
Display
Prozessanschluss G1
UL Listed
-
microsonic hps+130 DIU TC E G1
