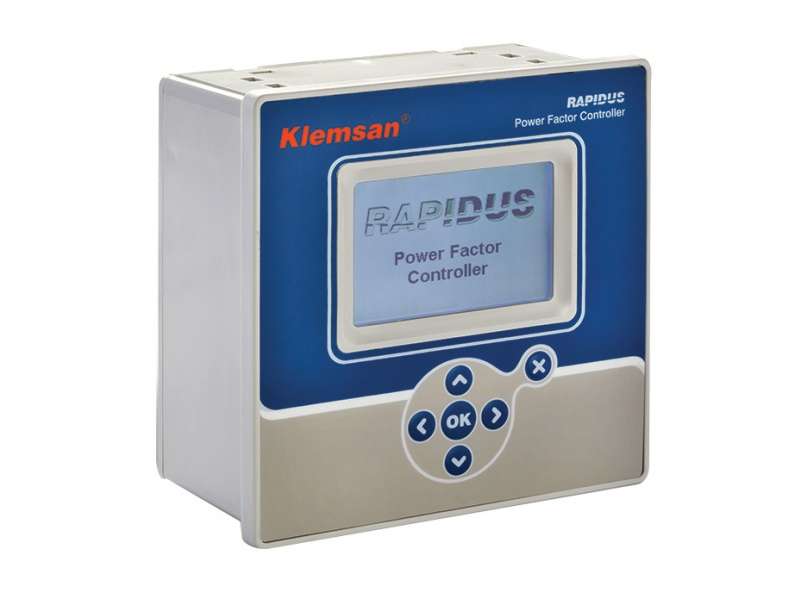

Klemsan Power Factor Controller 232R-E, 3phase, 24 steps ; 606007
Kontroler faktora snage , Rapidus 232R-E ( 3phase 24 steps) je uređaj za automatizaciju koji time što smanjuje utrošenu reaktivnu energiju, omogućava...
Cena bez pdv-a: 65.993,94 |
Cena sa pdv-om: 79.192,72 |
Kontroler faktora snage , Rapidus 232R-E ( 3phase 24 steps) je uređaj za automatizaciju koji time što smanjuje utrošenu reaktivnu energiju, omogućava maksimalnu efikasnost izvora električne energije. Ova serija je namenjena trofaznim sistemima, međutim neki od proizvoda iz ove serije mogu biti ugrađeni I na monofaznom sistemu. Detaljnije karakteristike proizvoda se nalaze u tehničkoj specifikaciji. Takođe RAPIDUS smanjuje opterećenje celog sistema. Još jedna njegova bitna odlika je nadgledanje faktora snage I aktiviranje alarma u slučaju pada vrednosti faktora snage ispod definisane vrednosti koju propisuje distributer el.energije.
Odlike :
Odlike :
- Modularni dizajn
- Nije potreban kabl za utičnicu
- Tehnologija DCM
- Modbus komunikacija
- Neki od proizvoda ove serije imaju mogućnost praćenja harmonika do 51.reda
CONNECTION DATA
Connection Type
3F4T
GENERAL
Measurement System
3Ø

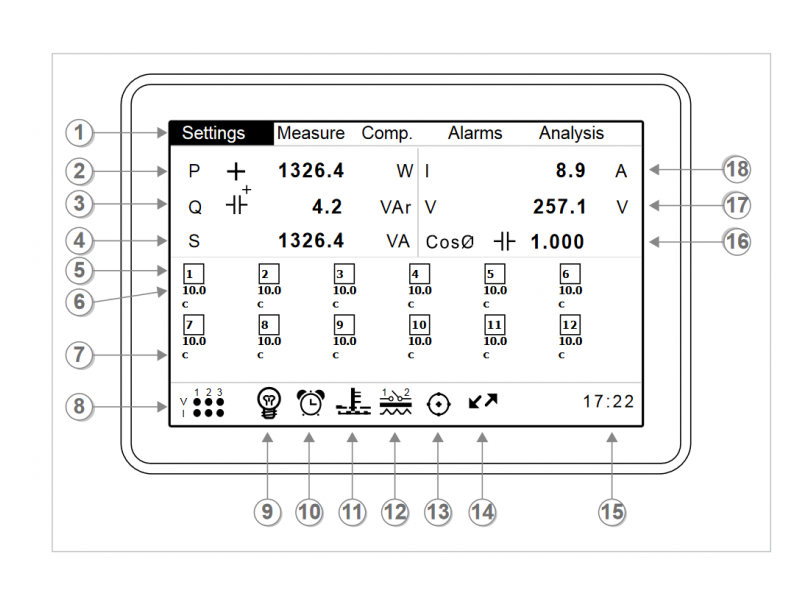

LCD Screen
+
Language Support
Turkish, English, Russian
Password Protection
✅
Voltage Transformer Ratio (VTR)
1 - 5000
Current Transformer Ratio (CTR)
1 - 5.000
Number of Measurements in One Period
512
LCD/Screen Refresh Rate
1 sn.
Networks
TT, TN, IT
Battery
✅
Real Time Clock
✅
Four Quadrant Measurement
4
Demand Period
1-60 min. adjustable
Phase Diagram
Available
Min./Max./Demand Values
✅
COMPENSATION MODES
Linear
✅
Circular
✅
Sequential
✅
Rapidus (Smart Control Mode)
✅
Manual
✅
STEP CONFIGURATIONS
Manual Definition
✅
Predefined
1-1-1-1, 1-1-2-2, 1-2-2-4, 1-2-3-3, 1-2-4-4, 1-1-2-4, 1-2-3-4, 1-2-4-8, 1-1-2-3
Power (kVAr)
0.00-1000 adjustable
Type
3Ø capacitor, 3Ø shunt reactor adjustable
Fixed Step Assignment
✅
POWER FACTOR SETTINGS
Learnable Step and Connections
✅
Target 1 cosØ
0.8 cap. to 0.8 ind. adjustable
Target 2 cosØ
0.8 cap. to 0.8 ind. adjustable
Dual cosØ Target
✅
4 Quadrant Operation for Generators
✅
ENERGY MEASUREMENT
3Ø Phase Energy Measurement
Available
CURRENT MEASUREMENT INPUT
Measuring Range
10mA-6A AC
Overvoltage Category
300 V Cat III
Voltage Fluctuation Measurement
2 kV
Power Consumption
<0.2 VA
Intermittent Overload
100A for 1 sec.
Sampling Frequency Between 45-65 Hz
25.6 kHz
VOLTAGE MEASUREMENT INPUT
Overvoltage Category
300 V Cat III
Measuring Range L-N
95-272 VAC ±10%
Measuring Range L-L
164-471 VAC ±10%
Frequency Measuring Range
45-65 Hz
Power Consumption
<0.1 VA
Sampling Frequency Between 45-65 Hz
25.6 kHz
POWER QUALITY MEASUREMENTS
THD - Voltage (as %)
✅
THD - Current (as %)
✅
Harmonics for Current and Voltage Phases
Up to 51st
MEASURING ACCURACY - IEC 61557-12
Total Active Power
Class 0.2
Total Reactive Power
Class 1
Total Reactive Energy
Class 2
Frequency
Class 0.05
Current
Class 0.2
Neutral Current
Class 0.5
Voltage
Class 0.2
Power Factor
Class 0.5
THDV, THDI
Class 1
Total Apparent Power
Class 0.2
Total Active Energy
Class 0.5
MEASURING ACCURACY - IEC 62053-22
Total Active Energy
Class 0.2S
MEASURING ACCURACY - IEC 62053-23
Total Reactive Energy
Class 2
COMPENSATION RELAY OUTPUTS
Number of Outputs
24
Type
NO (SPST)
Max. Switching Current
2A
Max. Switching Voltage
250VAC
Max. Switching Power
1250VA
Mechanical Operating Life
10.0000000 operations
Electrical Operating Life (NO side)
5×104(5A@250VAC) 1×105(5A@30VDC)
ALARM RELAY OUTPUTS
Number of Outputs
2
Type
NO (SPST)
Max. Switching Current
4A
Max. Switching Voltage
250 VAC
Max. Switching Power
1250 VA
Mechanical Operating Life
= 10.0000000 operations
Electrical Operating Life (NO side)
5×104(5A@250VAC) 1×105(5A@30VDC)
GENERATOR / DAY-NIGHT INPUT
Number of Inputs
1
Frequency
45-65Hz
Input
95-240VAC
INPUTS AND OUTPUTS
Digital Outputs
--
Analog Outputs
--
POWER SUPPLY
Backup Supply Input
--
Voltage
L1-N den ±10% 95-272VAC
Frequency
45-65Hz
Consumption
< 10VA

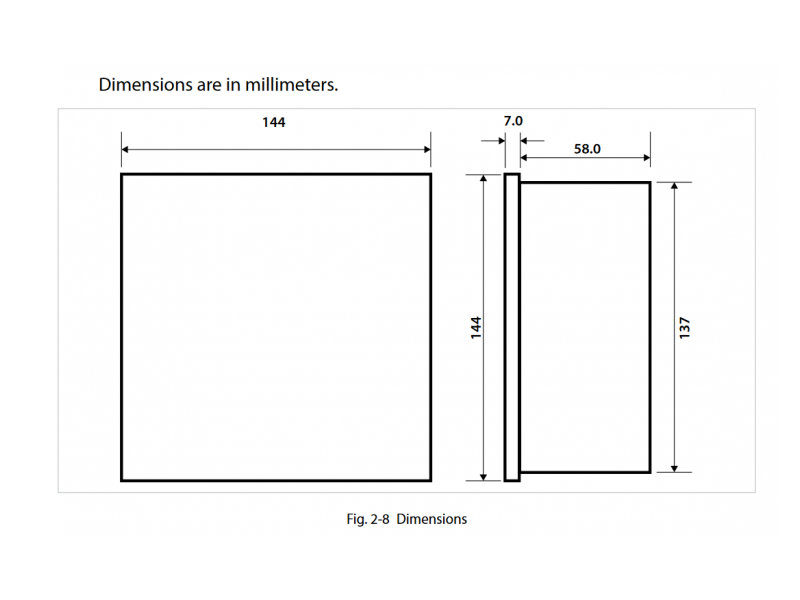

MECHANICAL PROPERTIES
Weight (g)
765
Protection Class
Front IP40 / Rear IP20
Mounting Type
Panel Mount
Packaging Quantity
1
CABLE CROSS-SECTIONS
Voltage, Current, All Relay Outputs, Generator Input
2.5mm² - 14AWG with ferrule - 4mm² - 12AWG without ferrule, 2x1.5mm² - 2x16AWG
RS485
1.5mm² - 16AWG with ferrule - 1.5mm² - 16AWG without ferrule, 2x0.75mm² - 2x18AWG
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20°C +55°C
Storage Temperature
-30°C +80°C
Relative Humidity (Non-condensing)
Max. 95%
EMC-EMI
EN 61000-6-1:2011
✅
EN 61000-6-3 - A1 - AC:2013
✅

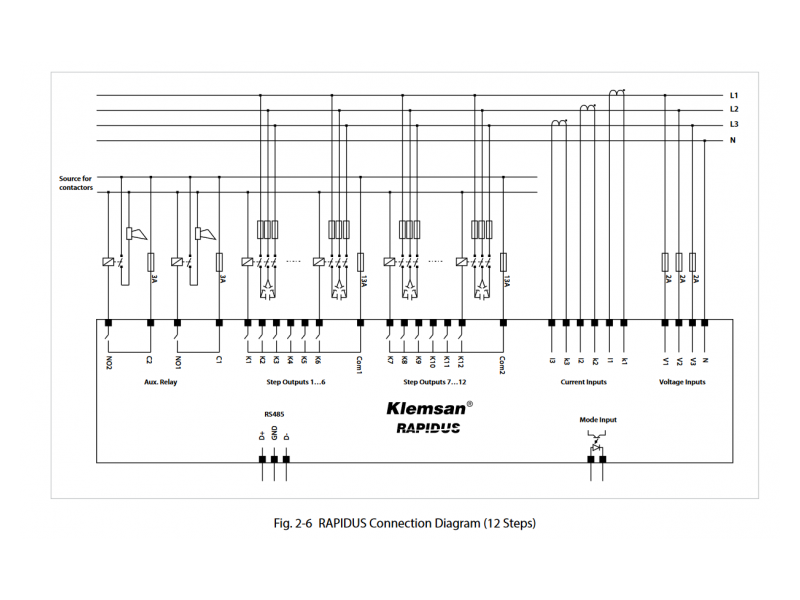

DIAGRAMS
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
2400-115200 bps adjustable
Parity
---
Stop Bit
1
Slave ID
1-247
Isolation
2000V RMS
CONTROL PROCESS AND FUNCTIONS
Phase Switching Angle
±45 degree adjustable
Average Time
Off, 5 sec, 10 sec, 20 sec, 30 sec, 40 sec, 50 sec, 60 sec adjustable
Step Deactivation Time
1-600 sec. adjustable
Step Discharge Time
3-1000 sec. adjustable
Step Activation Time
1-600 sec. adjustable
TIME RECORDED DATA STORAGE
Alarm Records
50
Hourly Records
1920 Hours x 68 Different Paramaters
Daily Records
240 Days x 68 Different Paramaters
Monthly Records
36 Months x 68 Different Paramaters
Demand
4 Months x 16 Different Parameters
-
231R-E, 211R, 232R-E
-
RAPIDUS 232R-E
-
RAPIDUS3PHASE 606005 606007 EN 17102022
