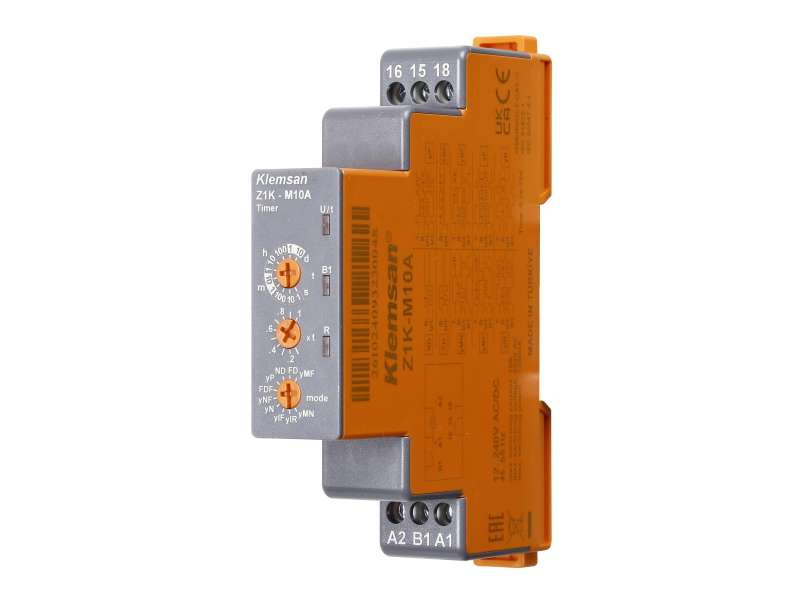

Klemsan Multifunctional Timer Relay Z1K-M10A; 261024
Klemsan Multifunctional Timer Relay Z1K-M10A; 261024...
Cena bez pdv-a: 3.898,46 |
Cena sa pdv-om: 4.678,15 |
Klemsan Multifunctional Timer Relay Z1K-M10A; 261024
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Case Width (mm)
18
Mounting Type
Panel & Rail
Supply Frequency
45-65 Hz
Output Type
Relay
Functions
ND, FD, FDF, yMN, yMF, yIR, yNF, yP, yIF, yN
Restore Time
Maks. 100ms
Trigger Input Voltage
12-240V AC/DC
POWER SUPPLY
Voltage
12V DC / 12V AC & 180-265V AC
Power Consumption
<1,5W DC / <5VA AC
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to + 60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95%
BACKUP CONNECTIONS
Type
1 C/O (SPDT)
Max. Values - AC (NO side)
10A/250V; 1250VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
TIME INTERVAL
Timing 1
0,1 sn .. 10 gün
-
Multi functional (10) 03022025-TR-EN
-
Z1K-M10A
