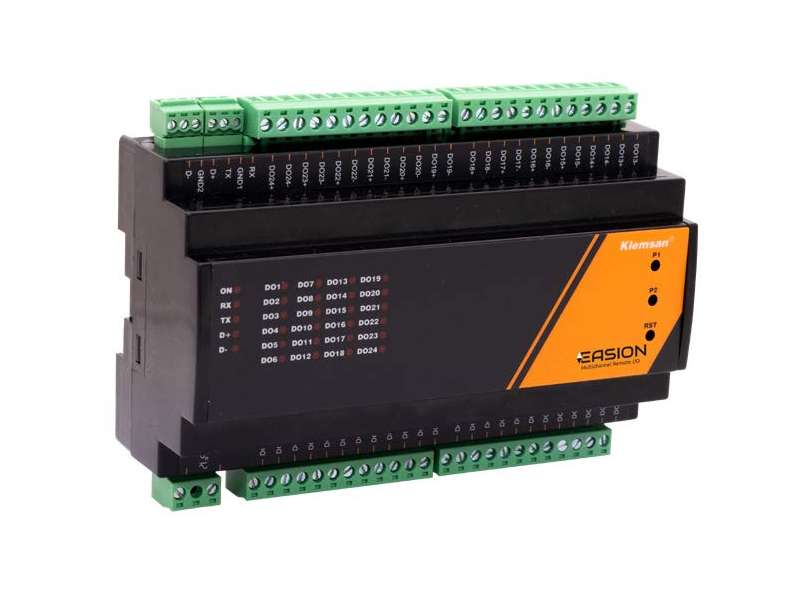

Klemsan Multi-Channel Remote I/O, RS485, RS232, 12 DI (wet), 12 DO; 260015
Remote I/O EASION 2M-1LL11, RS485 + RS232 (MODBUS RTU), 12DI (active) + 12 DO; 260015...
Cena bez pdv-a: 46.927,25 |
Cena sa pdv-om: 56.312,69 |
Remote I/O EASION 2M-1LL11, RS485 + RS232 (MODBUS RTU), 12DI (active) + 12 DO; 260015
GENERAL
Case Width (mm)
(95mmx160mm)x58mm
Mounting Type
Rail Mount
POWER SUPPLY
Voltage
24 – 50 V AC / 12 – 50 V DC
Frequency
45-65 Hz
Consumption
<13VA AC / <7W
MECHANICAL PROPERTIES
Packaging Quantity
1
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to +70 °C
Storage Temperature
-20°C..+70°C
Relative Humidity (Non-condensing)
Max.95% (no condensation)
DIGITAL OUTPUT
Number of Outputs
12
Switching Current / Voltage
50mA / 5-30V DC
Response Time
<18µs
RELAY OUTPUT
INPUT DRY CONTACT
INPUTS WET CONTACT
Number of Inputs
12
Input Voltage
12 - 230 V AC/DC
Input Current
1 mA at 5V AC/DC - 2,5 mA at 24V AC/DC- 4 mA at 230V AC/DC
Frequency
45-65 Hz
Isolation Level
5000Vrms optical insulation
COMMUNICATION RS485 (MODBUS RTU)
Baud Rate
1200 .. 115200
Stop Bit
1,2
Slave ID
1 ..247
COMMUNICATION MICRO USB (MODBUS RTU)
Baud Rate
❌
Stop Bit
❌
Slave ID
❌
COMMUNICATION HTTP REST
COMMUNICATION MODBUS TCP
COMMUNICATION MQTT, HTTP REST
COMMUNICATION RS232 (MODBUS RTU)
Baud Rate
1200 .. 115200
Stop Bit
1,2
Slave ID
1 ..247
-
EASION EN 10082020
-
EASION 2M-1LL11
