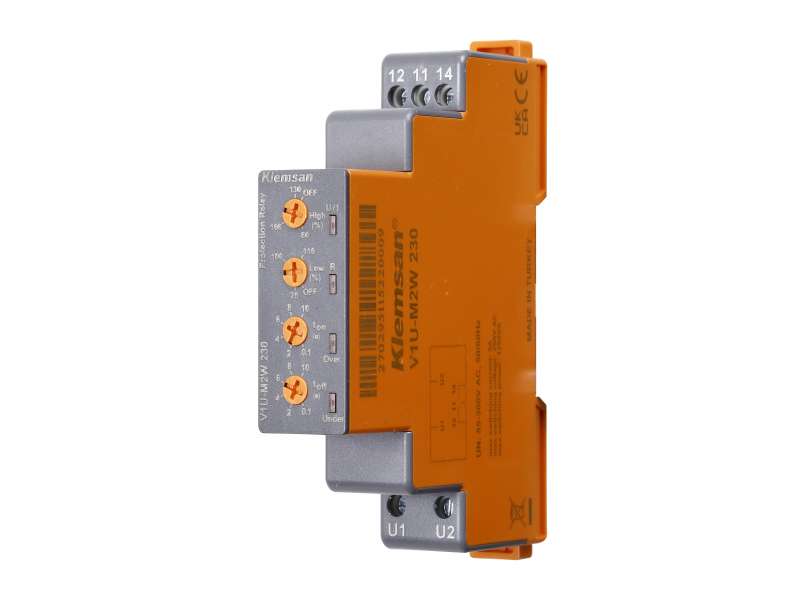

Klemsan Motor Protection Relay V1U-M2W 230; 270295
Klemsan Motor Protection Relay V1U-M2W 230; 270295 Phase Loss, Neutral Loss, High/Low Voltage Protection, 1ph with neutral...
Cena bez pdv-a: 4.925,97 |
Cena sa pdv-om: 5.911,17 |
Klemsan Motor Protection Relay V1U-M2W 230; 270295
Phase Loss, Neutral Loss, High/Low Voltage Protection, 1ph with neutral
Phase Loss, Neutral Loss, High/Low Voltage Protection, 1ph with neutral
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Packaging Quantity
1
Case Width (mm)
18
Mounting Type
Rail Mount
Nominal Voltage
230
EMC-EMI
ok
Networks
1Ø with neutral
POWER SUPPLY
Voltage
85-300V LN ±20% AC
Frequency
50-60Hz
Consumption
<13VA AC
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95% (no condensation)
BACKUP CONNECTIONS
Type
1 C/O (SPDT)
Max. Values - AC (NO side)
10A/250V; 1250 VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
MONITORING FUNCTIONS
Phase Loss Delay Time
500 ms
Neutral Loss Delay Time
500 ms
Voltage Protection Upper Limit
(80% - 130%) x Un
Voltage Protection Lower Limit
(75% - 115%) x Un
Voltage Protection Delay Time
"ton= 0.1 .. 10 sn / toff= 0.1 - 10 sn"
Voltage Protection Hysteresis
3% x Un
-
Adjustable Protection Relays 09122024-TR-EN
