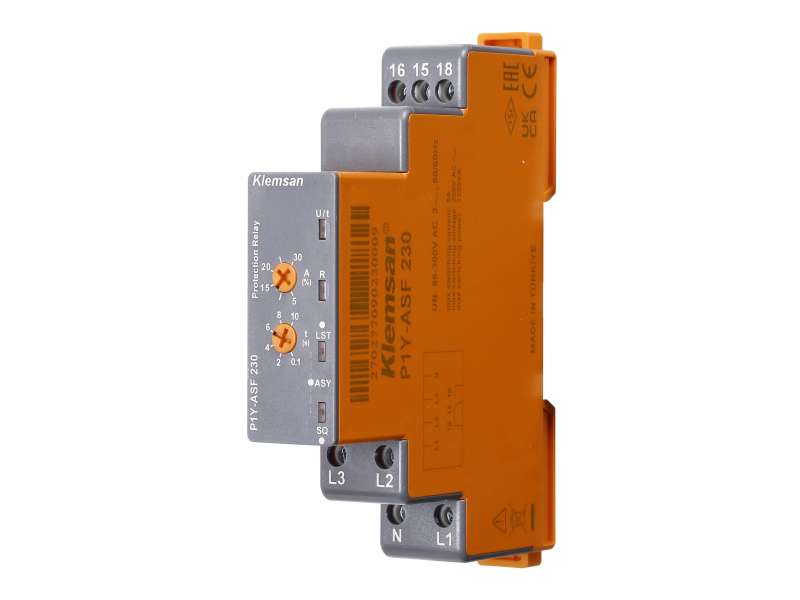

Klemsan Motor Protection Relay P1Y-ASF 230; 270277
Klemsan Motor Protection Relay P1Y-ASF 230; 270277 Phase Loss, Phase Sequence, Adj. Asymmetry Protection, Neutral Loss, 3ph with neutral...
Cena bez pdv-a: 3.646,87 |
Cena sa pdv-om: 4.376,24 |
Klemsan Motor Protection Relay P1Y-ASF 230; 270277
Phase Loss, Phase Sequence, Adj. Asymmetry Protection, Neutral Loss, 3ph with neutral
Phase Loss, Phase Sequence, Adj. Asymmetry Protection, Neutral Loss, 3ph with neutral
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Packaging Quantity
1
Case Width (mm)
18
Mounting Type
Rail Mount
Nominal Voltage
230 V
EMC-EMI
ok
Networks
3Ø with neutral
POWER SUPPLY
Voltage
85-300V LN ±20% AC
Frequency
50-60Hz
Consumption
<13VA AC
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95% (no condensation)
BACKUP CONNECTIONS
Type
1 C/O (SPDT)
Max. Values - AC (NO side)
10A/250V; 1250 VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
MONITORING FUNCTIONS
Phase Loss Delay Time
500 ms
Phase Sequence Delay Time
500 ms
Neutral Loss Delay Time
500 ms
Asymmetry Protection Range/Limit
± (5 - 30%)
Asymmetry Protection Hysteresis
3% x Un
Asymmetry Protection Delay Time
0.1sn .. 10sn
-
Adjustable Protection Relays 09122024-TR-EN
