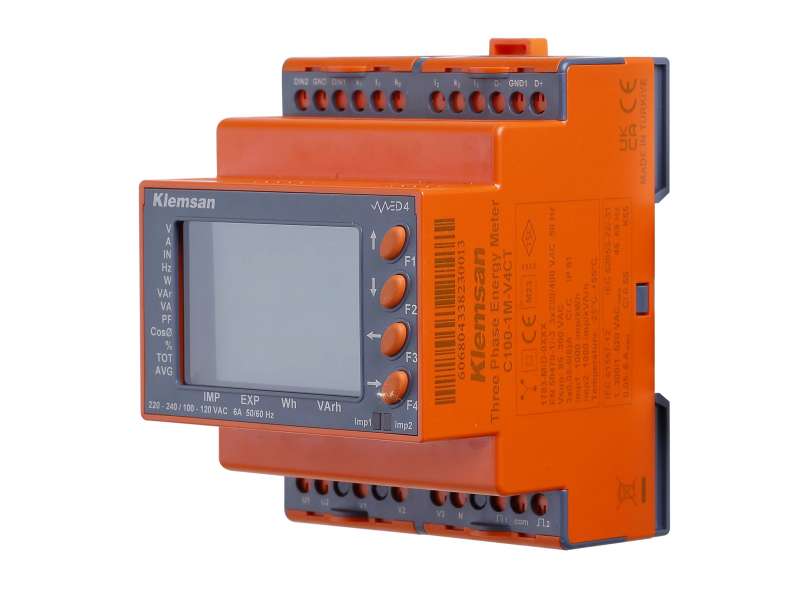

Klemsan 3Ø MID Energy Meter 5100-1Q-V2CT, 3P4W & 3P3W, need CT ; 606817
Klemsan 3Ø MID Energy Meter 5100-1Q-V2CT, 3P4W & 3P3W, need CT ; 606817...
Cena bez pdv-a: 11.970,47 |
Cena sa pdv-om: 14.364,56 |
Klemsan 3Ø MID Energy Meter 5100-1Q-V2CT, 3P4W & 3P3W, need CT ; 606817
GENERAL
Connection Type
3P4W & 3P3W
Current Connection Type
CT Baglantili
ENERGY MEASUREMENT
Energy Measurement Type
Import & Export kWh-kVArh
Balance Energy
✅
Number of Tariffs
2
Number of Reactive Measurement Zones
4
CURRENT MEASUREMENT INPUT
Measuring Range
0,05 .. 6A
VOLTAGE MEASUREMENT INPUT
Measuring Range L-N
100-300V AC
Measuring Range L-L
173-520
POWER QUALITY MEASUREMENTS
THDI
✅
THDV
✅
POWER SUPPLY
Voltage
100-300V AC
Frequency
45-65Hz
Consumption
<3VA AC
MECHANICAL PROPERTIES
Weight (g)
340
Protection Class
IP20
Mounting Type
Rail Mount
ENVIRONMENTAL CONDITIONS
Operating Temperature
-25°C +50°C
Storage Temperature
-25°C +70°C
Relative Humidity (Non-condensing)
Max. 80% (no condensation)
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
1200-57600
Parity
Odd, Even, None
Stop Bit
1
Slave ID
1-247
Isolation
3750 Vrms
DIGITAL OUTPUT
Frequency
5-30 VDC
Number of Inputs
2 (1 sabit, 1 ayarlanabilir)
Switched Voltage Range
Transistor
Isolation
3750 Vrms
DIGITAL INPUT
Isolation
3750 Vrms
Number of Inputs
2
Input Type
Dry Contact
OTHER MEASUREMENTS
BASIC ELECTRICAL MEASUREMENTS
Current
✅
Voltage
✅
Frequency
✅
Active Power
✅
Reactive Power
✅
Apparent Power
✅
CABLE CROSS-SECTIONS POWER SUPPLY, VOLTAGE, RELAY
CABLE CROSS-SECTIONS CURRENT
CABLE CROSS-SECTIONS DIGITAL INPUT/OUTPUT, RS485, ANALOG OUTPUT
MEASUREMENT CLASS
EN 50470
Class B
MEASUREMENT
Demand
✅
LED (Impulse)
kWh
✅
kVArh
✅
-
5100-1Q-V2CT
-
EMD4 EN 09122024
