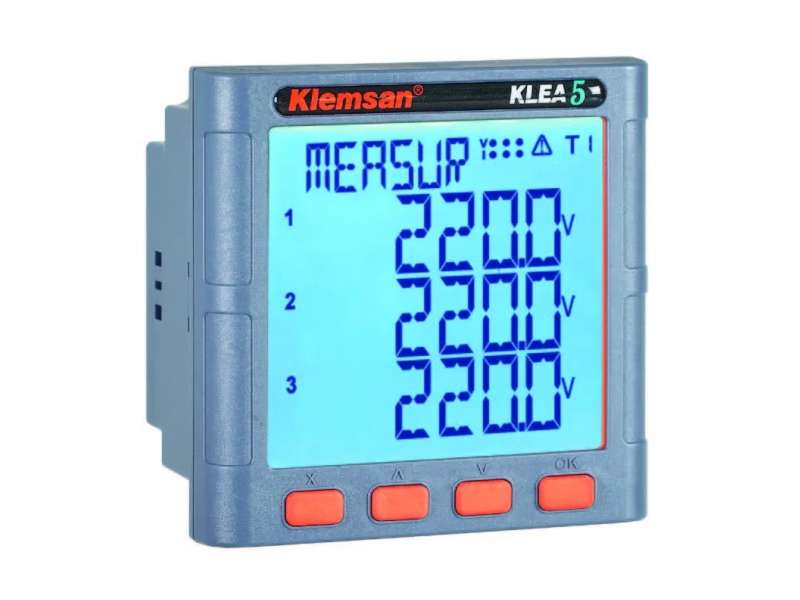

Klemsan 3Ø Energy Analyzer KLEA 506R, 0-6A CT; 606704
Klemsan 3Ø Energy Analyzer KLEA 506R; 606704...
Cena bez pdv-a: 44.738,19 |
Cena sa pdv-om: 53.685,82 |
Klemsan 3Ø Energy Analyzer KLEA 506R; 606704
GENERAL
LCD Screen
✅
Language Support
Turkish, English
Password Protection
✅
Networks
TT, TN, IT
Signal Waveforms
❌
Battery
❌
Real Time Clock
❌
Demand Period
1-60 min. adjustable.
Connection Type
3P4W, 3P3W
Packaging Quantity
1
Min/Max Data
✅
Demand Data
✅
Screen Refresh Period
1sn
ENERGY MEASUREMENT
Number of Tariffs
3
3Ø Phase Energy Measurement
✅
1Ø Energy Measurement
✅
Number of Reactive Measurement Zones
4
CURRENT MEASUREMENT INPUT
Measuring Range
5mA-6A AC
Overvoltage Category
300 V Cat II
Voltage Fluctuation Measurement
<2 kV
Power Consumption
<0.2 VA
Intermittent Overload
100 A for 1 sec
VOLTAGE MEASUREMENT INPUT
Overvoltage Category
300 V Cat III
Measuring Range L-N
1-300 Vrms
Measuring Range L-L
2-500 Vrms
Frequency Measuring Range
45-65 Hz
Power Consumption
<0.1 VA
POWER QUALITY MEASUREMENTS
Harmonic Measurement / Current and Voltage
31 e kadar
THDI
✅
THDV
✅
MEASURING ACCURACY - IEC 61557-12
Total Active Power
Class 0,5
Total Reactive Power
Class 1
Total Reactive Energy
Class 1
Frequency
Class 0.2
Current
Class 0.5
Neutral Current
Class 0.5
Voltage
Class 0.5
Power Factor
Class 0.2
THDV, THDI
Class 1
Total Apparent Power
Class 1
Total Active Energy
Class 0.5
MEASURING ACCURACY - IEC 62053-22
Total Active Energy
Class 1
MEASURING ACCURACY - IEC 62053-23
Total Reactive Energy
Class 2
ALARM RELAY OUTPUTS
POWER SUPPLY
Voltage
85-300V AC - 85-300V DC
Frequency
45-65Hz
Consumption
<3VA AC - <2.5W DC
MECHANICAL PROPERTIES
Protection Class
IP54
Mounting Type
Panel Mount
ENVIRONMENTAL CONDITIONS
Operating Temperature
-25°C +70°C
Storage Temperature
-30°C +80°C
Relative Humidity (Non-condensing)
Max. 95% (no condensation)
COMMUNICATION
Protocol
Modbus RTU
Baud Rate
1200-57600
Parity
Odd, Even, None
Stop Bit
1
Slave ID
1-247
Isolation
2750V RMS
TIME RECORDED DATA STORAGE
DIGITAL OUTPUT
Isolation Level
3750 Vrms
Number of Outputs
2
Voltage Switching Range
Transistor
Minimum Switching Frequency
5-30 VDC
DIGITAL INPUT
Minimum Counting Frequency
100 Hz, 10 ms
Input Type
Dry Contact
Number of Inputs
2
Isolation Level
3750 Vrms
ETHERNET INTERFACE
ANALOG OUTPUT
OTHER MEASUREMENTS
Operating Time Counter
✅
Open Time Counter
✅
Power Failure Counter
✅
BASIC ELECTRICAL MEASUREMENTS
Current
✅
Voltage
✅
Frequency
✅
Active Power
✅
Reactive Power
✅
Apparent Power
✅
Power Factor
✅
Cos Ø
✅
CABLE CROSS-SECTIONS POWER SUPPLY, VOLTAGE, RELAY
Multi-Core
2.5mm² - 14AWG
Single Core
4mm² - 12AWG, 2x1.5mm² - 2x16AWG
CABLE CROSS-SECTIONS CURRENT
Multi-Core
4mm² - 12AWG, 2x1.5mm² - 2x16AWG
Single Core
4mm² - 12AWG, 2x1.5mm² - 2x16AWG
CABLE CROSS-SECTIONS DIGITAL INPUT/OUTPUT, RS485, ANALOG OUTPUT
Multi-Core
1.5mm² - 16AWG
Single Core
1.5 mm²-16 AWG, 2x0.75 mm²- 2x18 AWG
-
KLEA 506R
-
klea-5-en
