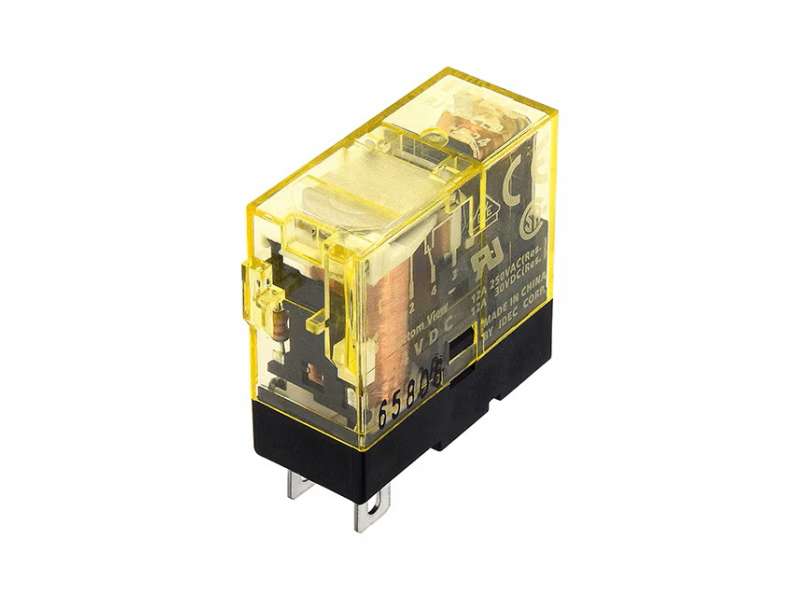

IDEC RJ Slim General Purpose Relay 1P, 230V AC, 12A, with LED; RJ1S-CL-A230
RJ Slim General Purpose Relay 1P, 230V AC, 12A, with LED; RJ1S-CL-A230...
Cena bez pdv-a: 693,16 |
Cena sa pdv-om: 831,80 |
RJ Slim General Purpose Relay 1P, 230V AC, 12A, with LED; RJ1S-CL-A230
Key Features
- Ideal for space saving application
- Compact size: 12.7mm width
- SPDT or DPDT (Form C or Form A contacts)
- Up to 16A rated contacts
- Electrical life: 200,000 cycles (AC Load) and 100,000 cycles (DC Load)
- Mechanical life: 30 million cycles (AC coil) and 50 million cycles (DC coil)
- Highly visible Indicator LED using IDEC' s unique light guide design
- RoHS Complaint (2002/95/EC)
Mechanical Specifications
| Product Type 1 | Slim Power Relay |
| Number of Poles | 1 |
| Contact Configuration | 1c |
| Operation Indicator | true |
| Auxiliary Function | |
| Terminal Shape | Plug in Terminal |
| Contact Structure | Single Contact |
Electrical Specifications
| Switching Current Range | 12A |
Electrical Specifications (coil rating)
| Rated Voltage 3 | 230VAC |
-
RJ catalog
