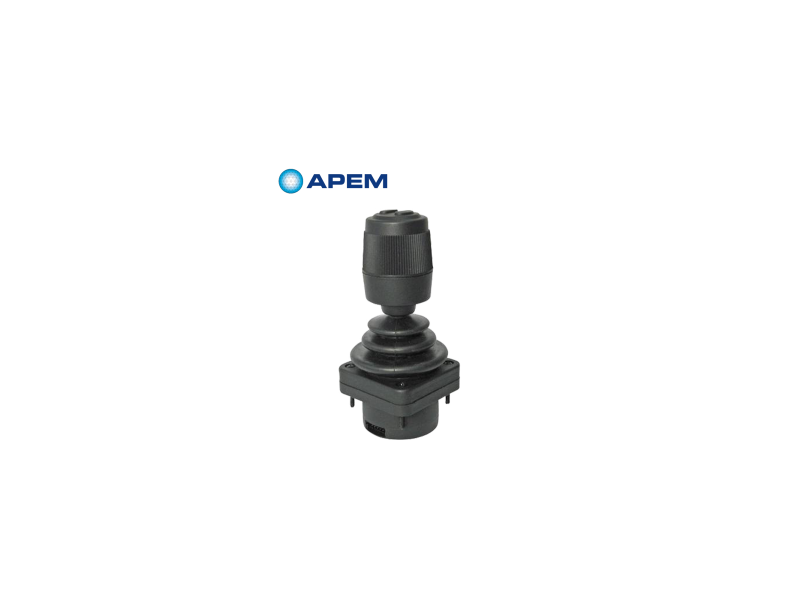

IDEC Mini Joystick, Joystick XF Series CANopen; EW9Z-1JYTS
Mini Joystick, Joystick XF Series CANopen; EW9Z-1JYTS...
Cena bez pdv-a: 20.456,31 |
Cena sa pdv-om: 24.547,57 |
Mini Joystick, Joystick XF Series CANopen; EW9Z-1JYTS
The XF Series joystick is a ruggedized finger operated joystick controller specifically engineered for vehicle applications. This new series is designed per the ISO 25197 standard and is rated to withstand 80lbf pull force across the X/Y axis and over 5Nm torque in the Z axis. With contactless Hall effect sensing, the XF Series provides long life proportional control for over five million lifecycles and is sealed up to IP67.
Key Features:
- Rugged design for vehicle applications
- Up to three axis
- CAN bus J1939 & CANopen protocol options
- USB protocol option
- Panel sealed up to IP67
- Break Out Force: 1.3N (0.3lbf)
- Operating Force: 2.8N (0.63lbf)
- Maximum Applied Force: 350N (78.00lbf)
- Deflection Angle: 36º (18º from center)
- Expected Life: 5 million
- Lever Action: Single spring, omnidirectional
- Handle with integrated operator presence
-
