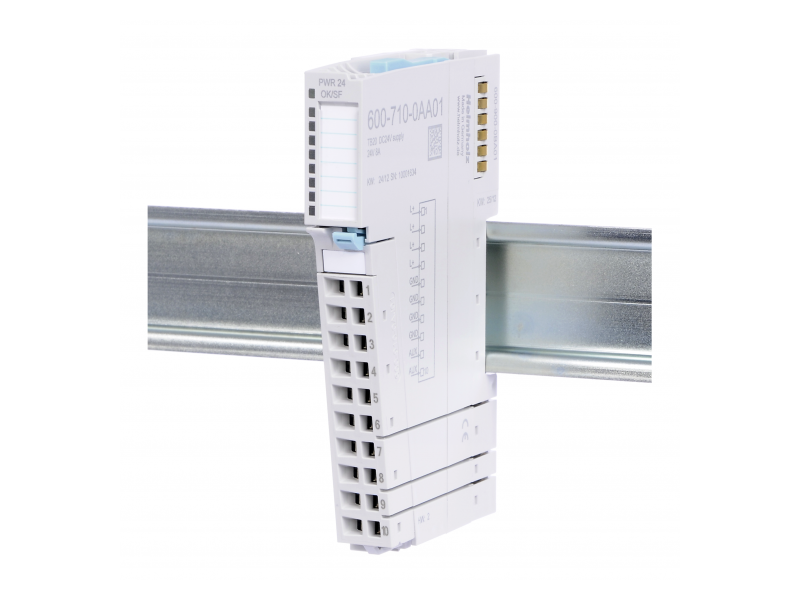

Helmholz System module – Power and isolation module DC 24 V, 8 A
The 24 V DC, 8 A power and isolation module serves as a power supply module for the power bus’ 24 V DC, GND, and AUX to the right, while segmenting the power...
Cena bez pdv-a: 2.573,50 |
Cena sa pdv-om: 3.088,20 |
The 24 V DC, 8 A power and isolation module serves as a power supply module for the power bus’ 24 V DC, GND, and AUX to the right, while segmenting the power bus on the left.
This module can be used to subdivide a power bus into individual segments.
- Powers the power bus to the right
- Segments the power bus to the left
- A green LED indicates the 24 V DC status
- A blue LED indicates the module's operating status
| General information | ||
|---|---|---|
| Order number | 600-710-0AA01 | |
| Article name | Power and isolation module DC 24 V, 8 A | |
| Scope of delivery | Power and isolation module DC 24 V | |
| Dimensions (DxWxH) | 110 x 14 x 73 mm | |
| Weight | Approx. 75 g | |
| Current draw | ||
| External | Max. 22 mA | |
| Internal | Max. 5 mA | |
| Power dissipation | Max. 0.3 W | |
| Load | ||
| Per contact | 8 A | |
| Total 24 VDC supply | 8 A | |
| Total GND supply | 8 A | |
| Total AUX supply | 8 A | |
| Hot-swap capable | Yes | |
| Ambient conditions | ||
| Ambient temperature | 0 °C … +60 °C | |
| Transport and storage temperature | -20 °C … +80 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Protection rating | IP 20 | |
| Certifications | CE, UL | |
| UL | ||
| Surrounding Air Temperature | 0 °C … +60°C | |
| Pollution degree | 2 | |
| CE | ||
| Noise immunity | DIN EN 61000-6-2 “EMC Immunity” | |
| Interference emission | DIN EN 61000-6-4 “EMC Emission” | |
| Vibration and shock resistance | DIN EN 60068-2-8:2008 “Vibration”, DIN EN 60068-27:2010 “Shock“ | |
| RoHS | Yes | |
| REACH | Yes | |
