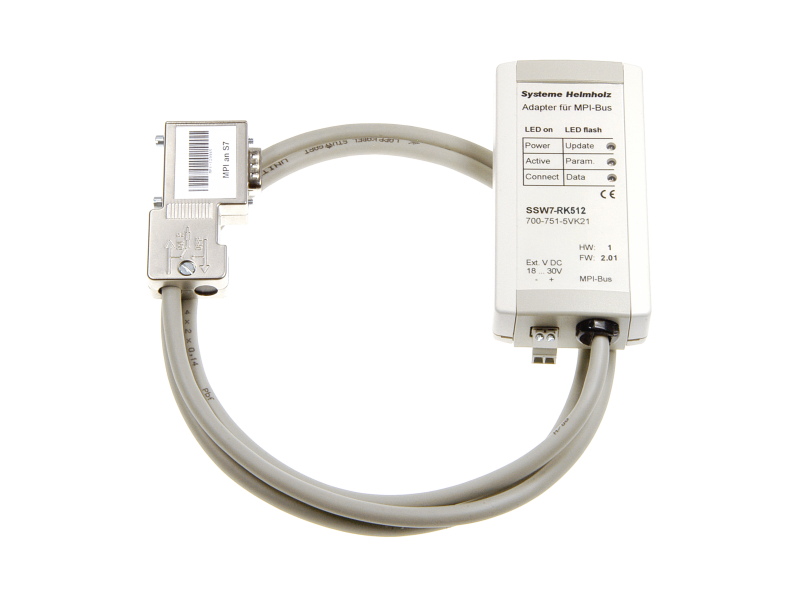

Helmholz SSW7-RK512, MPI adapter with RS422 interface, incl. manual
The SSW7- RK512 transmits data blocks, flags, inputs, and outputs. The MPI settings of the SSW7-RK512 can be changed by a parameterization program or with special...
Cena bez pdv-a: 58.329,87 |
Cena sa pdv-om: 69.995,85 |

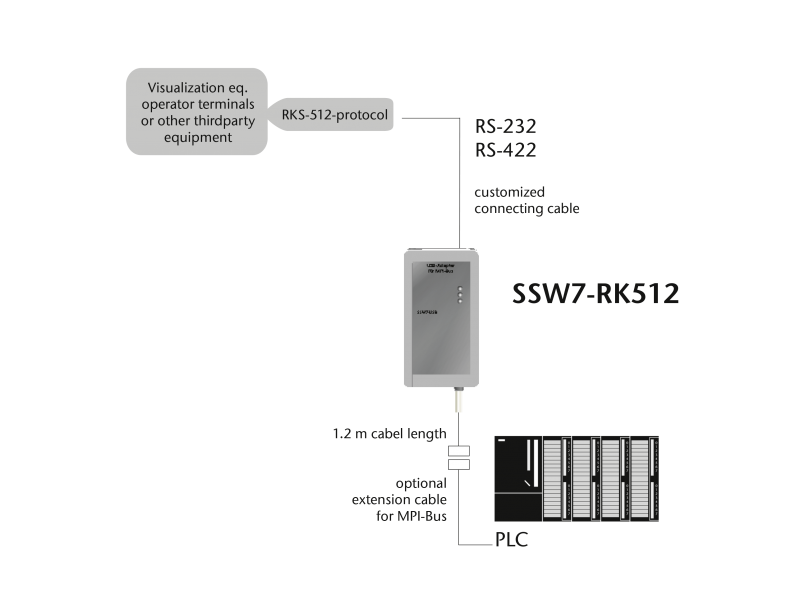

The SSW7- RK512 transmits data blocks, flags, inputs, and outputs.
The MPI settings of the SSW7-RK512 can be changed by a parameterization program or with special RK512 telegrams to connect several SSW7-RK512 units or several ADs to an MPI bus.
The SSW7-RK512 has automatic baud rate detection on the RS232 interface, which makes it possible to adapt to the connected device (from 9.6 to 115 kbps). The MPI interface operates at 187.5 kbps.
The SSW7-RK512 is supplied with voltage via the MPI bus of the CPU. With an optional 24 V connection, it can be used anywhere else in the system.
We provide the SSW7-RK512 with an additional programming interface on the connector, including a switchable terminating resistor.
The SSW7-RK512 is also available with RS422 interface.
Parameterization and diagnostic functions are possible using the SHTools software.
For a firmware update, download the latest SHTools version for free.
The MPI settings of the SSW7-RK512 can be changed by a parameterization program or with special RK512 telegrams to connect several SSW7-RK512 units or several ADs to an MPI bus.
The SSW7-RK512 has automatic baud rate detection on the RS232 interface, which makes it possible to adapt to the connected device (from 9.6 to 115 kbps). The MPI interface operates at 187.5 kbps.
The SSW7-RK512 is supplied with voltage via the MPI bus of the CPU. With an optional 24 V connection, it can be used anywhere else in the system.
We provide the SSW7-RK512 with an additional programming interface on the connector, including a switchable terminating resistor.
The SSW7-RK512 is also available with RS422 interface.
Parameterization and diagnostic functions are possible using the SHTools software.
For a firmware update, download the latest SHTools version for free.
| General information | ||
|---|---|---|
| Order number | 700-752-5VK21 | |
| Article name | SSW7-RK512, MPI adapter with RS422 interface | |
| Scope of delivery | SSW7-RK512, manual | |
| Dimensions (DxWxH) | 105 x 53 x 29 mm | |
| Weight | approx. 180 g | |
| Supply voltage | 24 V DC, 18...30 V | |
| Current draw | approx. 70 mA | |
| MPI interface | ||
| Transmission rate | 187,5 kbps | |
| Connection |
SUB-D, 9 pin with PG interface and terminating resistor |
|
| Communication interface | ||
| Type | RS422 | |
| Transmission rate | 19,2...115,2 kbps | |
| Protocol | RK512 with 3964/r | |
| Connection | Connector, SUB-D, 9 pin | |
| Protection rating | IP 20 | |
