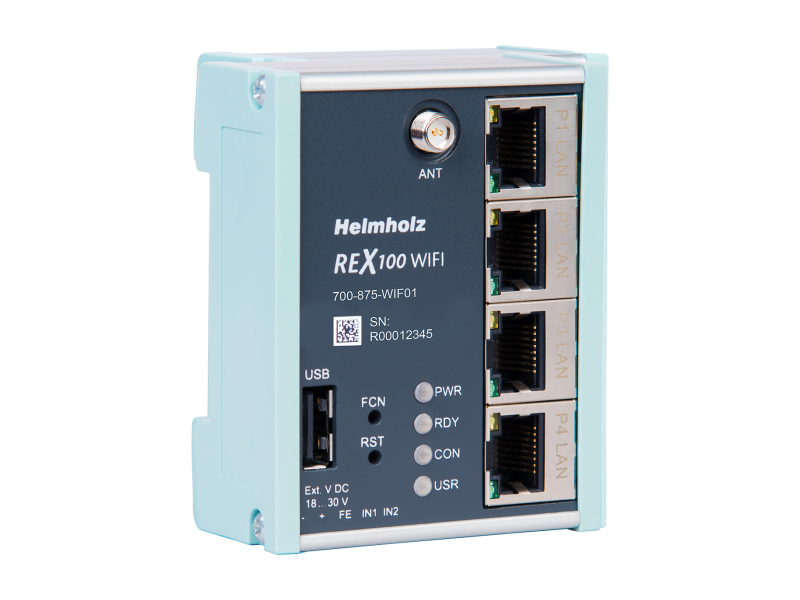

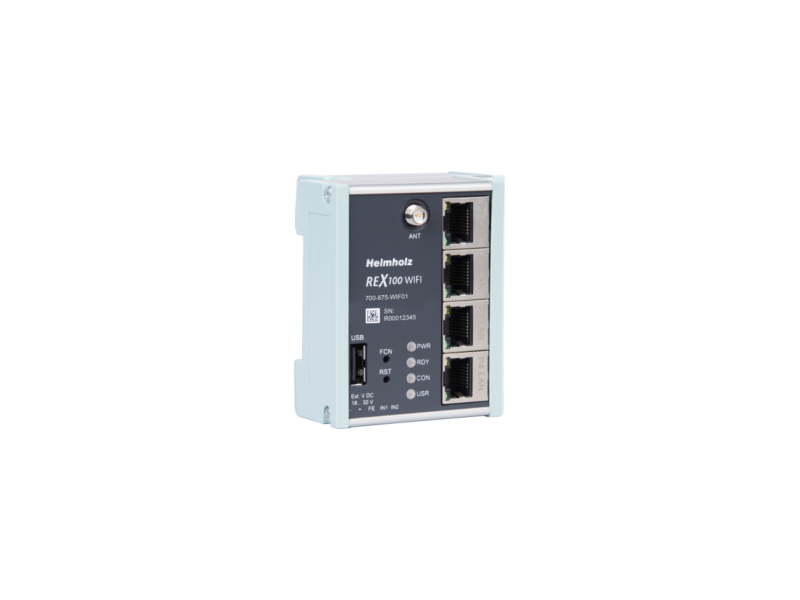

Helmholz REX 100 WiFi, 4 x LAN (switch)/1 x WiFi; 700-875-WIF01
The REX 100 routers are systematically designed to operate in conjunction with the myREX24 V2 portal: All programming and remote maintenance is carried out exclusively...
Cena bez pdv-a: 96.403,30 |
Cena sa pdv-om: 115.683,96 |

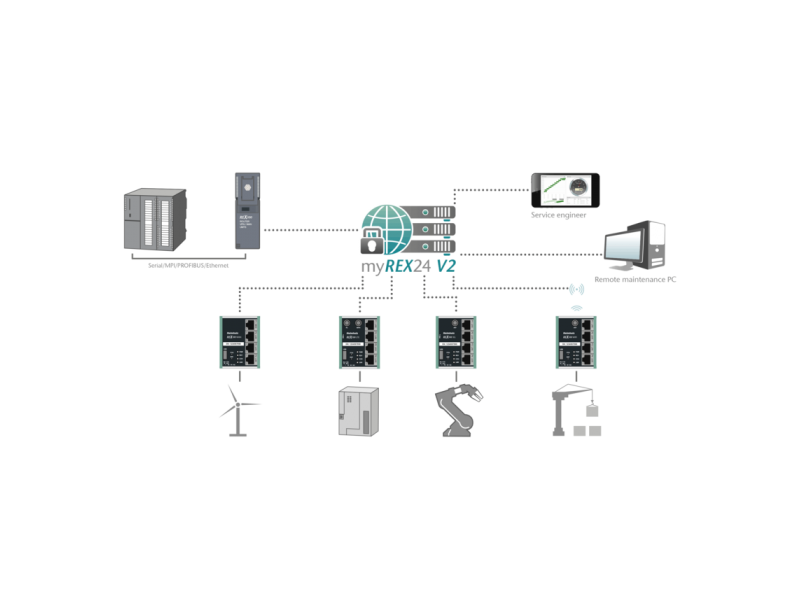

The REX 100 routers are systematically designed to operate in conjunction with the myREX24 V2 portal: All programming and remote maintenance is carried out exclusively through the portal.
With the digital inputs, alarms can be sent via the myREX24 V2 portal as SMS and e-mail.
The USB host port present in all devices enables the connection of USB devices (e.g. programming port of a drive) via the remote maintenance tunnel (USB-over-IP).
The REX 100 WiFi establishes the connection with the myREX 24 V2 portal via WLAN. Additional Ethernet participants can be connected at the router via the integrated 4-port switch. For data transmission, our industrial router uses an encrypted VPN tunnel on the basis of the secure OpenVPN protocol.
- Integrated firewall
- Digital inputs for establishing a connection and issuing alarms
- USB-over-IP
- Space-saving compact size
- Integrated 4-port LAN switch
- Secure OpenVPN remote maintenance access via myREX24 V2 portal
| General information | ||
|---|---|---|
| Order number | 700-875-WIF01 | |
| Article name | REX 100 WiFi, 4 x LAN (switch)/1 x WiFi | |
| Scope of delivery | REX 100 WiFi, Quick Start Guide | |
| Dimensions (DxWxH) | 32 x 59 x 76 mm | |
| Weight | Approx. 130 g | |
| Number of inputs | type | 2 | 24 V (DC), as per DIN EN 61131-2 Type 2 | |
| WiFi interface | ||
| Type | IEEE802.11b/g & 802.11n (1T1R mode), to 150 Mbps | |
| Frequency range |
EU (2,412 GHz - 2,472 GHz, 1-13 channels) USA (2,412 GHz-2,462 GHz, 1-11 channels) |
|
| Transmission speed |
802.11b: 1,2,5.5,11 Mbps 802.11g: 6,9,12,18,24,36,48,54 Mbps 802.11n: (20 MHz) MCS0-7, up to 72 Mbps 802.11n: (40 MHz) MCS0-7, up to 150 Mbps |
|
| Wireless security methods | WPA/WP2, 64/128/152 bit WEP, WPS | |
| LAN interface | ||
| Number | 4 | |
| Type | 10 Base-T/100 Base-T | |
| Connection | RJ45 socket | |
| Transmission rate | 10/100 Mbps | |
| USB interface | ||
| Protocol | USB 2.0 host | |
| Connection | USB A socket | |
| Status indicator |
4 LEDs, function status 8 LEDs, Ethernet status |
|
| Voltage supply | 24 V DC, 18–30 V DC | |
| Current draw | Max. 120 mA with DC 24 V | |
| Power dissipation | Max. 2.9 W | |
| Ambient conditions | ||
| Ambient temperature | 0 °C … +60 °C | |
| Transport and storage temperature | -40 °C … +60 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE, UL | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
| UL | ||
| UL | UL 61010-1/ UL 61010-2-201 | |
| Voltage supply | DC 24 V (18 ... 30 V DC, SELV and limited energy circuit) | |
| Pollution degree | 2 | |
| Altitude | Up to 2,000 m | |
| Temperature cable rating | 87 °C | |
