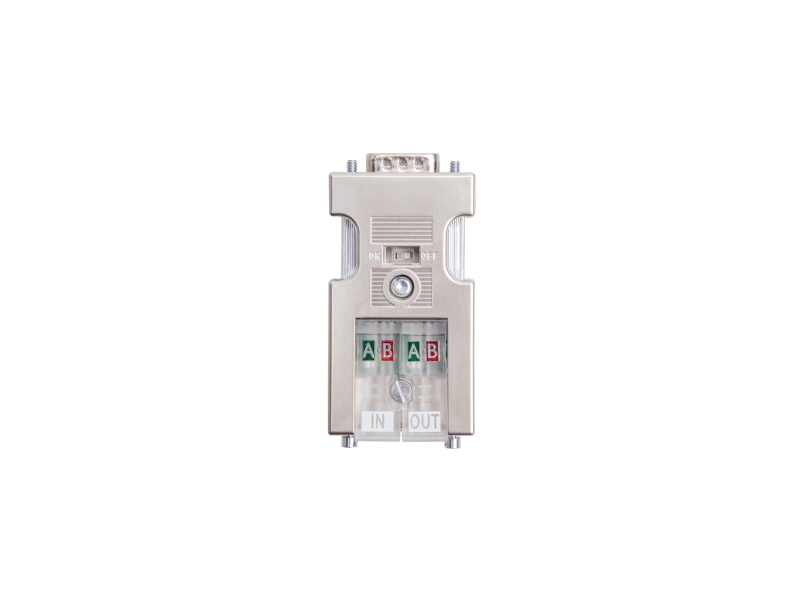

Helmholz PROFIBUS connector, axial, EasyConnect®
With the aid of a visual connection control, it is also possible to check that the PROFIBUS cable is correctly connected after it is mounted. For improved EMC compatibility,...
Trenutno nema na stanju
With the aid of a visual connection control, it is also possible to check that the PROFIBUS cable is correctly connected after it is mounted.
For improved EMC compatibility, the housing of the plug is metalized.
The EasyConnect® connector works in the extended ambient temperature range of -25 °C to +85 °C.
- Metalized housing
- No parts that can be lost
- Integrated switchable terminating resistor
- Axial cable outlet
- The PROFIBUS connectors are also available in packs of 10 or 50
- The maximum ambient temperature for UL is +60 °C
| General information | ||
|---|---|---|
| Order number | 700-972-0CA50 | |
| Article name | PROFIBUS connectors, axial, EasyConnect® | |
| Scope of delivery | PROFIBUS connector, installation instructions | |
| Dimensions (DxWxH) | 70 x 35 x 17 mm | |
| Weight | Approx. 50 g | |
| Cable outlet | Axial cable outlet, suitable for FastConnect stripping tool | |
| PROFIBUS interface | ||
| Number | 1 | |
| Transmission rate | max. 12 Mbps | |
| Connection | SUB-D connector, 9-pin | |
| Terminating resistor | Resistor combination integrated and switchable using slide switch | |
| PG connection socket | No | |
| PROFIBUS bus cable | FC standard cable, solid or flexible; 0.64 mm Ø, 60/75 °C copper cable | |
| Connector type | EasyConnect® | |
| Maximum outside diameter | 8.0 mm | |
| Voltage supply | +4.75 … +5.25 V DC (must come from the device) | |
| Current draw | Max. 35 mA | |
| Ambient conditions | ||
| Ambient temperature | -25 °C … +85 °C( The maximum ambient temperature for UL is +60 °C.) | |
| Transport and storage temperature | -25 °C … +85 °C | |
| Relative air humidity | 70 % at +25 °C | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE, UL | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
