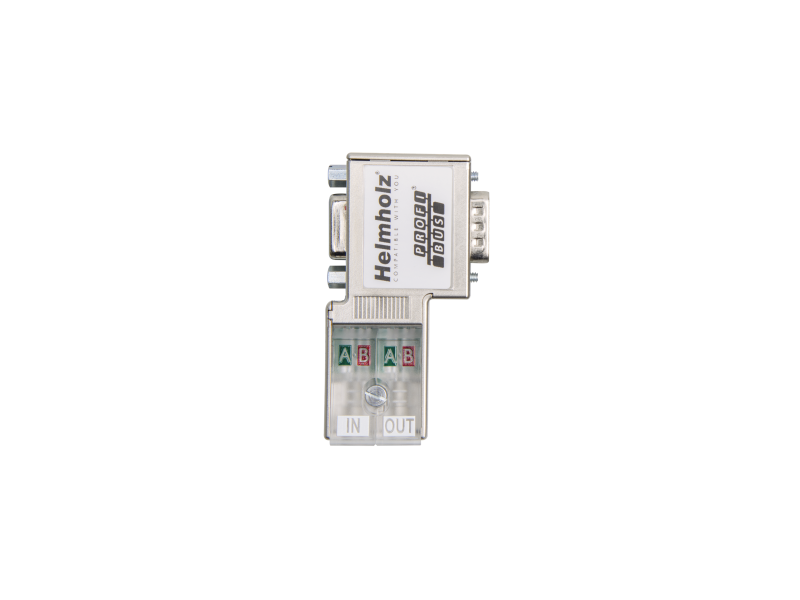

Helmholz PROFIBUS connector, 90°, EasyConnect®, with PG
With the aid of a visual connection control, it is also possible to check that the PROFIBUS cable is correctly connected after it is mounted. The housing is metalized...
Cena bez pdv-a: 5.134,06 |
Cena sa pdv-om: 6.160,88 |
With the aid of a visual connection control, it is also possible to check that the PROFIBUS cable is correctly connected after it is mounted.
The housing is metalized for improved electromagnetic compatibility.
The EasyConnect® connector works in the extended ambient temperature range of -25 °C to +85 °C.
Additional participants can be connected via the integrated PG interface.
- Metalized housing
- No parts that can be lost
- Integrated switchable terminating resistor
- 90° cable outlet
- Quick-connect technology EasyConnect®
- Visual connection control
- The PROFIBUS connectors are also available in packs of 10 or 50
- The maximum ambient temperature for UL is +60 °C
- Integrated PG interface
| General information | ||
|---|---|---|
| Order number | 700-972-0BB50 | |
| Article name | PROFIBUS connector, 90 °, EasyConnect®, with PG | |
| Scope of delivery | PROFIBUS connector, installation instructions | |
| Dimensions (DxWxH) | 72 x 40 x 17 mm | |
| Weight | Approx. 40 g | |
| Cable outlet | Vertical cable outlet, suitable for FastConnect stripping tool | |
| PROFIBUS interface | ||
| Number | 1 | |
| Transmission rate | max. 12 Mbps | |
| Connection | SUB-D connector, 9-pin | |
| Terminating resistor | Resistor combination integrated and switchable using slide switch | |
| PG connection socket | Yes | |
| PROFIBUS bus cable | FC standard cable, solid or flexible; 0.64 mm Ø, 60/75 °C copper cable | |
| Connector type | EasyConnect® | |
| Maximum outside diameter | 8.0 mm | |
| Voltage supply | +4.75 … +5.25 V DC (must come from the device) | |
| Current draw | Max. 12.5 mA | |
| Ambient conditions | ||
| Ambient temperature | -25 °C … +85 °C( The maximum ambient temperature for UL is +60 °C.) | |
| Transport and storage temperature | -25 °C … +85 °C | |
| Relative air humidity | 70 % at +25 °C | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE, UL | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
