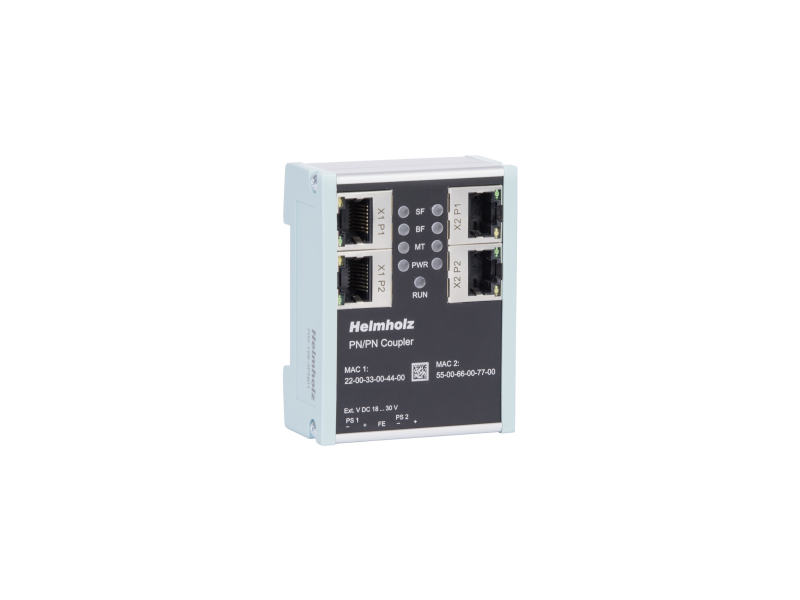

Helmholz PN/PN coupler, incl. Quick Start Guide, CD with GSDML file

Helmholz PN/PN coupler, incl. Quick Start Guide, CD with GSDML file

With the PN/PN coupler, a simple and uncomplicated connection of two separate PROFINET networks is possible. The PN/PN coupler enables data transmission between...

Brand: Helmholz
Šifra: 700-158-3PN02
Dostupnost: Proveriti dostupnost
Cena bez pdv-a: 68.046,62
Cena sa pdv-om: 81.655,95

With the PN/PN coupler, a simple and uncomplicated connection of two separate PROFINET networks is possible. The PN/PN coupler enables data transmission between two PROFINET controllers. A PROFINET IO device is on both PROFINET network sides. Received input data on one of the network sides is made available as output data to the other network side. The IO data transfer takes place live and as quickly as possible without additional handling blocks.

The maximum size of the transmitted IO data is 1024 bytes. Up to 16 slots for IO modules of 1 byte and up to 128 bytes are available. The incorporation into the PLC engineering tool is made possible by a GSDML file; special configuration software isn’t necessary.

  • Very compact design for DIN rail mounting
  • Exchange of up to 1024 bytes of I / O data
  • Redundant power supply
  • Galvanic separation of the nets
  • Configuration only with GSDML file, no further software required
  • No influence on the opposite side in case of failure of the bus system
  • PROFINET transmission rate 100 Mbps
General information
  Order number 700-158-3PN02
  Article name PN/PN coupler
  Scope of delivery PN/PN coupler, Quick Start Guide and CD with GSDML file
  Dimensions (DxWxH) 35 x 58 x 72 mm
  Weight Approx. 135 g
PROFINET interface
  Number 2 with 2 ports each
  Protocol PROFINET IO as defined in IEC 61158-6-10
  Physical layer Ethernet
  Transmission rate 100 Mbps full duplex
  I/O image size max. 1024 bytes
  Connection 4x RJ45
  integrated switch Yes
  Features Media redundancy (MRP client), automatic addressing, topology detection (LLDP, DCP), diagnosis alarms
Voltage supply
  Voltage supply 24 V DC (18 - 28 V DC)
  Current draw max. 210 mA
Ambient conditions
  Ambient temperature 0 °C to 60 °C
  Transport and storage temperature -20 °C to 80 °C
  Protection rating IP 20
  Certifications CE
CE
  RoHS Yes
  REACH Yes
