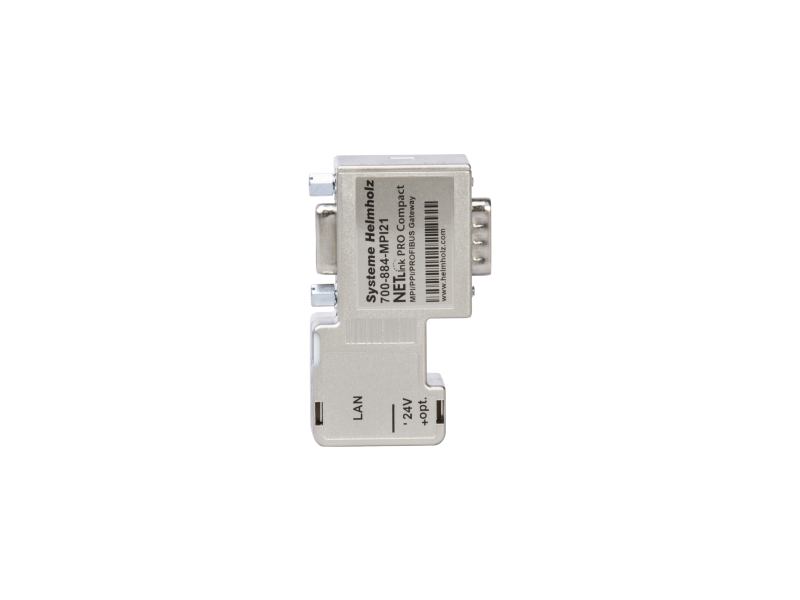

Helmholz NETLink® PRO Compact, 3 m Ethernet cable

In general, connection to each MPI/PROFIBUS terminal of the bus system or directly at the interfaces of active and passive participants is also possible. The PG...

Brand: Helmholz
Šifra: 700-884-MPI21
Dostupnost: Proveriti dostupnost
Cena na upit

In general, connection to each MPI/PROFIBUS terminal of the bus system or directly at the interfaces of active and passive participants is also possible. The PG socket integrated in the connector housing allows connection of additional devices.
The integrated web interface offers parameterization, diagnostic, and security features, and for functional enhancements, the user can use our free diagnostic software SHTools to, for example, automatically perform firmware updates. The latest version is available for download.

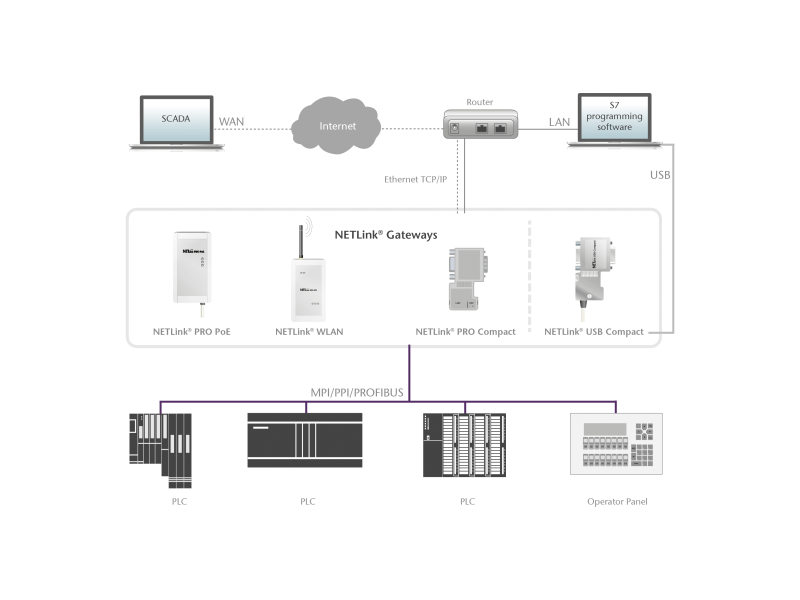

The NETL ink® PRO Compact is a communications processor in the plug format for programming, visualization, and remote maintenance. It combines flexibility and a compact design. Power is supplied to the NETL ink® either through the CPU of the automation device or externally with DC 24 V as an option. The network connection can be used with any standard Cat-5 cable, making cable lengths up to 100 meters feasible without additional components.

  • RFC 1006 (ISO on TCP)
  • CPU-to-CPU communication (with S7-300* and S7-400*)
  • Support for all common S7 engineering tools
  • Dynamic address assignment using DHCP
  • Security functions for securing TCP/IP access
  • Switchable PLC write protection
  • Up to 16 TCP connections
  • Up to 32 MPI/PROFIBUS connections
  • Easy configuration via web interface
  • Variables can be monitored in a browser window
  • Support for slave configuration
  • Electrical isolation for MPI/PPI/PROFIBUS
  • MPI/PPI/PROFIBUS from 9.6 kbps to 12 Mbps
  • For S7-200*, S7-300*, S7-400*
  • Power can be supplied by the CPU or, alternatively, by an external DC 24 V supply
General information
  Order number 700-884-MPI21
  Article name NETL ink® PRO Compact
  Scope of delivery NETL ink® PRO Compact, 3m Ethernet cable, Quick Start Guide, CD with software, and manual
  Dimensions (DxWxH) 64 x 40 x 17 mm
  Weight Approx. 110 g
Communication interface
  Number 1
  Type 10 Base-T
100 Base-TX
  Transmission rate 10/100 Mbps autom. detection
  Physical layer Ethernet
  Protocol FDL, RFC 1006
  Connection RJ45
MPI/PPI/PROFIBUS interface
  Number 1
  Type RS485, isolated
  Transmission rate max. 12 Mbps autom. detection
  Connection SUB-D male connector, 9-pin. with PG interface and repeater
Status indicator 5 LEDs, 2 of them bi-color
Voltage supply 24 V DC, 18–30 V DC
Current draw Max. 200 mA with DC 24 V
Ambient conditions
  Ambient temperature 0 °C ... +60°C
  Transport and storage temperature -20 °C … +80 °C
  Relative air humidity 95 % r H without condensation
  Pollution degree 2
  Protection rating IP20
  Certifications CE
CE
  RoHS Yes
  REACH Yes
