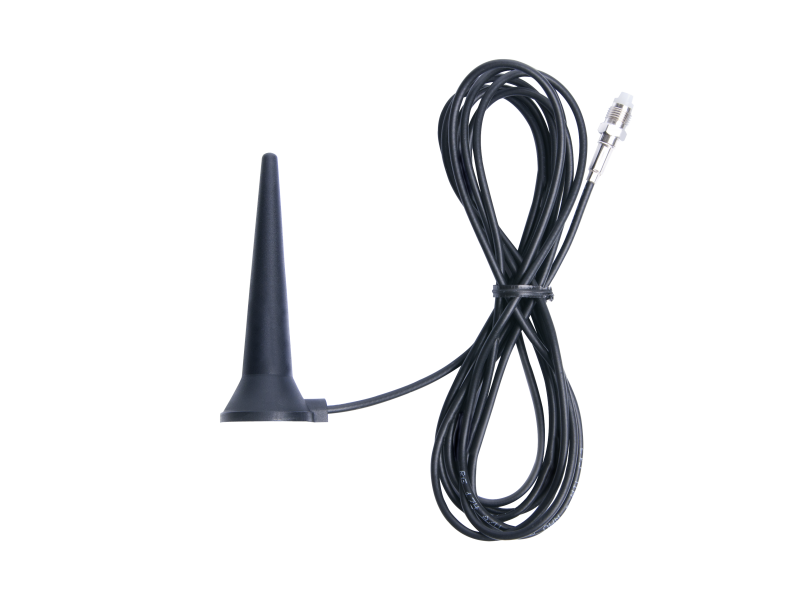

Helmholz Magnetic base quadband antenna, GSM/UMTS, 2 dBi, incl. 2.5 m cable, FME female connector
Gain 2 dBi 2,5 m cable length FME female connector...
Trenutno nema na stanju
- Gain 2 dBi
- 2,5 m cable length
- FME female connector
| General information | ||
|---|---|---|
| Order number | 700-751-ANT12 | |
| Article name | Magnetic base quadband antenna, GSM/UMTS, 2 dBi, 2.5 m cable, FME female connector | |
| Scope of delivery | Magnetic base quadband antenna, incl. cable | |
| Weight | 65 g | |
| Ambient temperature | -40° ... +80° | |
| Radio networks | GSM Europa/USA | DCS-PCS Europa/USA | UMTS | |
| Frequency range | 824 – 960 MHz | 1710 – 1990 MHz | 1920 – 1990 MHz (uplink tr.) | 2110 – 2170 MHz (downlink ric.) | 1900 – 1920 MHz (uplink tr.) | 2010 – 2025 MHz (downlink ric.) | |
| Impedance | 50 Ω | |
| Max. input power | 20 W | |
| VSWR | < 1.6 | < 1.5 | < 2.0 | |
| Polarization | Vertical | |
| Radiation pattern | Omni-directional | |
| Gain | 2.14 dBi | |
| Cable length | 2,5 m, RG 174 | |
| Connector type | FME (f) | |
