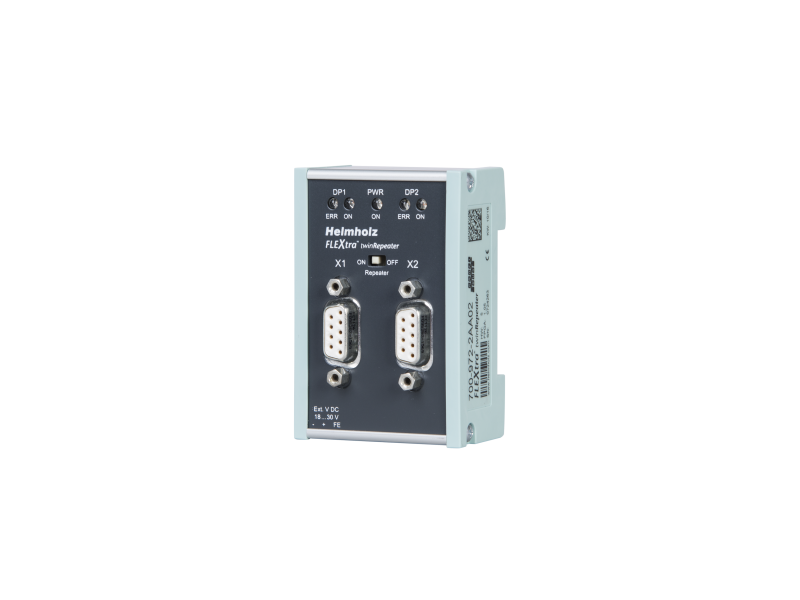

Helmholz FLEXtra® twinRepeater set incl. 2 PROFIBUS connectors, 90°, screw terminal, with PG
It regenerates the incoming electrical signal on a bus line and retransmits it (bit reshaping and retransmission). The signals are restored in level, slope, and...
Cena bez pdv-a: 35.563,41 |
Cena sa pdv-om: 42.676,10 |
It regenerates the incoming electrical signal on a bus line and retransmits it (bit reshaping and retransmission).
The signals are restored in level, slope, and duty cycle.
The FLEXtra® twinRepeater supports data rates of 9.6 kbps to 12 Mbps and recognizes them automatically.

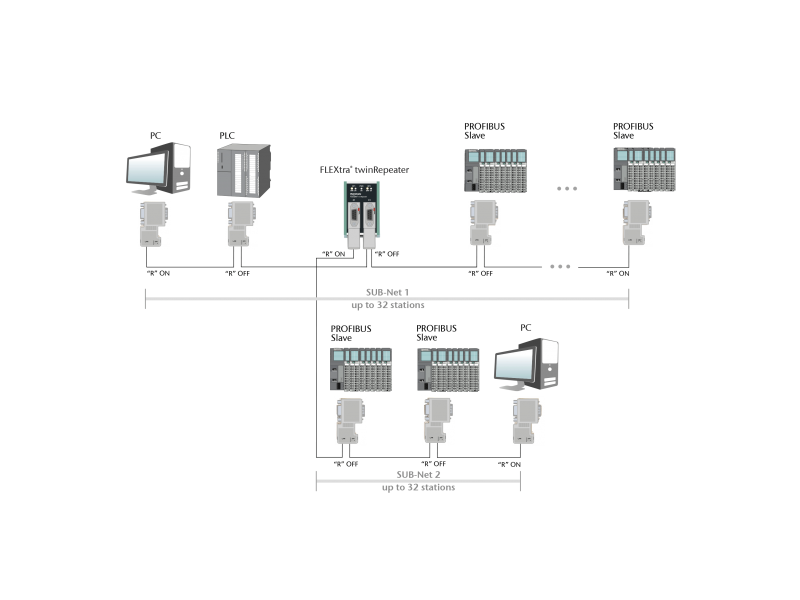

It can be used for bus extension (up to 1 km with 2 FLEXtra® twinRepeaters), to increase the number of participants, and to expand the system. At the same time, use in MPI networks is possible. As a special application option, the FLEXtra® twinRepeater allows the setup of stubs as separate segments.
The status LEDs integrated for each segment provide a quick overview of the current bus status. Furthermore, the FLEXtra® twinRepeater provides electrical isolation between the two PROFIBUS segments.
In addition, it has a switch to turn off the repeating function. The segments are separated but continue to function for themselves.
PROFIBUS connectors are required for connection to the PROFIBUS cable.
This set contains the PROFIBUS connector 90° diagnosis with proven screw terminal and with PG interface required for connection with a PROFIBUS cable.
- Can be used for bus extension or as a spur line
- Increase the number of participants
- System expansion
- Can also be used in MPI networks
- Status LEDs for each segment
- Repeating function can be switched off
- Electrical isolation
- incl. 2 x PROFIBUS connectors, 90°, screw terminal with PG (700-972-0BB12)
General information | ||
---|---|---|
Order number | 700-972-2XA02 | |
Article name | FLEXtra® twinRepeater set | |
Scope of delivery | FLEXtra® twinRepeater set incl. 2 PROFIBUS connectors, 90°, screw terminal, with PG, instructions | |
Dimensions (DxWxH) | 35 x 51 x 72 mm | |
Weight | Approx. 110 g | |
PROFIBUS interface | ||
Number | 2 | |
Protocol | PROFIBUS-DP | |
Transmission rate | max. 12 Mbps, autom. detection | |
Connection | SUB-D female connector, 9-pin | |
Segment connection | Via PROFIBUS connectors | |
Status indicator | 5 LEDs | |
Voltage supply | 24 V DC, 18–30 V DC | |
Current draw | Typ. 60 mA with DC 24 V, without load | |
Output voltage per segment | 5 V, 150 mA | |
Electrical isolation | 500 V, between the segments | |
Ambient conditions | ||
Ambient temperature | 0 °C ... +60 °C | |
Transport and storage temperature | -25 °C … +75 °C | |
Relative air humidity | 95 % r H without condensation | |
Pollution degree | 2 | |
Protection rating | IP20 | |
Certifications | CE | |
CE | ||
RoHS | Yes | |
REACH | Yes |
