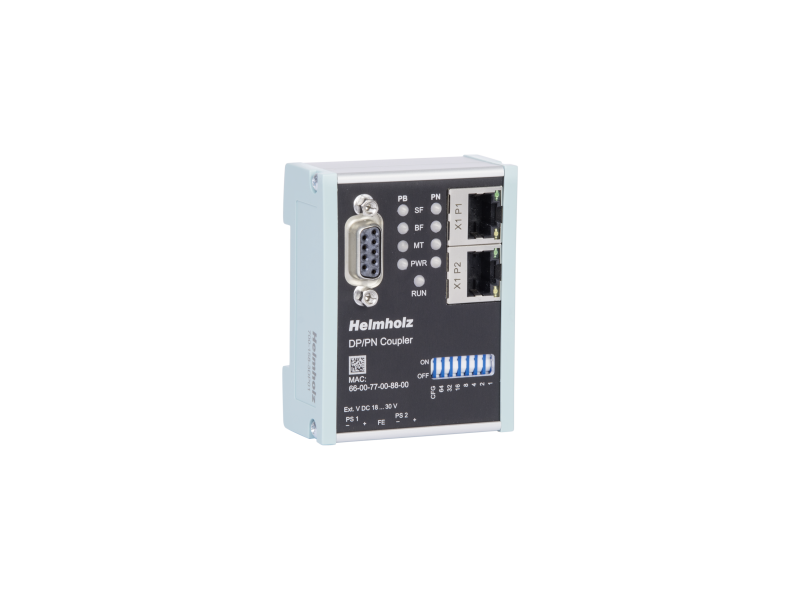

Helmholz DP/PN coupler, incl. Quick Start Guide, CD with GSD/GSDML file
With the new DP/PN coupler, a simple and uncomplicated connection of PROFIBUS to PROFINET is possible. It allows data transfer between a PROFIBUS master and a PROFINET...
Cena bez pdv-a: 61.850,95 |
Cena sa pdv-om: 74.221,13 |
With the new DP/PN coupler, a simple and uncomplicated connection of PROFIBUS to PROFINET is possible. It allows data transfer between a PROFIBUS master and a PROFINET controller. The maximum size of the transmitted data is 244 bytes of input data and 244 bytes of output data. The DP/PN coupler is projected via a GSD file on the PROFIBUS side and a GSDML file on the PROFINET side. No additional configuration software is necessary.
- Very compact design for DIN rail mounting
- Exchange of up to 244 bytes I/O data
- Redundant power supply
- Galvanic separation of the networks
- No influencing of the opposite side in the event of bus system failure
- Setting of the PROFIBUS addresses using DIP switches or software
- Configuration only with GSD/GSDML file; no additional software necessary
- PROFIBUS up to 12 Mbps
- PROFINET transmission rates of 100 Mbps
General information | ||
---|---|---|
Order number | 700-158-3DP02 | |
Article name | DP/PN coupler | |
Scope of delivery | DP/PN coupler, Quick Start Guide | |
Dimensions (DxWxH) | 35 mm x 58 mm x 72 mm | |
Weight | approx. 135 g | |
PROFINET interface | ||
Number | 2 | |
Protocol | PROFINET IO as defined in IEC 61158-6-10 | |
Transmission rate | 100 Mbps full duplex | |
Connection | 2x RJ45, integrated switch | |
Features | Media Redundancy Protocol (MRP), automatic addressing, topology detection (LLDP, DCP), diagnosis alarm | |
PROFIBUS interface | ||
Protocol | PROFIBUS-DP | |
Transmission rate | max. 12 Mbps, autom. detection | |
I/O image size | max. 244 bytes of input / 244 bytes of output data | |
Connection | 9-pin D-sub female connector | |
Status indicator | 9 LEDs function status, 4 LEDs Ethernet status | |
Voltage supply | ||
Voltage supply | 24 V DC (18 ... 28 V DC) | |
Current draw | max. 210 mA | |
Ambient conditions | ||
Ambient temperature | 0 °C to 60 °C | |
Transport and storage temperature | -20 °C to 80 °C | |
Protection rating | IP 20 | |
Certifications | CE | |
CE | ||
RoHS | Yes | |
REACH | Yes |
