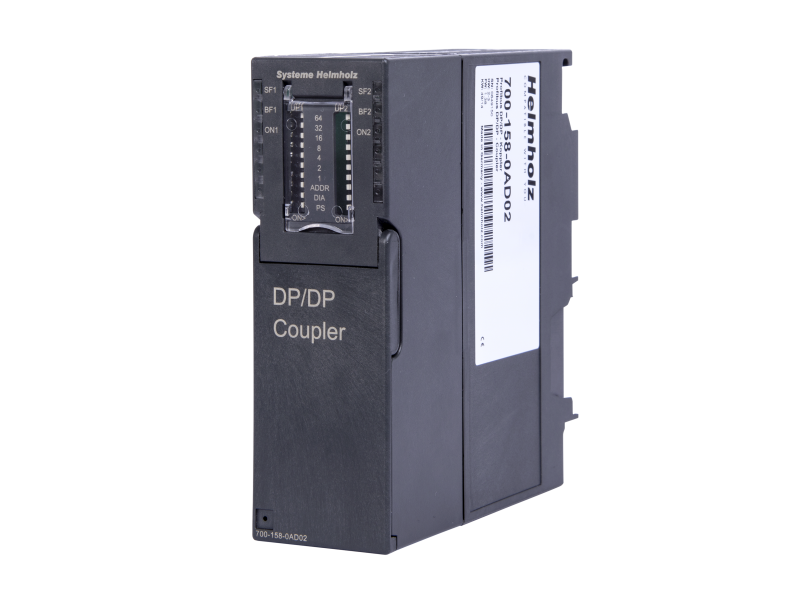

Helmholz DP/DP coupler, incl. manual
The maximum size of the transmitted data is 244 bytes of input data and 244 bytes of output data. The DP/DP coupler is configured in the S7 software or with a GSD...
Trenutno nema na stanju
The maximum size of the transmitted data is 244 bytes of input data and 244 bytes of output data. The DP/DP coupler is configured in the S7 software or with a GSD file.
- Exchange of up to 244 bytes of input and 244 bytes of output data between two PROFIBUS networks
- Redundant power supply
- Electrical isolation between the PROFIBUS networks
- Setting of the PROFIBUS addresses using DIP switches or software
- PROFIBUS-DP up to 12 Mbps
| General information | ||
|---|---|---|
| Order number | 700-158-0AD02 | |
| Article name | DP/DP coupler | |
| Scope of delivery | DP/DP coupler, manual | |
| Dimensions (DxWxH) | 116 x 40 x 125 mm | |
| Weight | Approx. 250 g | |
| PROFIBUS interface | ||
| Number | 2 | |
| Protocol | PROFIBUS-DP | |
| Transmission rate | 9.6 ... 12 Mbps | |
| I/O image size | max. 244 bytes of input / 244 bytes of output data | |
| Connection | SUB-D male connector, 9-pin | |
| Voltage supply | 24 V DC, 18–30 V DC | |
| Current draw | typ. 200 mA with DC 24 V | |
| Ambient conditions | ||
| Ambient temperature | 0 °C ... +60 °C | |
| Transport and storage temperature | -20 °C … +80 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
