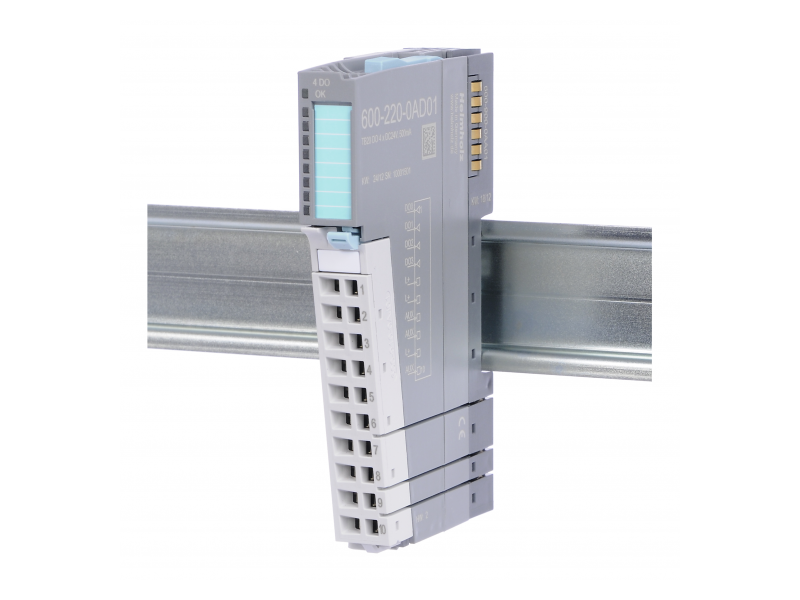

Helmholz Digital output module – DO 4 x DC 24 V, 500 mA
24 V DC output voltage 500 mA output current per channel A blue LED indicates the module's operating status Green LEDs (one for each output) indicate the output...
Cena bez pdv-a: 4.526,25 |
Cena sa pdv-om: 5.431,50 |
- 24 V DC output voltage
- 500 mA output current per channel
- A blue LED indicates the module's operating status
- Green LEDs (one for each output) indicate the output status
- 4 outputs, electrically isolated from the backplane bus
| General information | ||
|---|---|---|
| Order number | 600-220-0AD01 | |
| Article name | DO 4x DC 24 V, 500 mA | |
| Scope of delivery | DO 4x DC 24 V, 500 mA | |
| Dimensions (DxWxH) | 110 x 14 x 73 mm | |
| Weight | Approx. 70 g | |
| Number of outputs | 4 | |
| Electrical isolation | ||
| from the backplane bus | Yes | |
| Between the channels | No | |
| Supply voltage UP, US | ||
| Rated value | 24 V DC | |
| Ripple USS | max. 3.6 V | |
| Permissible range (with ripple) | 20 … 30 V | |
| Voltage for t < 10 ms | 50 V | |
| Output current | ||
| Rated value | 500 mA | |
| Leakage current | Max. 0.5 mA | |
| Current draw | ||
| External | max. 20 mA + Load | |
| Internal | max. 30 mA | |
| Power dissipation | Max. 1.0 W | |
| Output short-circuit protection | Electronic, for each individual channel | |
| Inductive cutoff voltage limit | -48 V | |
| Hot-swap capable | Yes | |
| Ambient conditions | ||
| Ambient temperature | 0 °C … +60 °C | |
| Transport and storage temperature | -20 °C … +80 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Protection rating | IP 20 | |
| Certifications | CE, UL | |
| UL | ||
| Surrounding Air Temperature | 0 °C … +60°C | |
| Pollution degree | 2 | |
| CE | ||
| Noise immunity | DIN EN 61000-6-2 “EMC Immunity” | |
| Interference emission | DIN EN 61000-6-4 “EMC Emission” | |
| Vibration and shock resistance | DIN EN 60068-2-8:2008 “Vibration”, DIN EN 60068-27:2010 “Shock“ | |
| RoHS | Yes | |
| REACH | Yes | |
