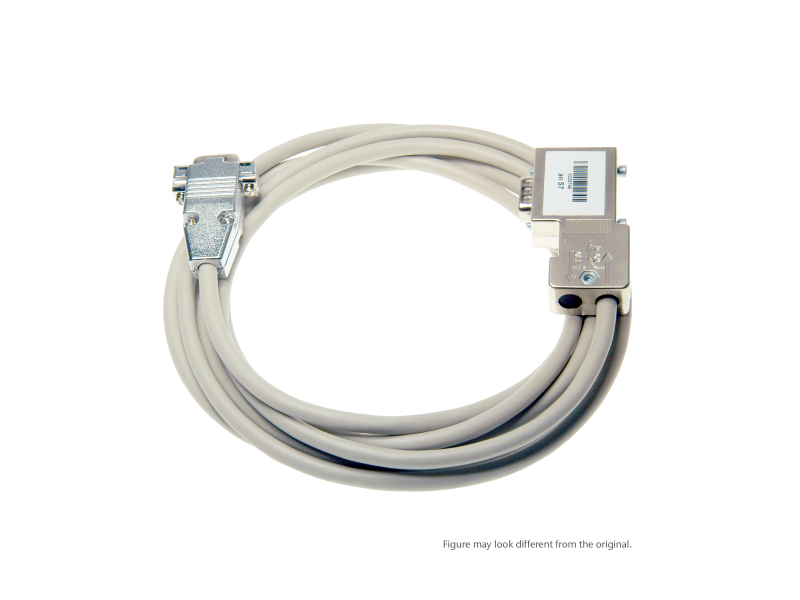

Helmholz Active dropcable PROFIBUS for PG, with 35° PROFIBUS connector, 3 m
The active dropcable PROFIBUS is used for easy connection of a PG to an existing PROFIBUS network. Due to the integrated electronics, it is not a stub....
Cena bez pdv-a: 9.875,46 |
Cena sa pdv-om: 11.850,55 |

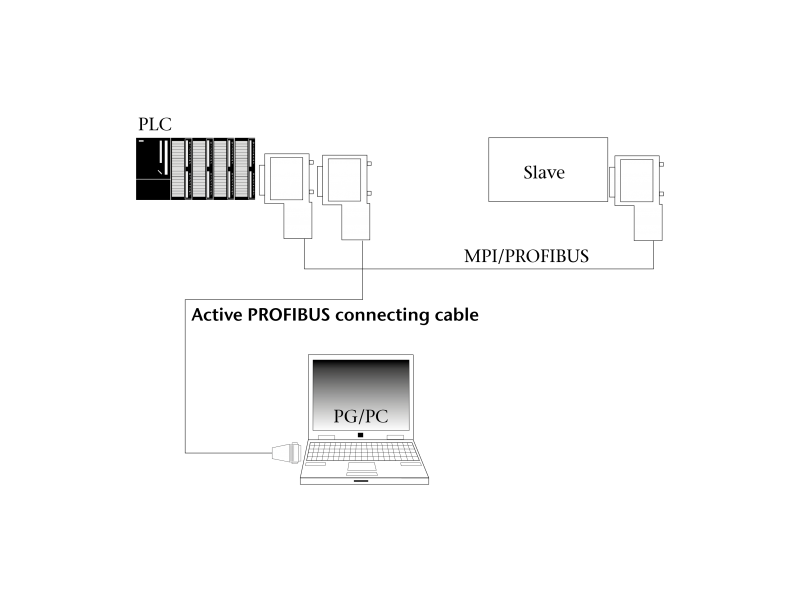

The active dropcable PROFIBUS is used for easy connection of a PG to an existing PROFIBUS network. Due to the integrated electronics, it is not a stub.
| General information | ||
|---|---|---|
| Order number | 700-901-4BD10 | |
| Article name | Active dropcable PROFIBUS for PG with 35° PROFIBUS connector, 3 m | |
| Scope of delivery | Dropcable PROFIBUS, 3 m, Instruction | |
| Weight | approx. 260 g | |
| Connection | SUB-D connector, 9-pin | |
| Voltage supply | 5 V DC | |
| Current draw | max. 100 mA at 5 V DC | |
| Ambient conditions | ||
| Ambient temperature | 0 °C ... +60 °C | |
| Transport and storage temperature | -25 °C … +75 °C | |
| Relative air humidity | 95 % r. H. without condensation | |
| Pollution degree | 2 | |
| Certifications | CE | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
