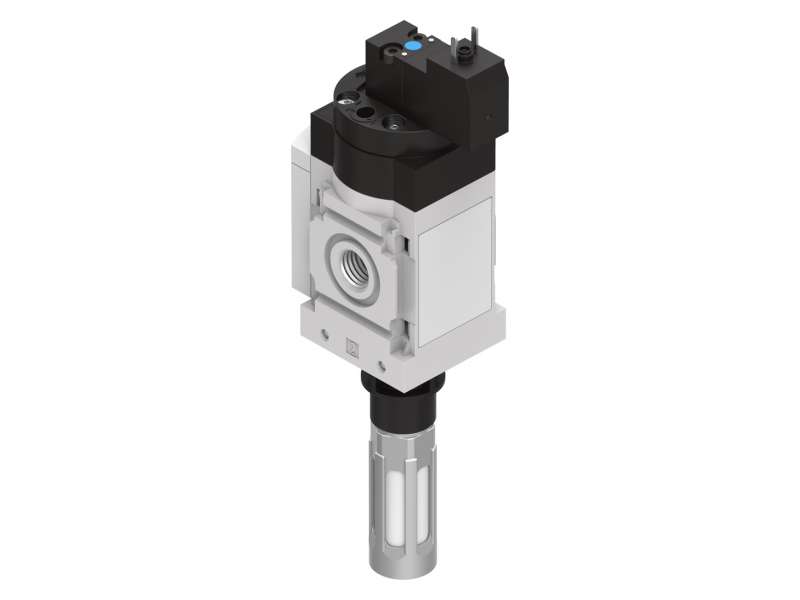

Festo Shut off valve MS4-EE-1/4-10V24-S ; 542598

MS4-EE-1/4-10V24-S Part no. 542598 Electric 3/2-way valve for pressurizing and venting pneumatic installations A muffler can be attached or the exhaust air can be...

Brand: festo
Šifra: 542598
Dostupnost: Proveriti dostupnost
Cena na upit
MS4-EE-1/4-10V24-S Part no.  542598
  • Electric 3/2-way valve for pressurizing and venting pneumatic installations
  • A muffler can be attached or the exhaust air can be ducted at port 3
  • Supply voltage 24 V DC, 110, 230 V AC
  • With optional pressure gauge and pressure sensor
  • With solenoid coil, without plug socket
  • Size: 4
Type code
MS4-EE
Design
Piston gate valve
Actuation type
Electrical
Exhaust air function
Without flow control option
Manual override
Non-detenting
Reset method
Mechanical spring
Type of control
Pilot-controlled

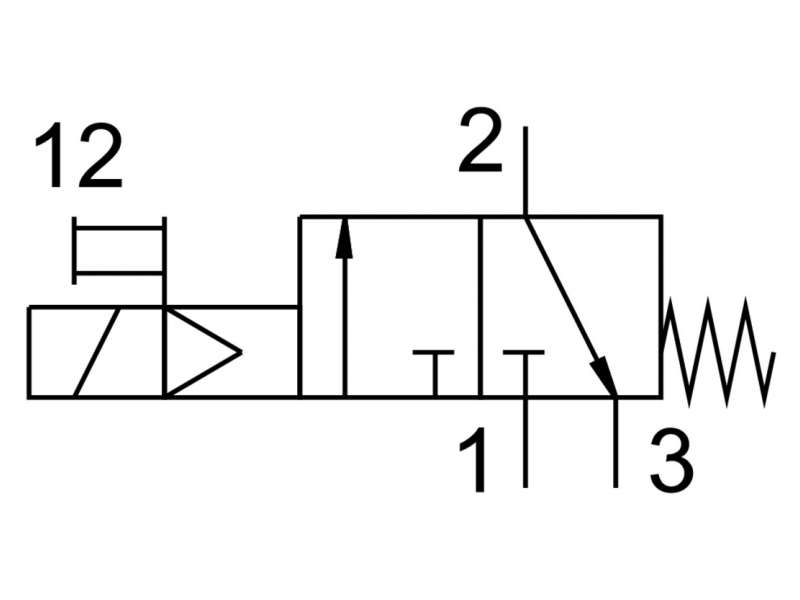

Symbol
00991008
Valve function
3/2, closed, monostable
Operating pressure
4 bar ... 10 bar
C value
9.5 l/sbar
b-value
0.44
Standard nominal flow rate
2000 l/min
Duty cycle
100%
Coil characteristics
24 V DC: 1.8 W
Operating medium
Inert gas
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Note on materials
RoHS-compliant
Temperature of medium
-10 °C ... 50 °C
Degree of protection
IP65
Ambient temperature
-10 °C ... 50 °C
Type of mounting
With accessories
Optionally:
Line installation
Mounting position
Any
Flow direction
Non-reversible
Product weight
289 g
Pneumatic connection 1
G1/4
Pneumatic connection 2
Pneumatic connection 3
G1/4
Pilot air supply port
Internal
Electrical connection
as per DIN EN 175301-803
Form C
Rectangular design
Plug
Seals material
NBR
Housing material
Die-cast aluminum
For use in the food industry
See supplementary material information
  • 542598datasheet

    542598datasheet

  • MS-START-UP-EXHAUST-VALVES ENUS

    MS-START-UP-EXHAUST-VALVES ENUS
