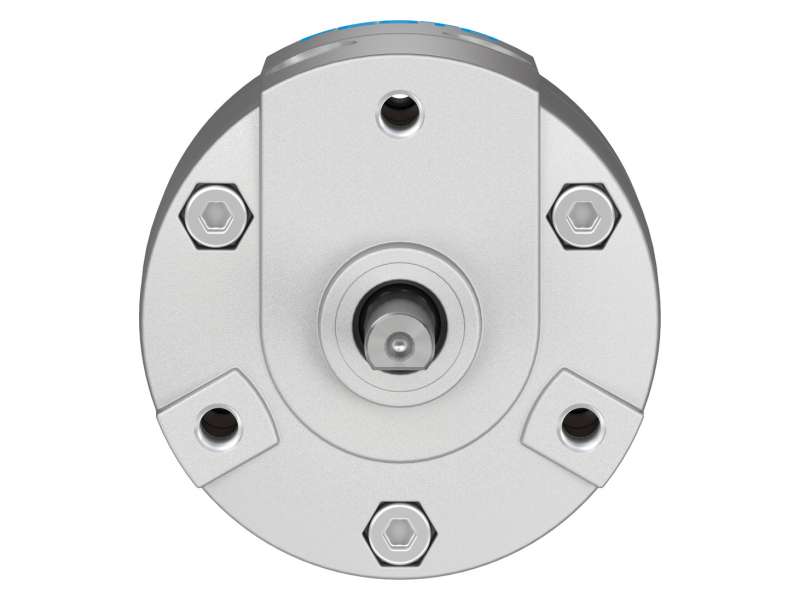

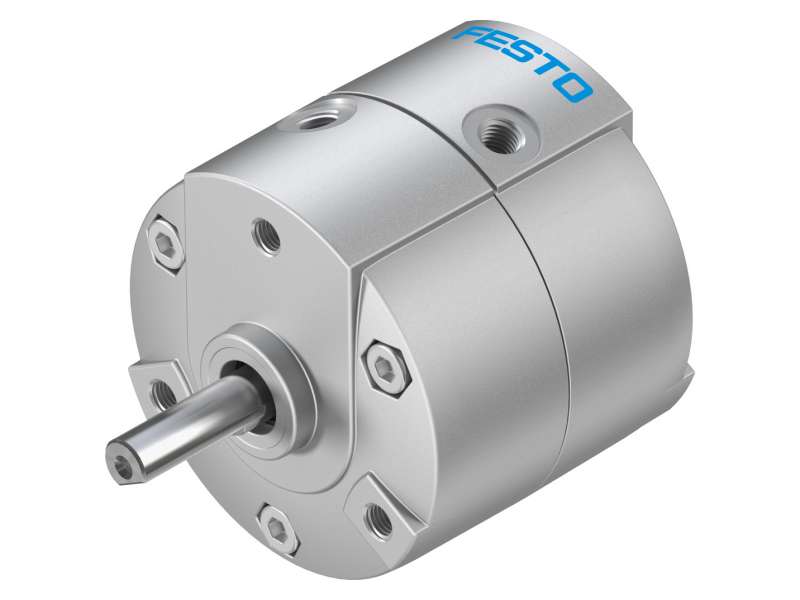

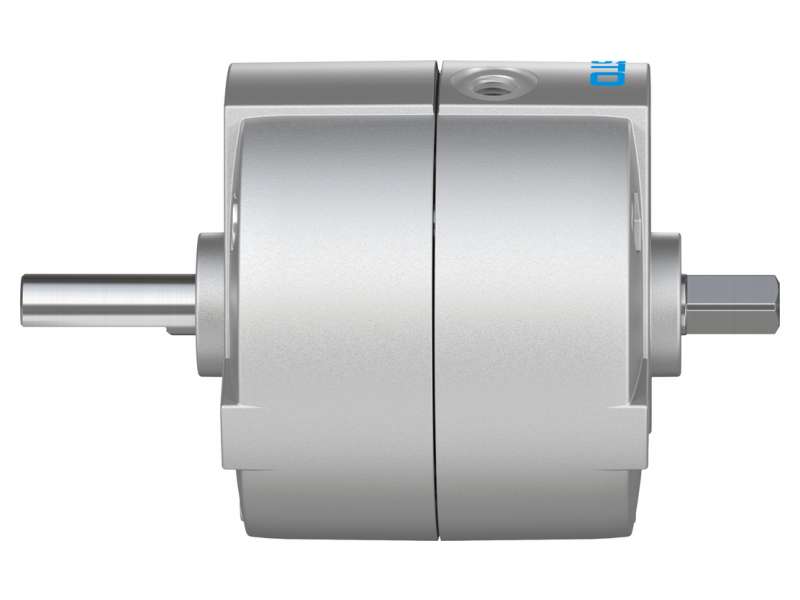

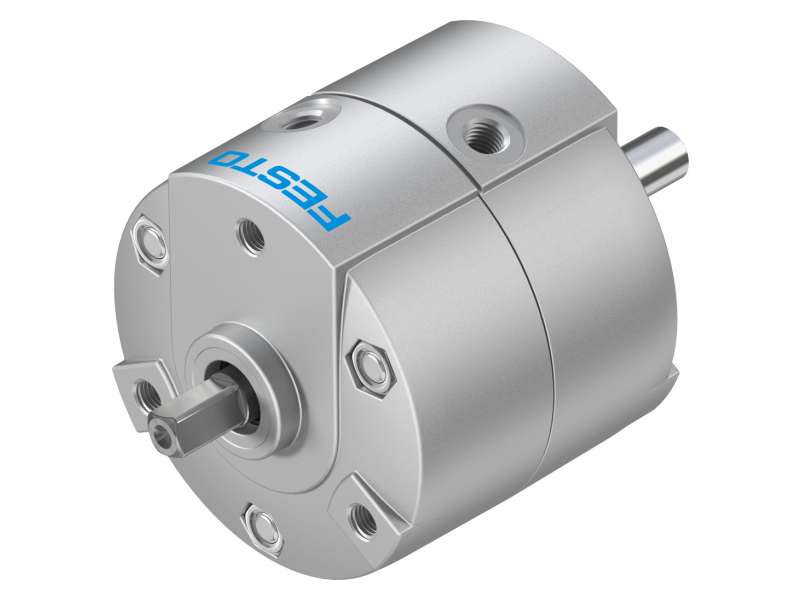

Festo Quarter turn actuator DRVS-12-270-P-EX4 ; 2536489
Double-acting rotary vane actuator Lighter than other quarter turn actuators Fixed swivel angle, adjustable swivel angle possible with the help of accessories Housing...
Cena na upit
- Double-acting rotary vane actuator
- Lighter than other quarter turn actuators
- Fixed swivel angle, adjustable swivel angle possible with the help of accessories
- Housing protected against splash water and dust
- Size
- 12
- Cushioning angle
- 0.5 deg
- Swivel angle
- 0 deg ... 270 deg
- Type code
- DRVS
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Rotary vane
- Position sensing
- For proximity sensor
- Symbol
- 00991265
- Variants
- Spigot shaft
- Operating pressure
- 2.5 bar ... 8 bar
- Max. swivel frequency at 6 bar
- 2 Hz
- ATEX category gas
- II 2G
- Type of ignition protection for gas
- Ex h IIC T4 Gb X
- ATEX category for dust
- II 2D
- Type of (ignition) protection for dust
- Ex h IIIC T120°C Db X
- Explosive ambient temperature
- 0°C <= Ta <= +60°C
- Explosion prevention and protection
-
Zone 1 (ATEX)
Zone 22 (ATEX)
Zone 2 (ATEX)
Zone 21 (ATEX) - Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Ambient temperature
- 0 °C ... 60 °C
- Max. axial force
- 20 N
- Max. radial force
- 25 N
- Theoretical torque at 6 bar
- 1 Nm
- Permissible mass moment of inertia
- 0.005 kgm²
- Product weight
- 150 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS-compliant
- Drive shaft material
- High-alloy stainless steel
- Seals material
- TPE-U(PU)
- Housing material
-
Painted
Die-cast aluminum
-
DRVS ENUS
