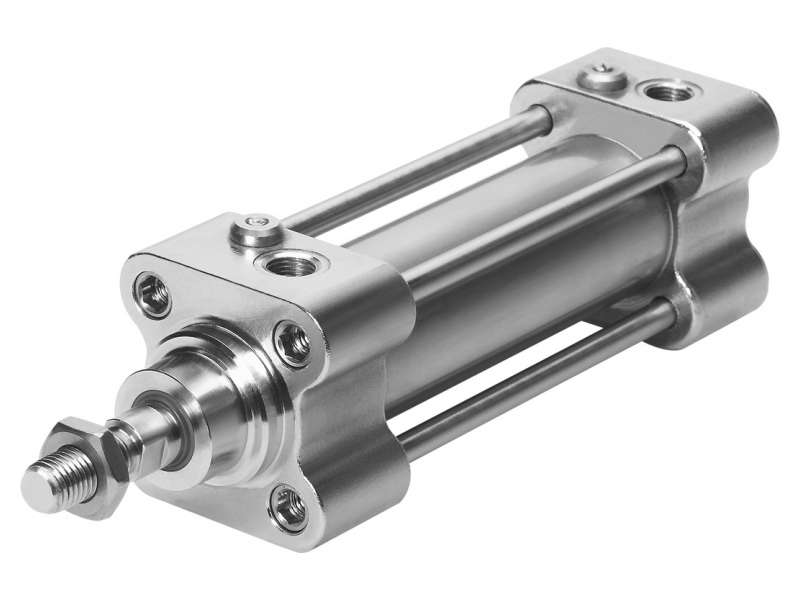

Festo ISO cylinder CRDNG-32- -PPV-A ; 160884
Corrosion resistant against aggressive ambient conditions. Variant models: through piston rod; heat-resistant version. CRDNG-32- -PPV-A Part no. 160884 ISO 15552...
Cena na upit
Corrosion resistant against aggressive ambient conditions. Variant models: through piston rod; heat-resistant version.
CRDNG-32- -PPV-A Part no. 160884
- ISO 15552 (ISO 6431, VDMA 24562)
- Corrosion resistant against aggressive ambient conditions
- Easy-to-clean design
- Variants: through piston rod, heat-resistant design
- Nose mounting, mounting via accessories
- Magnetic piston for position sensing
- Maritime classification
- See certificate
- Stroke
- 10 mm ... 2000 mm
- Piston diameter
- 32 mm
- Type code
- CRDNG
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
- Design
-
Piston rod
Piston - Position sensing
- For proximity sensor

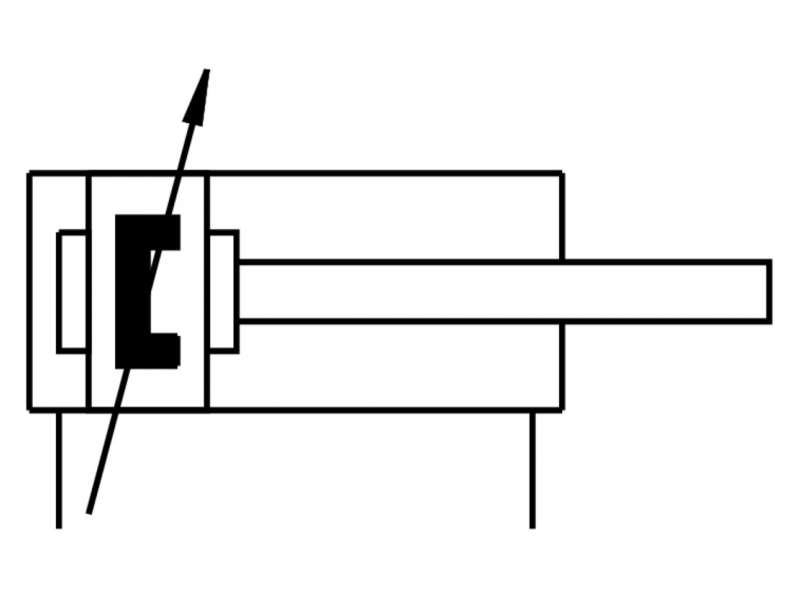

- Symbol
- 00991235
- Operating pressure
- 0.6 bar ... 10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C ... 80 °C
- Cushioning length
- 19 mm
- Theoretical force at 6 bar, retracting
- 415 N
- Theoretical force at 6 bar, advancing
- 483 N
- Additional weight per 10 mm stroke
- 20 g
- Basic weight with 0 mm stroke
- 1045 g
- Type of mounting
-
With accessories
With internal thread
Optionally: - Pneumatic connection
- G1/8
- Cover material
- Cast stainless steel
- Seals material
- TPE-U(PU)
- Housing material
- High-alloy stainless steel
- Piston rod material
- High-alloy stainless steel
-
160884datasheet
