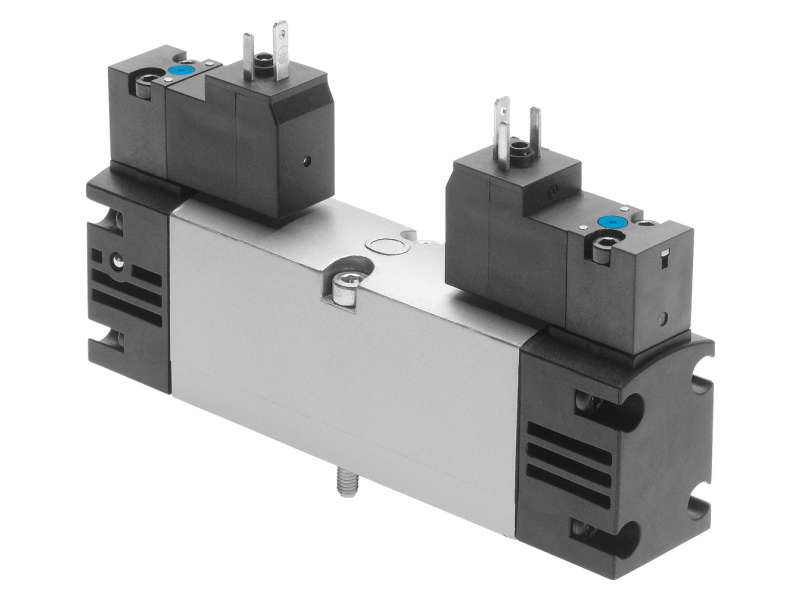

Festo Air solenoid valve VSVA-B-B52-H-A1-2AC1 ; 547174
Air solenoid valve VSVA-B-B52-H-A1-2AC1 ISO valves to ISO 15407-1 with individual plug. VSVA-B-B52-H-A1-2AC1 Part no. 547174 Corresponds to ISO 15407-1 and to ISO...
Cena na upit
Air solenoid valve VSVA-B-B52-H-A1-2AC1
ISO valves to ISO 15407-1 with individual plug.
VSVA-B-B52-H-A1-2AC1 Part no. 547174
- Corresponds to ISO 15407-1 and to ISO 15218 for pilot valve with interface
- Electrical connection via type C plug
- Robust metal housing
- Manifold assembly with mixed sizes possible
- Valve function
- 5/2, bistable
- Lap
- Overlap
- Actuation type
- Electrical
- Valve size
- 26 mm
- Standard nominal flow rate
- 1100 l/min
- Pneumatic working port
-
G1/4
Sub-base, size 26 mm as per ISO 15407-1
Size 01 sub-base as per VDMA 24563 - Operating voltage
- 110V AC
- Operating pressure
- 2 bar ... 10 bar
- Design
- Piston gate valve
- Degree of protection
-
IP65
NEMA 4 - Nominal width
- 9 mm
- Type code
- VSVA
- Exhaust air function
- With flow control option
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
-
ISO 15407-1
VDMA 24563 - Manual override
- Non-detenting
- Type of control
- Pilot-controlled
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible

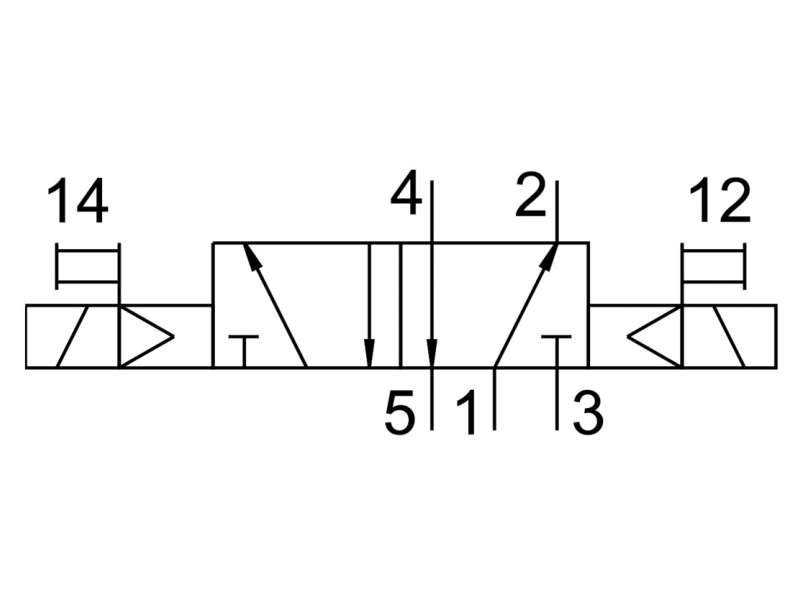

- Symbol
- 00991005
- Signal status display
- LED
- Flow rate of pneumatic valve
- 1400 l/min
- Flow rate of pneumatic valve on individual sub-base
- 1100 l/min
- Optimized flow rate of pneumatic valve pneumatically concatenated flow
- 1100 l/min
- Changeover time
- 18 ms
- Duty cycle
- 100%
- Coil characteristics
- 110 V AC: 50/60 Hz, initial power 2.9 VA, holding power 2.1 VA
- Permissible voltage fluctuations
- -15 % / +10 %
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Temperature of medium
- -5 °C ... 50 °C
- Relative air humidity
- 0 - 90 %
- Noise level
- 85 dB(A)
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C ... 50 °C
- Max. tightening torque for valve mounting
- 2 Nm
- Product weight
- 305 g
- Electrical connection
-
Form C
as per DIN EN 175301-803
With PE conductor - Type of mounting
- On sub-base
- Auxiliary pilot air port 12
- Sub-base, size 26 mm as per ISO 15407-1
- Auxiliary pilot air port 14
- Sub-base, size 26 mm as per ISO 15407-1
- Pilot exhaust air port 82/84
-
Not ducted as per standard
Ducted - Pneumatic connection 1
- Sub-base, size 26 mm as per ISO 15407-1
- Pneumatic connection 2
- Sub-base, size 26 mm as per ISO 15407-1
- Pneumatic connection 3
- Sub-base, size 26 mm as per ISO 15407-1
- Pneumatic connection 4
- Sub-base, size 26 mm as per ISO 15407-1
- Pneumatic connection 5
- Sub-base, size 26 mm as per ISO 15407-1
- Pilot interface
- as per ISO 15218
- Note on materials
- RoHS-compliant
- Seals material
-
HNBR
NBR - Housing material
- Die-cast aluminum
- Material of screws
-
Steel
Galvanized
-
547174datasheet
-
ISO15407VSVA ENUS
