EUCHNER Straight actuator for safety switch CTP/CTA, A-C-H-G-SST-126015 ACTUATOR; 126015

EUCHNER Straight actuator for safety switch CTP/CTA, A-C-H-G-SST-126015 ACTUATOR; 126015

Straight actuator for safety switch CTP/CTA, A-C-H-G-SST-126015 ACTUATOR; 126015...

Brand: EUCHNER
Šifra: 126015
Dostupnost: Proveriti dostupnost
Cena na upit

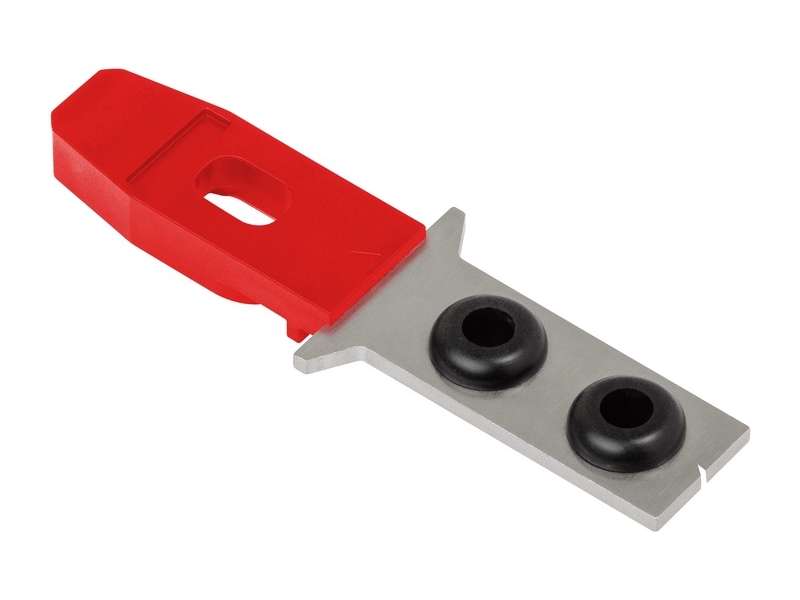

Straight actuator for safety switch CTP/CTA, A-C-H-G-SST-126015 ACTUATOR; 126015

Straight actuator for safety switch CTP/CTA

  • Straight actuator

  • Two safety screws included



Straight actuator

The straight actuator is used on sliding doors or hinged doors with door radii greater than 300 mm. Safety screws prevent unscrewing of the actuators.



The safety screws included can be inserted with a normal tool, but cannot be removed again.



Approvals

c_UL_us_E155795_3/11

Electrical connection values

Power supply Inductive via read head

Mechanical values and environment

Mechanical life 1 x 10⁶
Overtravel 5 mm
Degree of protection IP67/IP69/IP69K
Ambient temperature -20 ... +55 °C
Material
Mounting Stainless steel
Bush NBR
Encapsulation fiber reinforced plastic, red
Locking force Fmax 3900 N
Locking force FZh 3000 N



  • EUCHNER 126015

    EUCHNER 126015
