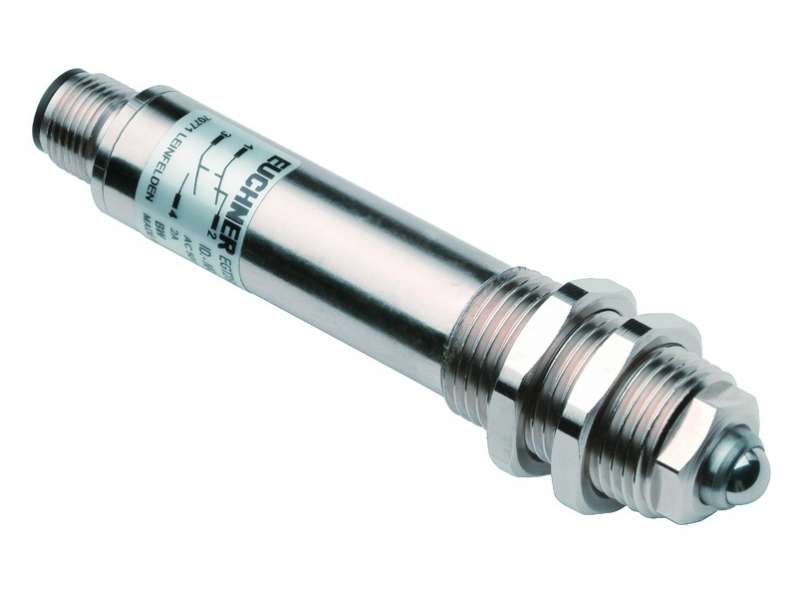

EUCHNER Precision single hole fixing limit switch EGT2SEM4 (Order no. 052504)
Precision single hole fixing limit switch EGT2 , with snap-action switching element, Plunger material stainless steel, Any installation orientation...
Cena na upit
Precision single hole fixing limit switch EGT2 , with snap-action switching element, Plunger material stainless steel, Any installation orientation
Approvals
Electrical connection values
| Rated insulation voltage Ui | 50 V |
| Rated impulse voltage Uimp | 2.5 kV |
| Utilization category | |
| DC-13 | 1 A 24 V |
| AC-15 | 2 A 30 V |
| Short circuit protection according to IEC 60269-1 | 2A gG |
| Switching voltage | |
| min. | 12 V |
| Switching current | |
| min. at 24 V | 10 mA |
Mechanical values and environment
| Approach speed | 0.01 ... 10 m/min |
| Connection type | Plug connector M12 |
| Number NC contacts | 1 |
| Number of NO contacts | 1 |
| Design | Thread M18 x 1 |
| Actuating element | Ball plunger |
| Actuating force | 24 N |
| Installation orientation | any |
| Mechanical life | 1 x 10⁶ |
| Switching principle | Snap-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -5 ... +60 °C |
| Material | |
| Contact | Fine silver, gold plated |
| Sleeve | Brass, nickel plated |
| Threaded section | Brass, nickel plated |
| Repeat accuracy (absolute) | ±0.01 mm |
