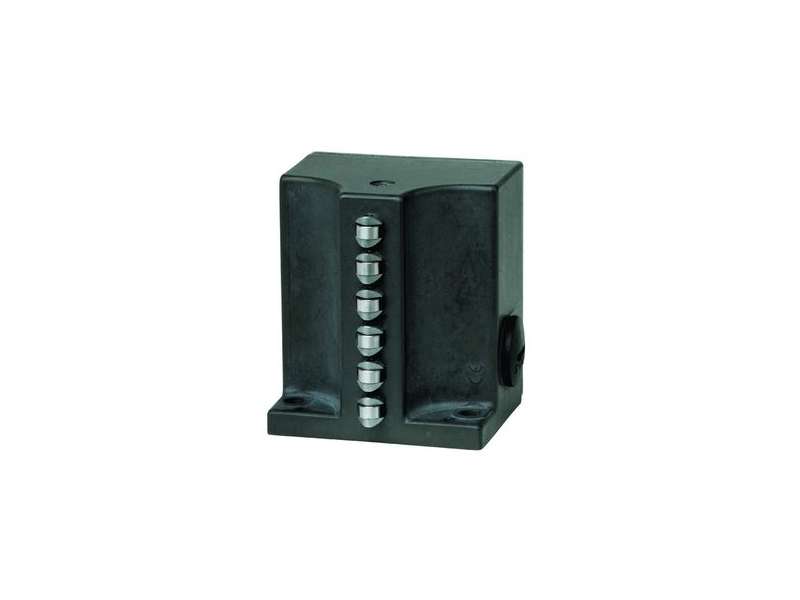

EUCHNER Multiple limit switch SN02D12-502-MC1688 ; 082450
Multiple limit switch SN02D12-502-MC1688 ; 082450 Series SN... 12 mm, mechanical Plunger spacing 12 mm Upright housing, small flange Degree of protection IP67 according...
Cena na upit
Multiple limit switch SN02D12-502-MC1688 ; 082450
Series SN... 12 mm, mechanical
- Plunger spacing 12 mm
- Upright housing, small flange
- Degree of protection IP67 according to IEC 60529

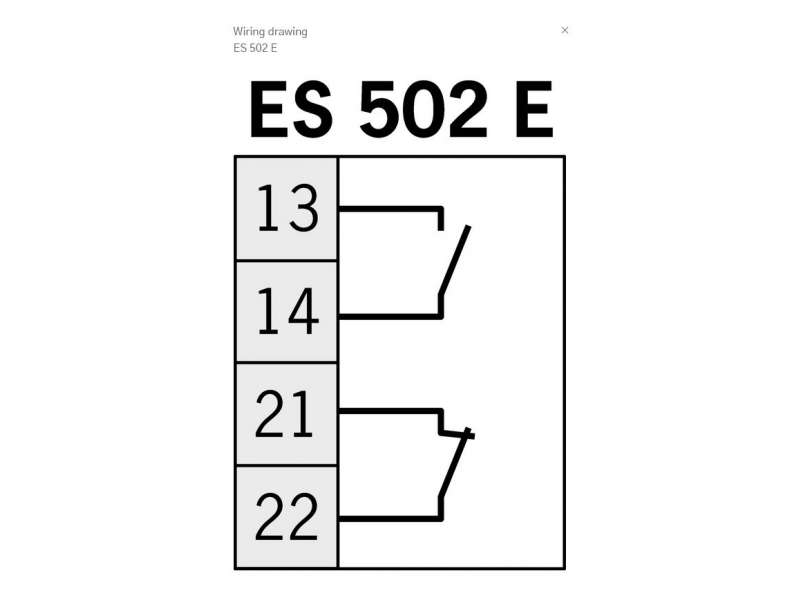

Switching element
|
ES 502 E |
Snap-action switching contact 1 NC + 1 NO |
Electrical connection ratings
| Connection cross-section | 0.34 ... 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Short circuit protection according to IEC 60269-1 | 8A gG |
| Switching current | |
| min. at DC 12V | min. 10 mA |
| Utilization category | |
| DC-13 | 6A 24V |
| AC-12 | 8A 250V |
| AC-15 | 6A 230V |
| rated thermal current Ith | 8 A |
Mechanical values and environment
| Ambient temperature | -5 ... +80 °C |
| Approach speed | 0.01 ... 40 m/min |
| Number of switching elements | 2 |
| Number of NO contacts | 2 |
| Connection | 2 x M20 x 1.5 |
| Degree of protection | IP67 |
| Design | upright |
| Installation orientation | any |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Die-cast aluminum, anodized |
| Actuating element | Chisel plunger |
| Actuating force | min. 20 N |
| Mechanical life | 30 x 10⁶ |
| Number NC contacts | 2 |
| Plunger spacing | 12 mm |
| Switching principle | Snap-action switching contact |
| Contact bounce time | < 3ms |
| Operating point accuracy | ± 0.002 |
| Contact closing time | < 4 ms |
Miscellaneous
| C number | |
| C1688 |
