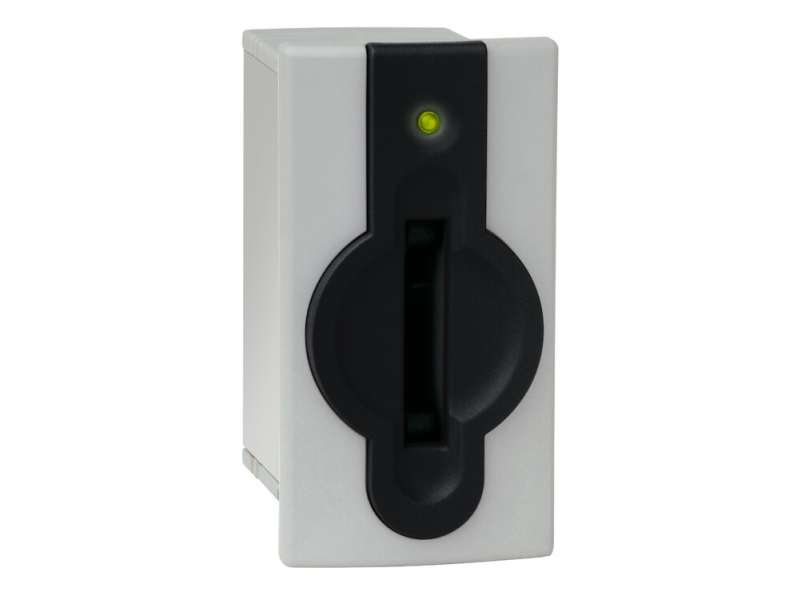

EUCHNER Electronic-Key adapter EKS Light FSA compact (supports all operating states) ; 112207

EKS-A-IPLA-G01-ST05/04 Electronic-Key adapter with 4-bit parallel interface Simple connection Read-only system Electronic-Key adapter and evaluation electronics...

Brand: EUCHNER
Šifra: 112207
Dostupnost: Proveriti dostupnost
Cena na upit

         EKS-A-IPLA-G01-ST05/04


  • Electronic-Key adapter with 4-bit parallel interface
  • Simple connection
  • Read-only system
  • Electronic-Key adapter and evaluation electronics in one housing
  • Reliable retention of the Electronic-Key, even if there is heavy vibration
  • Internal evaluation of the data from the Electronic-Key
  • Output of the access level via 4-bit parallel interface
  • Has all operating states
  • Connection to PLC
  • Version FSA (For Safety Applications)

Approvals

Zulassung EACRichtlinie CEZulassung c_UR_us Class 2

Mechanical values and environment

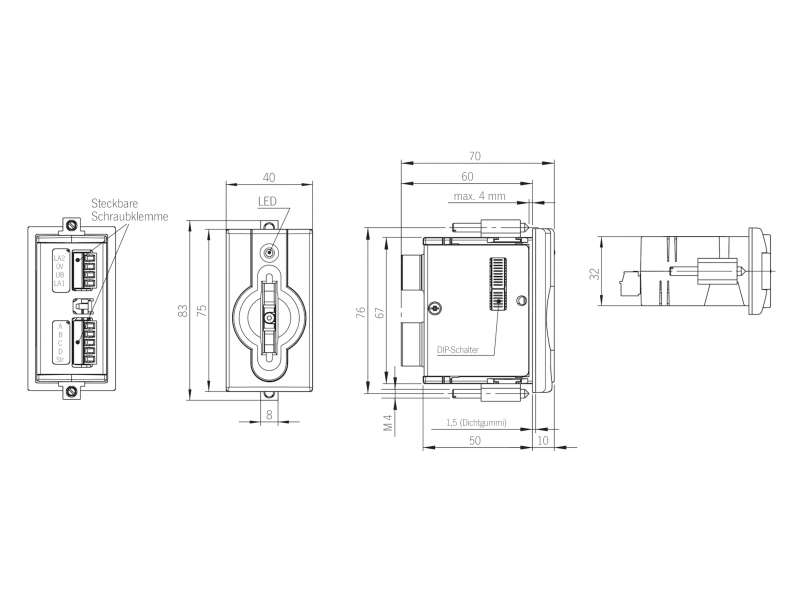

Mounting cut-out
according to DIN EN 61554 33x68 mm
Housing material
Housing PA6-GF30 gray
Ambient temperature -20 ... 70 °C
Degree of protection IP67 in installed state (only access side)
Mounting method On the front

Electrical connection ratings

LED display
Green Operational
Yellow Key in operating distance
Red Fault
Connection cross-section 0,14 ... 1,5 mm²
  Parameters for floating semiconductor switching contact LA
Switching voltage 0 ... 24 ... 30 V
Switching current 1 ... 10 ... 50 mA In event of short circuit the output is shut down
Utilization category according to EN 60947-5-1
AC-15 24V 50mA
AC-12 24V 50mA
DC-12 24V 50mA
Utilization category according to EN 60947-5-2
DC-13 24V 50mA

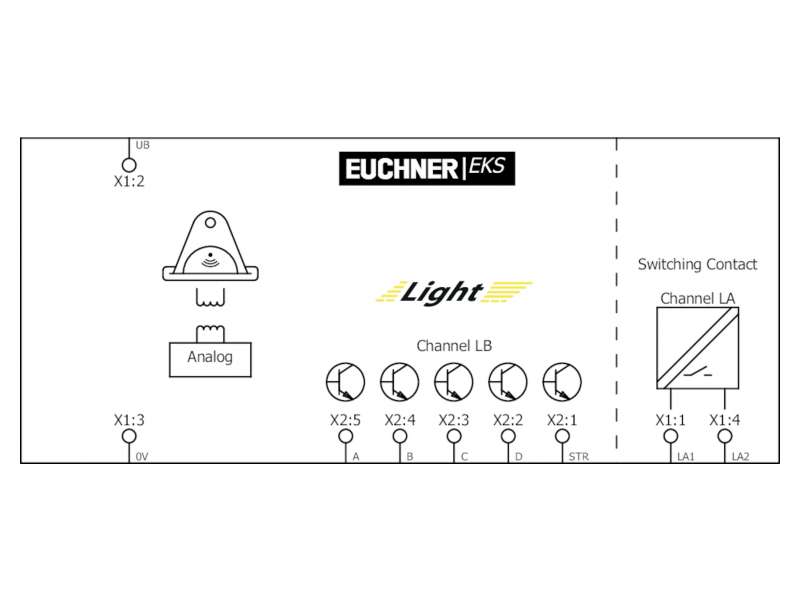

  Interface and signaling
Switching voltage UB-2 ... UB V
Switching current 1 ... 10 ... 50 mA High signal
  Power supply
Operating voltage DC 9 ... 24 ... 28 V DC
Current consumption max.70 mA

Interface, bus

  Interface and signaling
Data interface 4-bit parallel plus strobe, binary coded via High/Low level

Other

  Parameters for floating semiconductor switching contact LA
Additional feature 35 Resistance in switched-on state in Ohm
  max.1 Capacitive load on output in µF
  • 50373

    50373

  • 399157

    399157
