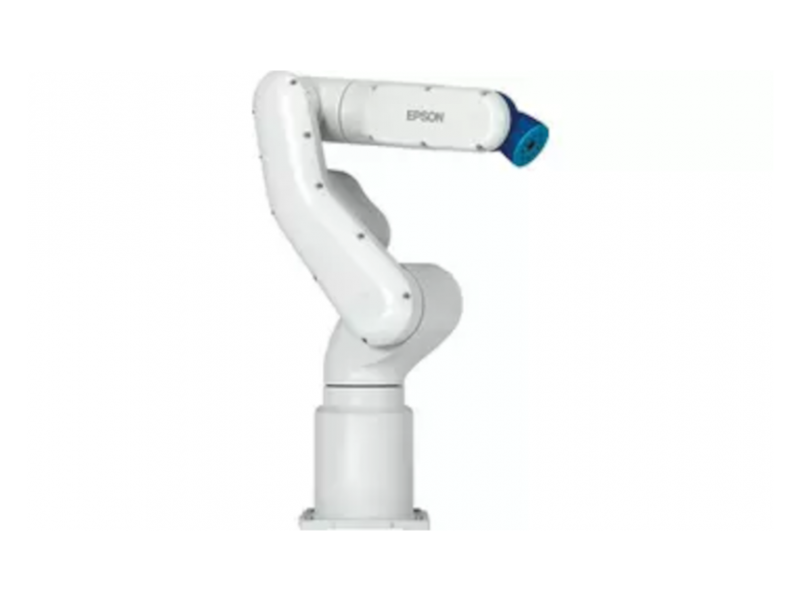

Epson ProSix VT6-A901S/RC+ 8
Kompaktan robot sa šest osa Pristupačno Jednostavan dizajn i niska ukupna cena posedovanja Jednostavno podešavanje Lagana motorna jedinica bez baterije...
Cena na upit
Kompaktan robot sa šest osa
- Pristupačno
- Jednostavno podešavanje
- Fleksibilnost
- Kompaktno all-in-one rešenje
- Ušteda energije
| Razvojna okolina | EPSON RC+ 7.0, EPSON RC+ 8.0 Basic, EPSON RC+ 8.0 Lite |
| Programski jezik | Epson SPEL+ (multitasking possible) |
| Konstrukcija | ProSix (6 axis robot) |
| Opcije hardvera | Fieldbus I/O master (DeviceNet, Profi bus, Ethernet/IP, 1 additional card each possible), Fieldbus I/O slave (DeviceNet, Profi bus, CC-Link, Ethernet IP, 1 additional card each possible), Teach pendant, operator pendant |
| Opcije softvera | Epson RC+ 8.x API License, Epson RC+ 8.x Express Advanced License, Epson RC+ 8.x Fieldbus Master License, Epson RC+ 8.x GUI Builder License, Epson RC+ 8.x OPC UA for Robotics Part1 License, Epson RC+ 8.x Part Feeding License, Epson RC+ 8.x Vision Guide License |
| Nosivost | nom.3 kg, maks.6 kg |
| Reach | +/-900 mm |
| Repeatability | +/-0,1 mm |
| Maks. brzina rada | Osa 1: +/-166,2 °/s, Osa 2: +/-122,5 °/s, Osa 3: +/-141,2 °/s, Osa 4: +/-268,7 °/s, Osa 5: +/-296,8 °/s, Osa 6: +/-293,2 °/s |
| Dozvoljeni moment tromosti | nom.0,1 kg*m², maks.0,3 kg*m² |
| Težina | 40 kg |
| Upravljačka jedinica | Ugrađeni kontroler |
| Vrsta montaže | Zid, Plafon, Postolje |
| Opcija, prostor bez prašine | ISO 4 |
| IP protection class | IP20, IP67 |
| Strujni i signalni kabl | 5m |
| Certifikati | Machinery Directive: EN 60204-1, EMC Directive: EN 55011, RoHS Directive: 2002/92/EC, CE Mark, KC Mark |
| Power/Voltage | 100-240V AC Single Phase |
| Power Consumption | 1,2 kVA |
| Okolna temperatura | 5 ° C - 40 ° C |
| Relativna vlažnost | 10 % - 80 % (bez kondenzacije) |
-
Broshure VT series
-
VT Robot UserManual
