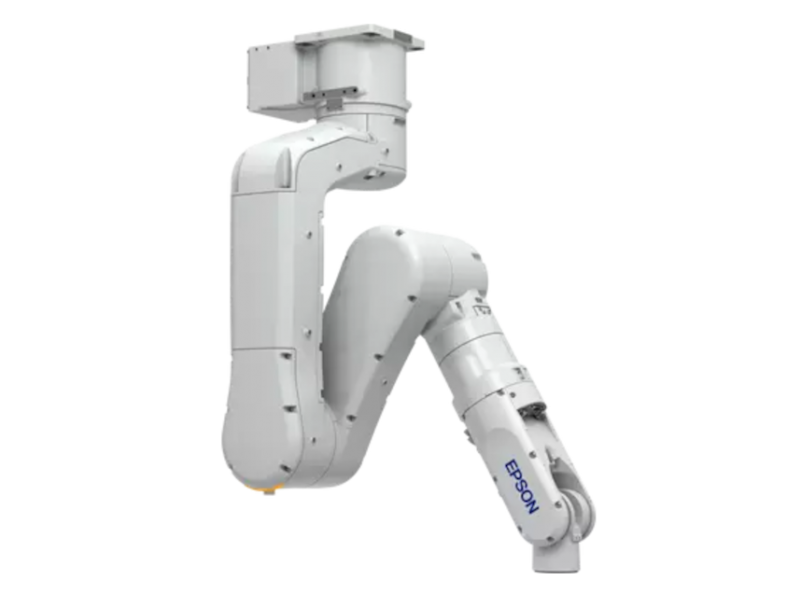

Epson ProSix N6-A850SR/RC700-A/RC+ 8
Visok učinak u uskim prostorima Veliki domet do 850 mm Nosivost do 6 kg Jedinstveno konstruisana sklopiva ruka Obavlja zadatke u uskim prostorima efikasnije od...
Cena na upit
Visok učinak u uskim prostorima
- Veliki domet
- Nosivost
- Jedinstveno konstruisana sklopiva ruka
- Šuplja ruka
- Jednostavno podešavanje
| Razvojna okolina | EPSON RC+ 7.0, EPSON RC+ 8.0 Basic, EPSON RC+ 8.0 Lite |
| Programski jezik | Epson SPEL+ (multitasking possible) |
| Konstrukcija | ProSix (6 axis robot) |
| Opcije hardvera | Expansion I/O (32/32, up to 4 additional cards), Fieldbus I/O master (DeviceNet, Profi bus, Ethernet/IP, 1 additional card each possible), Fieldbus I/O slave (DeviceNet, Profi bus, CC-Link, Ethernet IP, 1 additional card each possible), Pulse generating (4 channels per card, up to 4 additional cads), RS-232C (2 channels per card, up to 2 additional cards), RS-232C (4 channels per card, up to 2 additional cards), Teach pendant, operator pendant |
| Opcije softvera | Epson RC+ 8.x API License, Epson RC+ 8.x Conveyor Tracking License, Epson RC+ 8.x Express Advanced License, Epson RC+ 8.x External Control Point License, Epson RC+ 8.x Fieldbus Master License, Epson RC+ 8.x GUI Builder License, Epson RC+ 8.x OCR License, Epson RC+ 8.x OPC UA for Robotics Part1 License, Epson RC+ 8.x Part Feeding License, Epson RC+ 8.x Safety Function License (SLS/SLP), Epson RC+ 8.x Vision Guide License |
| Nosivost | nom.3 kg, max.6 kg |
| Dohvat | +/-860 mm |
| Ponovljivost | +/-0,03 mm |
| Maks. operativni opseg |
J1: +/-180 °, J2: +/-180 °, J3: +/-180 °, J4: +/-200 °, J5: +/-125 °, J6: +/-360 ° |
| Maks. operativna brzina |
J1: +/-326 °/s, J2: +/-326 °/s, J3: +/-444 °/s, J4: +/-444 °/s, J5: +/-450 °/s, J6: +/-537 °/s |
| Dozvoljeni moment tromosti | max.0,42 kg*m² |
| Električno korisničko ožičenje | 1x D-Sub 15 igla, Equivalent to 8 pin (RJ45) Cat.5e |
| Pneumatsko korisničko ožičenje | 2x6mm Ø |
| Težina | 64 kg |
| Upravljačka jedinica | RC700-A |
| Vrsta montaže | Plafon |
| Opcija, prostor bez prašine | ESD, ISO 5 |
| IP stepen zaštite | IP20 |
| Strujni i signalni kabl | 3m, 5m, 10m, 15m, 20m |
| Certifikati | EMC Directive: EN 55011, CE Mark, KCs Mark |
| Napon napajanja | 200-240V AC Single Phase |
| Potrošnja energije | 0,6 kVA |
| Okolna temperatura | 5 ° C - 40 ° C |
-
