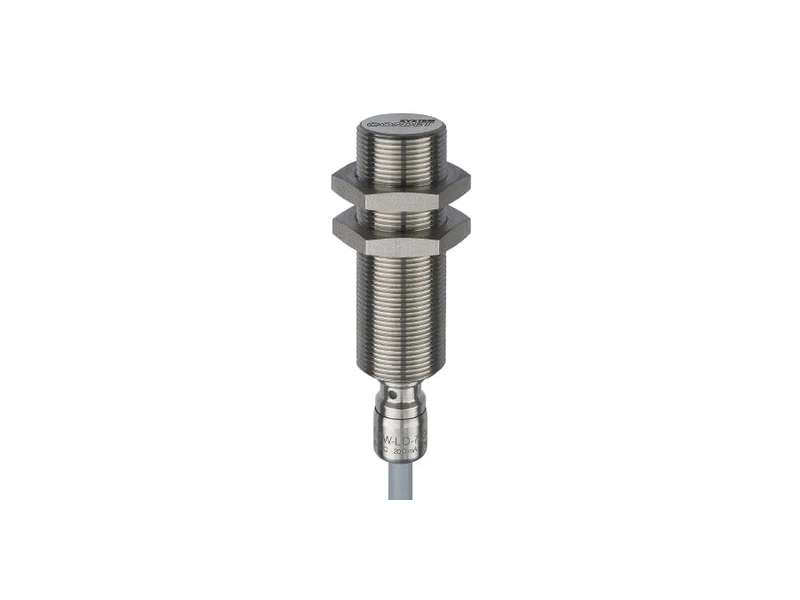

CONTRINEX Washdown Full Inox Series 700 M18 Non embeddable 20 mm, DW-LD-713-M18; 320-420-289
Washdown Full Inox Series 700 M18 Non embeddable 20 mm, DW-LD-713-M18; 320-420-289 TPE-S, 2 m, 3 wire, PNP|Normally Open (NO)/IO-Link...
Cena bez pdv-a: 25.606,87 |
Cena sa pdv-om: 30.728,24 |
Washdown Full Inox Series 700 M18 Non embeddable 20 mm, DW-LD-713-M18; 320-420-289
TPE-S, 2 m, 3 wire, PNP|Normally Open (NO)/IO-Link
TPE-S, 2 m, 3 wire, PNP|Normally Open (NO)/IO-Link
| Operating range | 20 mm |
| Switching frequency max. | 200 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 60 bar |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | TPE-S, 2 m, 3 wire |
| Housing size [mm] | M18 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V4A |
| Temperature range | -25...+85°C |
| Sensor Height | 70.2 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
-
DW-Lx-71x-M18
