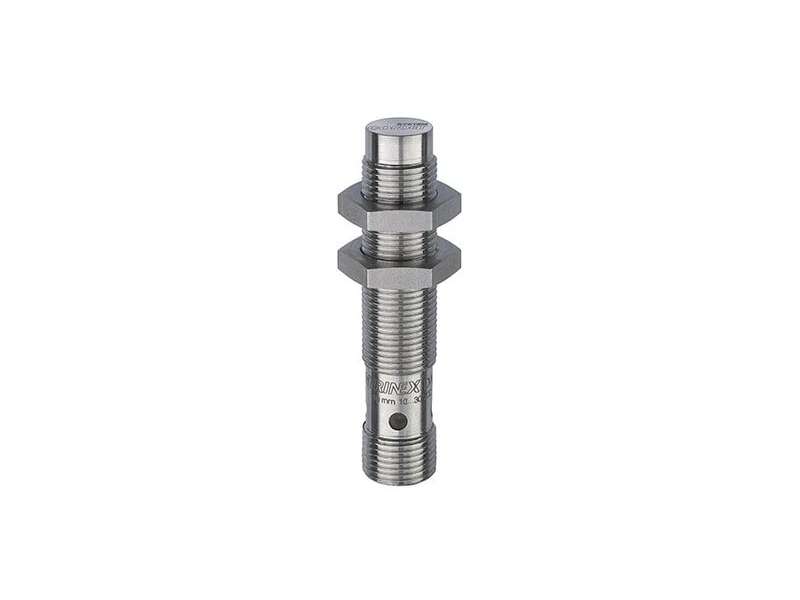

CONTRINEX Washdown Full Inox Series 700 M12 Non embeddable 10 mm, DW-LS-713-M12; 320-420-264
Washdown Full Inox Series 700 M12 Non embeddable 10 mm, DW-LS-713-M12; 320-420-264 M12 4-pin, PNP|Normally Open (NO)/IO-Link...
Cena bez pdv-a: 15.950,05 |
Cena sa pdv-om: 19.140,06 |
Washdown Full Inox Series 700 M12 Non embeddable 10 mm, DW-LS-713-M12; 320-420-264
M12 4-pin, PNP|Normally Open (NO)/IO-Link
M12 4-pin, PNP|Normally Open (NO)/IO-Link
| Operating range | 10 mm |
| Switching frequency max. | 400 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 80 bar |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | M12 4-pin |
| Housing size [mm] | M12 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V4A |
| Temperature range | -25...+85°C |
| Sensor Height | 60 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
-
DW-Lx-71x-M12
