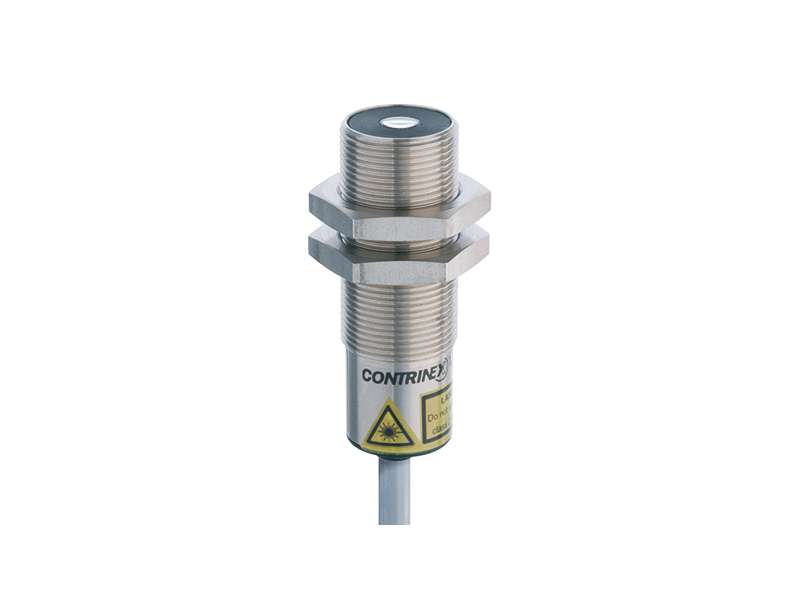

Standardni fotoelektrični senzor sa prinicipom rada kroz snop ( Through-beam). Senzor je dimenzija M18 mm, sa kućištem u IP67 stepenu zaštite. EMITTER je polaritet, a povezivanje se vrši PVC ,2m ,3-wire
Short Specifications
|
Operating principle
|
Through-beam
|
|
Light source
|
Laser class 2, red 660 nm
|
|
Housing size [mm]
|
M18
|
|
Sensitivity adjustment
|
3-turn pot.
|
|
Polarity
|
Emitter
|
|
Output
|
Test input
|
|
Interface
|
Standard output
|
|
Connection
|
PVC, 2 m, 3 wire
|
|
Supply voltage
|
10...36 VDC
|
|
Switching frequency max. [Hz]
|
5000
|
|
Housing material
|
Stainless-steel V2A
|
|
Temperature range
|
-10...50 °C
|
|
Enclosure rating (IP)
|
IP 67
|
-
LLx-1181L-00x
