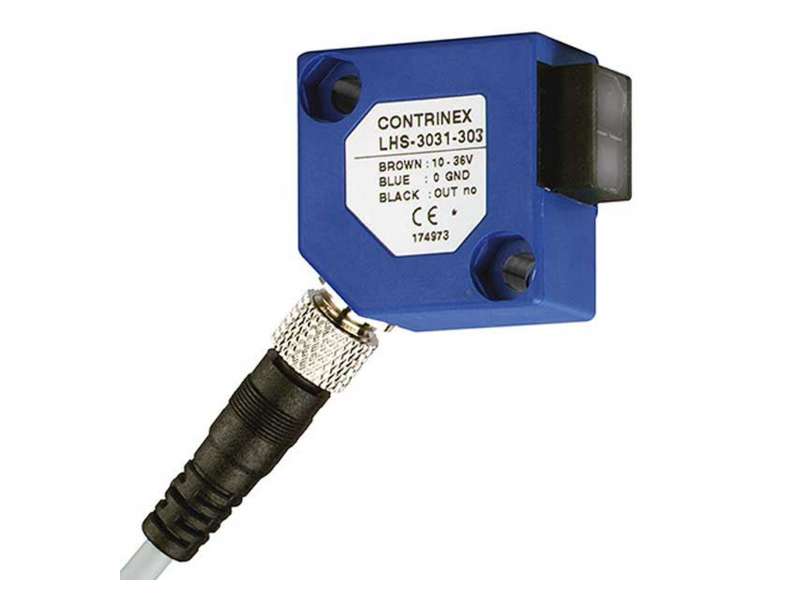

CONTRINEX Standard Background suppression 30 x 30 15...150 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm, LHK-3031-301
Standard Background suppression 30 x 30 15...150 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm, LHS-3031-303 PVC, 2 m, 3 wire, Light-on, PNP...
Cena bez pdv-a: 19.182,69 |
Cena sa pdv-om: 23.019,22 |
Standard Background suppression 30 x 30 15...150 mm PBTP (Crastin) 12 turn pot. LED, red 660 nm, LHS-3031-303
PVC, 2 m, 3 wire, Light-on, PNP
PVC, 2 m, 3 wire, Light-on, PNP
Short Specifications
LHS-3031-303
| Operating range | 15...150 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 10...36 |
| Polarity | PNP |
| Output | Light-on |
| Sensitivity adjustment | 12-turn pot. |
| Connection | M8 3-pin |
| Housing size [mm] | 30 x 30 |
| Enclosure rating | IP 67 |
| Housing material | PBTP (Crastin) |
| Temperature range | -25...+55°C |
| Light source | LED, red 660 nm |
| Interface | Standard output |
| Operating principle | Background suppression |
| Sensing range max. | 0 |
-
LHx-3031-30x
