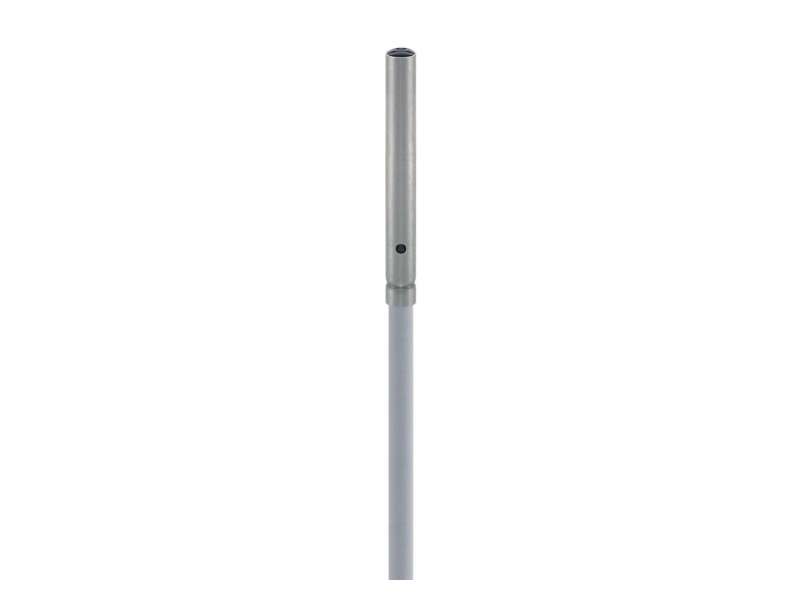

CONTRINEX Miniature Diffuse Ø 4 0...20 mm Stainless steel V2A No LED, red 680 nm, LTR-D04MA-NMK-301; 620-600-360
Contrinex Miniature Diffuse Ø 4 0...20 mm Stainless steel V2A No LED, red 680 nm; LTR-D04MA-NMK-301...
Cena bez pdv-a: 17.066,97 |
Cena sa pdv-om: 20.480,36 |
Contrinex Miniature Diffuse Ø 4 0...20 mm Stainless steel V2A No LED, red 680 nm; LTR-D04MA-NMK-301
LTR-D04MA-NMK-301
| Operating range | 0...20 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...30 |
| Polarity | NPN |
| Output | Light-on |
| Sensitivity adjustment | No |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | Ø 4 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+65°C |
| Light source | LED, red 680 nm |
| Interface | Standard output |
| Operating principle | Diffuse |
| Sensing range max. | 0...24 mm |
-
LTR-D04MA-NM
