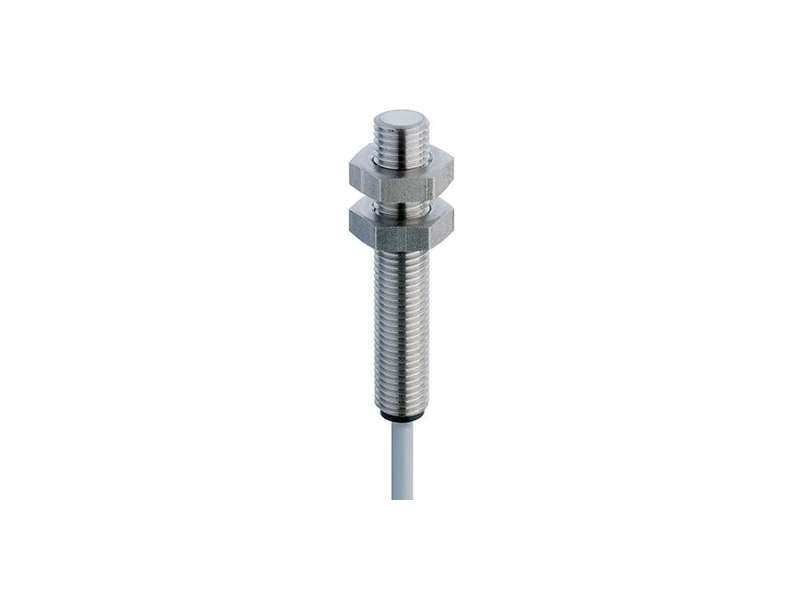

CONTRINEX Extra pressure Extra Distance Series 500 M8 Embeddable 2.5 mm, DW-AD-501-M8E; 330-020-090
Extra pressure Extra Distance Series 500 M8 Embeddable 2.5 mm, DW-AD-501-M8E; 330-020-090 PUR, 2 m, 3 wire, NPN|Normally Open (NO)...
Cena bez pdv-a: 12.845,80 |
Cena sa pdv-om: 15.414,96 |
Extra pressure Extra Distance Series 500 M8 Embeddable 2.5 mm, DW-AD-501-M8E; 330-020-090
PUR, 2 m, 3 wire, NPN|Normally Open (NO)
PUR, 2 m, 3 wire, NPN|Normally Open (NO)
| Operating range | 2.5 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 20 bar |
| Polarity | NPN |
| Output | Normally Open (NO) |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | M8 |
| Enclosure rating | IP 68 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+70°C |
| Sensor Height | 45 mm |
| Mounting | Embeddable |
| Interface | Standard output |
-
DW-AD-50x-M8E
