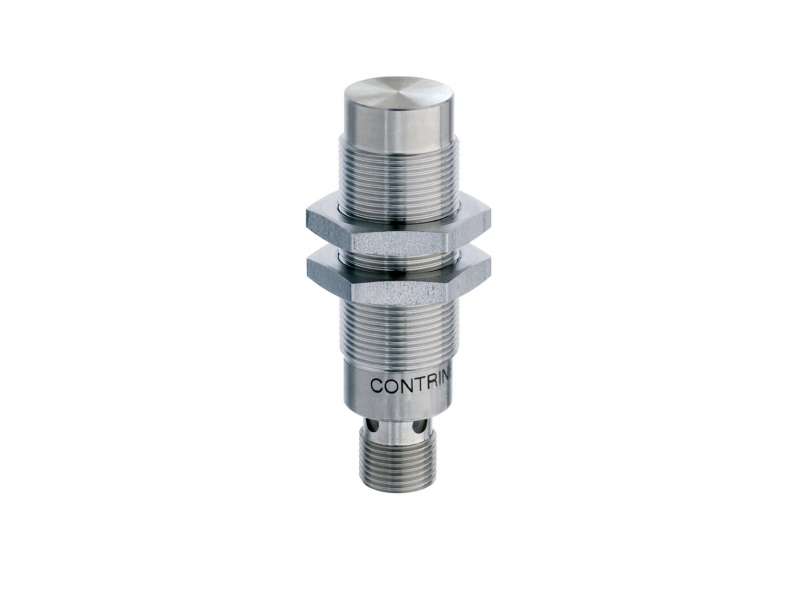

CONTRINEX DMS double sheet Smart 1...10 mm, IDSN-M18MM-NMS-A0; 330-320-206
DMS double sheet Smart 1...10 mm, IDSN-M18MM-NMS-A0; 330-320-206 M12 4-pin|Non-embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, 63.5 mm|Stainless-steel V2A This Smart...
Cena bez pdv-a: 86.200,00 |
Cena sa pdv-om: 103.440,00 |
DMS double sheet Smart 1...10 mm, IDSN-M18MM-NMS-A0; 330-320-206
M12 4-pin|Non-embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, 63.5 mm|Stainless-steel V2A
This Smart Double-Sheet Vertical Detection Sensor needs to be used with the PocketCodr Subscription Plan Applications
M12 4-pin|Non-embeddable, PNP|OSS1/IO-Link + OSS2/INPUT, 63.5 mm|Stainless-steel V2A
This Smart Double-Sheet Vertical Detection Sensor needs to be used with the PocketCodr Subscription Plan Applications
| Operating range | 1...10 mm |
| Switching frequency max. | 3 Hz |
| Supply voltage | 18...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Temperature range | +10...+60°C |
| Sensor Height | 63.5 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Sensing range max. | 0...10 mm |
-
Flyer Double-Sheet EN 24-Final-WEB
-
IDSN-M18MM-NMS-A0 Manual
-
IDSN-M18MM-NMS-A0
