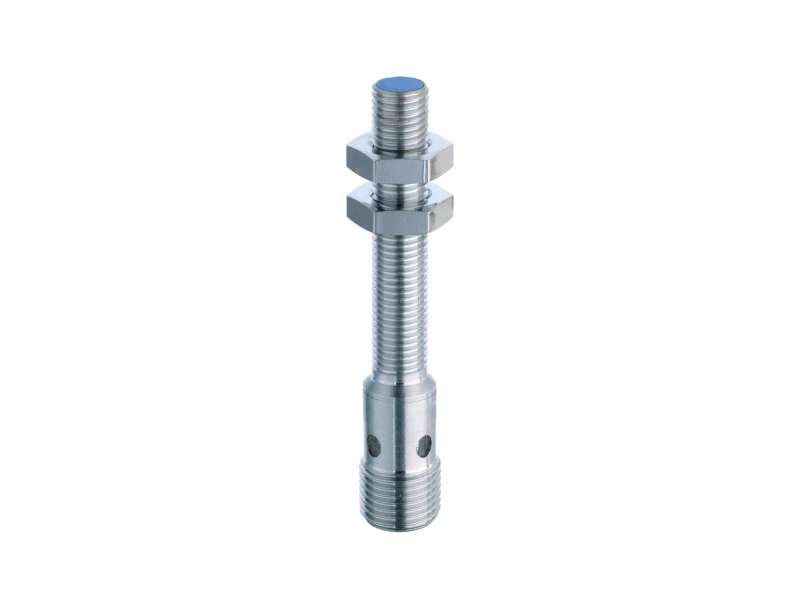

CONTRINEX Basic Smart 0...3 mm, ISWE-M8MP-NSS-A0; 330-020-534
Basic Smart 0...3 mm, ISWE-M8MP-NSS-A0; 330-020-534 M12 4-pin|Embeddable, PNP|OSS1/IO-Link + OSS2, 66 mm|Chrome-plated brass...
Cena bez pdv-a: 8.000,00 |
Cena sa pdv-om: 9.600,00 |
Basic Smart 0...3 mm, ISWE-M8MP-NSS-A0; 330-020-534
M12 4-pin|Embeddable, PNP|OSS1/IO-Link + OSS2, 66 mm|Chrome-plated brass
M12 4-pin|Embeddable, PNP|OSS1/IO-Link + OSS2, 66 mm|Chrome-plated brass
| Operating range | 0...3 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 18...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2 |
| Connection | M12 4-pin |
| Housing size [mm] | M8 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Resolution | 5 µm |
| Temperature range | -25...+70°C |
| Sensor Height | 66 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Sensing range max. | 0...3.3 mm |
-
ISWE-M8MP-NSS-A0
